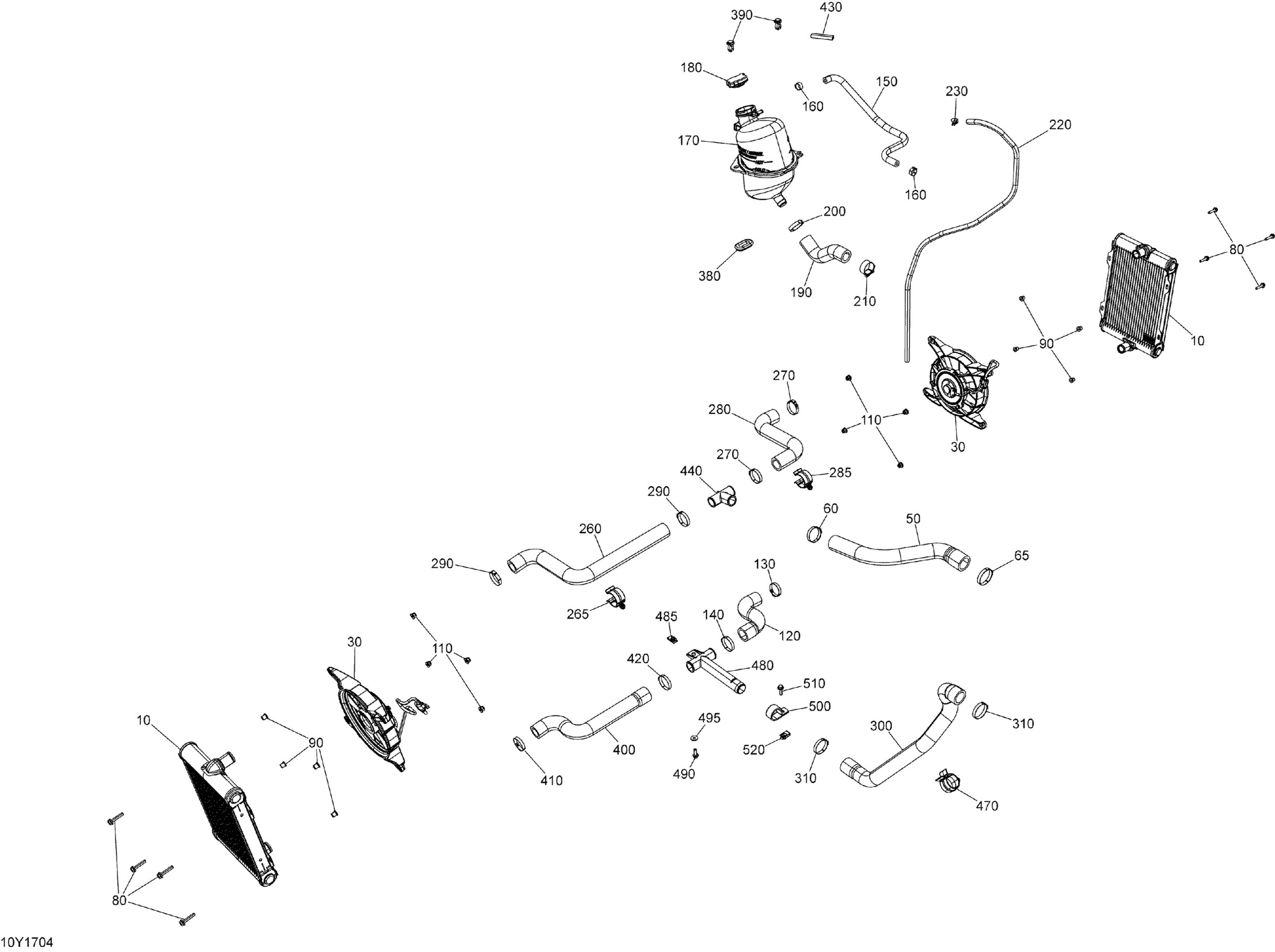

Can-Am F3, 2017 01- Cooling System - All Models Diagram

#

Description
Price

10

Radiator

709200529

$433.99

30

Fan

709200523

$289.99

50

Upper Formed Water Pump Hose

709200871

$32.99

60

Oetiker Gear Clamp 36.1MM

509000045

$8.29

65

Oetiker Gear Clamp

293650199

$9.69

80

Hex. Flange Screw M6 X 30

207663046

$1.69

90

Sleeve

709200553

$4.23

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

120

RH Lower Formed Radiator Hose

709200872

$22.49

130

Oetiker Gear Clamp 36.1MM

509000045

$8.29

140

Oetiker Gear Clamp

293650199

$9.69

150

Formed Hose

709200324

$30.99

160

Oetiker Gear Clamp

293650025

$3.09

170

Coolant Tank

709200749

$99.99

180

Pressure Cap

509000187

$29.49

190

Lower Formed Coolant Tank Hose

709200874

$38.99

200

Oetiker Gear Clamp

293650165

$5.39

210

Tridon Gear Clamp

293650051

$4.19

220

Polyurethane Hose 10000Mm Long

219704410

$56.99

230

Spring Clamp

414554800

$0.88

260

LH Upper Radiator Hose

709200875

$32.99

265

Clip

275500951

$8.47

270

Oetiker Gear Clamp 36.1MM

509000045

$8.29

280

RH Upper Radiator Hose Formed

709200876

$31.99

285

Clip

275500951

$8.47

290

Oetiker Gear Clamp 36.1MM

509000045

$8.29

300

Lower Formed Water Pump Hose

709200877

$63.49

310

Oetiker Gear Clamp

293650199

$9.69

380

Oblong Grommet

705003668

$5.79

390

Tuflok Plastic Rivet

293150230

$1.47

400

LH Lower Formed Radiator Hose

709200878

$32.99

410

Oetiker Gear Clamp 36.1MM

509000045

$8.29

420

Oetiker Gear Clamp

293650199

$9.69

430

Trim 1000Mm Long

219704354

$15.99

440

T-Fitting

509000219

$15.89

470

Retainer

275500590

$9.69

480

Manifold

709200580

$14.81

485

Panel Nut M6 X 1.0

250100198

$2.11

490

Hex. Flange Screw M6 X 20

207662044

$2.00

495

Flat Washer 6 mm

234062410

$0.77

500

Open Clamp

293750035

$4.29

510

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

520

Panel Nut M6 X 1.0

250100198

$2.11
