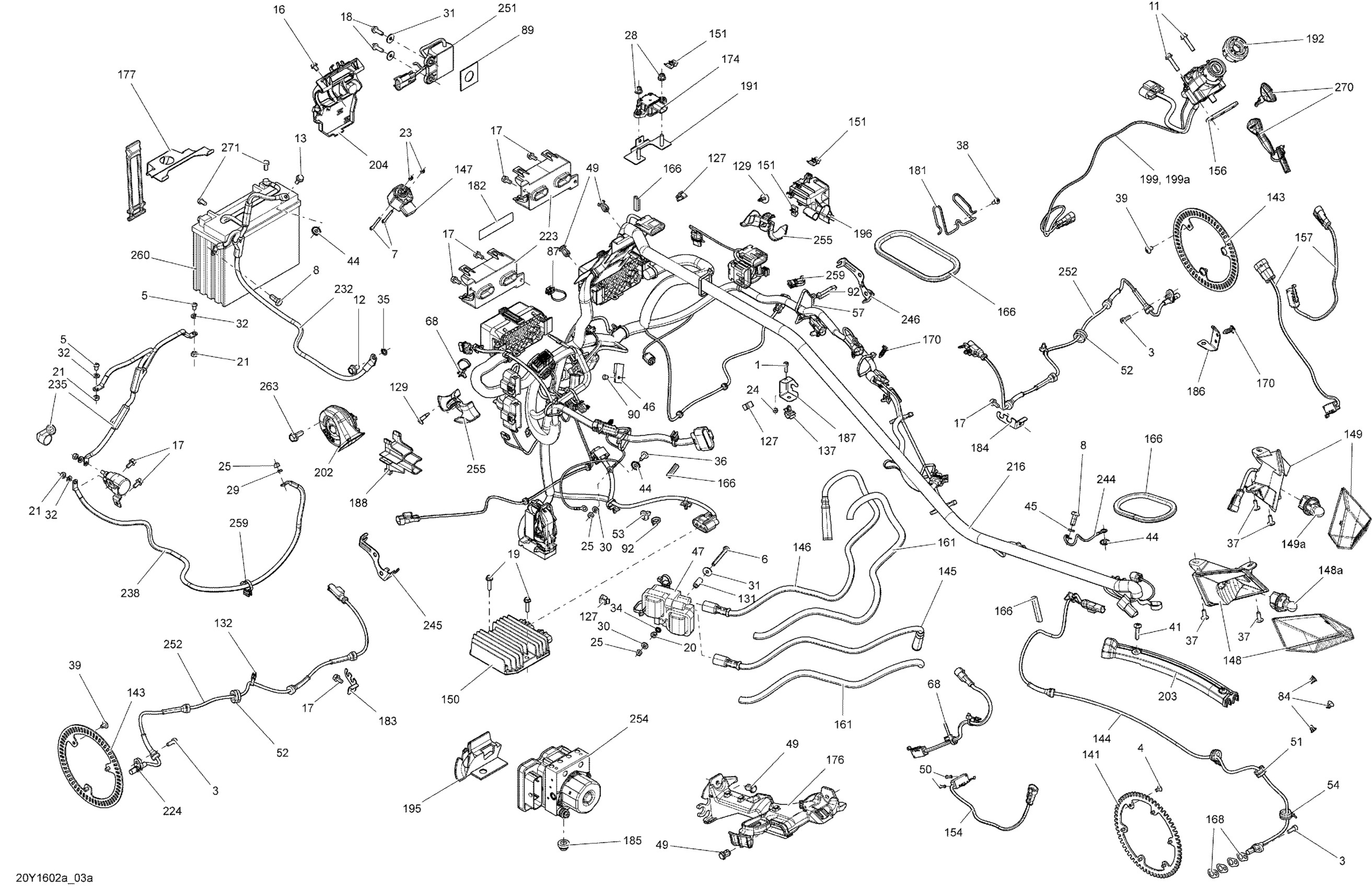

Can-Am ST, 2016 10- Electrical System - General Diagram

#

Description
Price

1

Socket Screw M5 X 16

205051644

$2.22

3

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

4

Socket Head Screw M5 X 10

205851036

$6.77

5

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

6

Hex. Screw M6 X 55

207065544

$2.11

7

Hex. Cap Screw

207144044

$1.01

8

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

11

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

12

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

13

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Hex. Forming Screw M6 X 10

210261050

$1.69

17

Hex. Flange Screw M6 X 12

210261250

$1.90

18

Hexagonal Head Screw

210262050

$2.11

19

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

20

Hex. Nut M6

232061414

$0.53

21

Hex. Nut M6

232061600

$1.15

23

Elastic Stop Nut M4

232541484

$0.74

24

Hex. Elastic Nut M5 | X

232551600

$1.15

25

Elastic Stop Nut M6

232561414

$0.55

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Stainless Flat Washer M6

234061600

$0.33

30

Black, Flat Washer 6 mm

234061670

$1.25

31

Flat Washer 6 mm

234062410

$0.77

32

Lock Washer Helical M6

234161601

$1.15

34

External Serrated Lock Washer 6 mm

234461608

$1.15

35

Serrated Lock Washer 8 mm

234481608

$1.15

36

Torx Truss Screw M6 X 16

250000348

$2.11

37

Torx Truss Screw M6 X 16

250000721

$1.69

38

Torx Screw M5 X 14

250000742

$1.47

39

Torx-truss M/s M6 X 10

250000995

$4.44

41

Torx Truss Screw M6 X 30

250000843

$2.11

44

Lock Washer Serrated M6

250200041

$1.15

45

Washer

250200111

$2.11

46

Clip

270000141

$11.49

47

Ignition Coil

278001546

$158.99

49

Tuflok Plastic Rivet

293150230

$1.47

50

Pop Rivet

293150150

$2.40

51

Grommet

293720084

$6.09

52

Grommet

293720095

$7.69

53

Mount Dart

293730040

$1.04

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

57

Tie Wrap 368 mm

293750008

$1.04

68

Tie-Rap 173 mm

293750009

$1.04

84

Tie Rap Mount

293750044

$2.49

87

Clip Tie-Rap

293750063

$8.75

89

Rubber Bumper

293830091

$8.29

90

Pop Rivet 3/16"

390402400

$0.35

92

Tie-Rap 180 mm

414115200

$0.11

127

Clip

414227300

$1.67

129

Tuflock Phillips Plastic Screw

414745900

$1.69

131

SPACER - Call your local BRP dealership

512059812

Unavailable

132

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

137

Tie Rap Mount (screwable)

515176795

$5.39

141

Sensor Wheel

705601372

$46.99

143

Front Sensor Wheel

705601512

$43.99

144

Speed Sensor

706202361

$164.99

145

Cable Ass'y

707000399

$71.99

146

Cable Ass'y

707000518

$65.99

147

Steering Position Sensor

219800354

$269.99

148

LH Tail Light Ass'y

515176850

$59.49

149

RH Tail Light Ass'y

515176849

$59.49

150

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

151

Lock

710001222

$2.09

156

Switch Support

710001365

$20.99

157

Brake Pressure Switch Ass'y

710001379

$43.49

161

Tubing 10 MM 1000MM Long

219704407

$2.79

166

Trim 1000Mm Long

219704354

$15.99

168

Shim

710002023

$2.85

170

Connector Holder

710002033

$3.39

174

Yaw Rate Sensor

710002677

$194.99

176

Rear Support

710002860

$11.49

177

Battery Holder

710002893

$17.49

181

Grommet Spindle

710003017

$14.83

182

RH/LH Fuse Box Decal

710003077

$0.64

183

Speed Sensor Holder

710003156

$11.49

184

Speed Sensor Holder

710003157

$11.49

185

Shock Damper

710003279

$10.49

186

Connectors Bracket

710003305

$13.17

187

KNOCK HOLDER SUPPORT - Call your local BRP dealership

710003306

Unavailable

188

Connector Support

710003322

$4.19

191

YRS Holder

710003494

$15.99

192

Switch Cover

710003594

$16.49

195

VCM Harness Protector

710003996

$2.79

196

Connector Support

710004086

$8.49

199

Ignition Switch with Harness

710005640

$306.99

199a

DESS Antenna

219800373

$60.49

202

HORN - Call your local BRP dealership

710004229

$28.99

203

Protector

710004281

$25.99

204

Wire Support

710004308

$13.49

223

Fuse Holder Support

710004472

$10.01

232

Cable Neg

710004733

$61.99

235

CABLE POSITIVE - Call your local BRP dealership

710004734

Unavailable

238

START CABLE - Call your local BRP dealership

710004735

Unavailable

244

Tank Cable

710004849

$19.49

245

LH Support Wire

710004860

$2.29

246

RH Support Wire

710004861

$2.29

251

Dess Module

710004916

$179.99

252

Kit Speed Sensor

219800456

$86.99

254

VCM Module

219800375

$1,229.99

255

Harness Holder

710004931

$1.59

259

Clip Tie-Rap | Package North Edition

710005037

$9.17

260

Battery, 12 Volts, 21 Amperes

410922962

$194.99

263

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

269

Bulb 12V 10W | Not Shown

415129261

$2.46

269

Bulb

520000758

$9.10

270

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49
