Description

Price

10

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Screw M6 X 20

207662054

$1.01

16

Hex. Forming Screw M6 X 10

210261050

$1.69

17

Hex. Flange Screw M6 X 12

210261250

$1.90

26

Elastic Stop Nut M6

232561434

$1.99

27

Elastic Flange Nut M5

233251494

$2.11

40

Torx Screw M4 X 16

250000750

$1.68

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Extruded Panel Nut M4 X 0.7

250100143

$8.49

46

Clip

270000141

$11.49

48

Actuator Motor

710007256

$227.99

48a

Insulation Sheath

278000231

$5.08

48b

Male Terminal

278000230

$4.39

50

Pop Rivet

293150150

$2.40

55

Tie Wrap 142 mm

293750002

$1.25

85

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

90

Pop Rivet 3/16"

390402400

$0.35

92

Tie-Rap 180 mm

414115200

$0.11

127

Clip

414227300

$1.67

140

Deflector

705601344

$12.71

142

LPS Deflector

705601402

$13.23

152

LH Rear Turn Signal Ass'y

710001290

$68.99

152a

Bulb 12V/10W, Amber

219800039

$5.29

153

RH Rear Turn Signal Ass'y

710001337

$68.99

153a

Bulb 12V/10W, Amber

219800039

$5.29

157

Brake Pressure Switch Ass'y

710001379

$43.49

166

Trim 1000Mm Long

219704354

$15.99

167

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

170

Connector Holder

710002033

$3.39

173

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

710002288

Unavailable

175

Rubber Plug

710002858

$2.85

178

Tie-Rap Clip

710002896

$4.39

189

License Plate Light

710003348

$70.99

189a

Bulb 12V 10W | Not Shown

415129261

$2.46

190

Brake Light Switch Ass'y

710003412

$46.49

193

CALIBRATED MODULE - Call your local BRP dealership | SE5

710003750

Unavailable

226

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

229

Housing-Switch LH

710004586

$569.99

230

Tcm Support | SE5

710004629

$15.99

242

WIRING HARNESS_CONSOLE - Call your local BRP dealership

710004754

Unavailable

243

WIRING HARNESS REAR - Call your local BRP dealership

710004756

Unavailable

247

PBM Module Ass'y

710005887

$479.99

248

CONNECTOR PLUG - Call your local BRP dealership

710004899

Unavailable

250

CONNECTOR PLUG - Call your local BRP dealership

710004905

Unavailable

258

Headlamp

710004953

$369.99

258a

Rubber Cap Protector

219800280

$19.49

258b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

259

Clip Tie-Rap | Package North Edition

710005037

$9.17

261

Speed-Prog | Includes 529 à 530

710004722

$1,139.99

262

Lens | XTP

415129349

$24.49

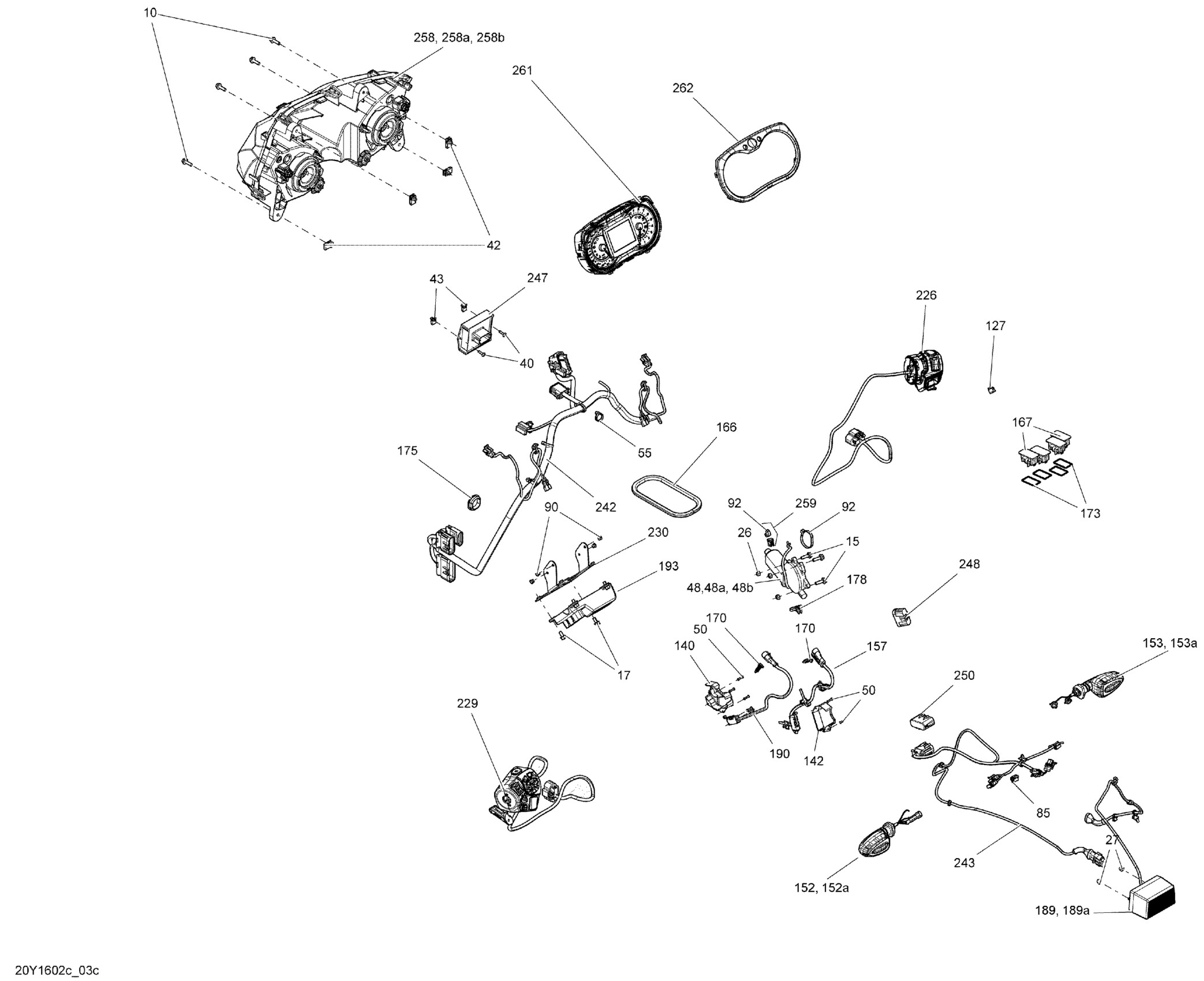

Can-Am ST, 2016 10- Electrical System - Accessories Diagram

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 20

Hex. Forming Screw M6 X 10

Hex. Flange Screw M6 X 12

Elastic Stop Nut M6

Elastic Flange Nut M5

Torx Screw M4 X 16

Panel Nut M6 X 1.0

Extruded Panel Nut M4 X 0.7

Clip

Actuator Motor

Insulation Sheath

Male Terminal

Pop Rivet

Tie Wrap 142 mm

2-Pieces Fixing Tie Rap for Edges | Not Shown

Pop Rivet 3/16"

Tie-Rap 180 mm

Clip

Deflector

LPS Deflector

LH Rear Turn Signal Ass'y

Bulb 12V/10W, Amber

RH Rear Turn Signal Ass'y

Bulb 12V/10W, Amber

Brake Pressure Switch Ass'y

Trim 1000Mm Long

Plug Carling | Australia, Brazil, Europe, Japan

Connector Holder

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

Rubber Plug

Tie-Rap Clip

License Plate Light

Bulb 12V 10W | Not Shown

Brake Light Switch Ass'y

CALIBRATED MODULE - Call your local BRP dealership | SE5

RH Switch Housing | Included 5d to 5d1

Housing-Switch LH

Tcm Support | SE5

WIRING HARNESS_CONSOLE - Call your local BRP dealership

WIRING HARNESS REAR - Call your local BRP dealership

PBM Module Ass'y

CONNECTOR PLUG - Call your local BRP dealership

CONNECTOR PLUG - Call your local BRP dealership

Headlamp

Rubber Cap Protector

Halogen Bulb, 60/55 W, 12 V ( H4 )

Clip Tie-Rap | Package North Edition

Speed-Prog | Includes 529 à 530

Lens | XTP
