Description

Price

1

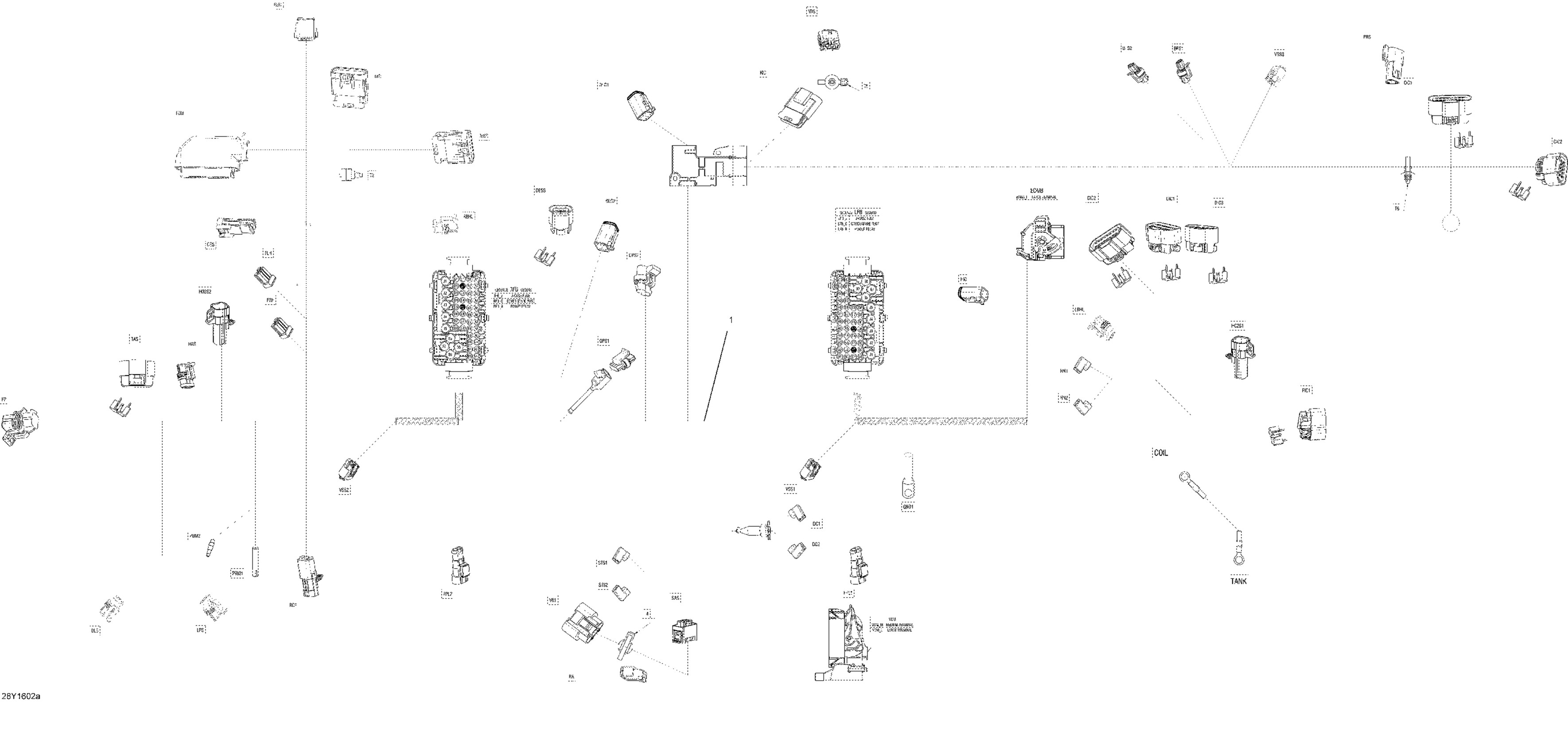

WIRING HARNESS_CHASSIS - Call your local BRP dealership

710004353

Unavailable

BFS1

Female Housing, 2 Circuits

515177192

$9.12

BFS1

Seal

710001233

$3.19

BFS1

Female Terminal

710001164

$8.89

BFS2

Female Housing, 2 Circuits

515177192

$9.12

BFS2

Seal

710001233

$3.19

BFS2

Female Terminal

710001164

$8.89

BLS

Female Housing, 2 Circuits

409209500

$15.27

BLS

Wire Seal

515176621

$7.49

BLS

Female Terminal

710001340

$5.89

CIC1

Housing

710001226

$13.49

CIC1

Lock

710001222

$2.09

CIC1

Cap

710001225

$9.19

CIC1

Seal

710001233

$3.19

CIC1

Seal Wire

710001332

$3.28

CIC1

Terminal

710001229

$3.19

CIC1

Terminal

710001228

$3.28

CIC2

Housing

710001951

$12.71

CIC2

Lock

710001222

$2.09

CIC2

Cap

710001225

$9.19

CIC2

Seal

710001233

$3.19

CIC2

Seal Wire

710001332

$3.28

CIC2

Terminal

710001229

$3.19

CIC2

Terminal

710001228

$3.28

COIL

Open Barrel

278000992

$2.21

D2

Diode

409012700

$11.12

DC1

Female Terminal

710002398

$2.19

DC1

Female Terminal

710002399

$2.40

DC2

Female Terminal

710002398

$2.19

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DC2

Female Terminal

710002399

$2.40

DESS

Housing Connector

515177287

$7.62

DESS

Lock

710001222

$2.09

DESS

Seal

710001233

$3.19

DESS

Terminal

710001229

$3.19

DIC1

Housing

710001226

$13.49

DIC1

Lock

710001222

$2.09

DIC1

Cap

710001225

$9.19

DIC1

Seal

710001233

$3.19

DIC1

Terminal

710001229

$3.19

DIC2

HOUSING - Call your local BRP dealership

710001874

$13.49

DIC2

Lock

710001222

$2.09

DIC2

Plug

710002075

$3.09

DIC2

Wire Seal

278002186

$5.50

DIC2

Female Terminal

278002187

$6.39

DIC2

Terminal

710001873

$2.09

DIC3

Housing

710001232

$14.29

DIC3

Lock

710001222

$2.09

DIC3

Cap

710001225

$9.19

DIC3

Seal Wire

710001332

$3.28

DIC3

Terminal

710001228

$3.28

DLC1

Male Housing, 6 Circuits

515175673

$15.49

DLC1

Male Wedge, 6 Circuits

515175678

$5.39

DLC1

Sealing Cap

293000052

$3.19

DLC1

Female Terminal

278000632

$2.09

DLC1

Female Terminal

278001665

$4.55

DLC2

Male Housing, 6 Circuits

515175673

$15.49

DLC2

Male Wedge, 6 Circuits

515175678

$5.39

DLC2

Sealing Cap

293000052

$3.19

DLC2

Female Terminal

278001665

$4.55

DPS1

Housing

710001161

$11.12

DPS1

Lock

710001162

$3.19

DPS1

Cap

710001225

$9.19

DPS1

Cap

710001114

$18.49

DPS1

Wire Seal

710001163

$7.69

DPS1

Female Terminal

710001164

$8.89

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

DPS2

Female Terminal

710001160

$6.35

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB_L

Female Terminal

710001590

$2.09

ECMB_L

Female Terminal

710001727

$3.19

FLH

Female Housing, 3 Circuits

515175495

$16.18

FLH

Female Terminal

515175231

$4.39

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

710000643

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

FPL1

Clip

710000992

$4.29

FPL1

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL1

Wire Seal

515176621

$7.49

FPL1

Male Terminal

515176164

$7.16

FPL2

Clip

710000992

$4.29

FPL2

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL2

Wire Seal

515176621

$7.49

FPL2

Male Terminal

515176164

$7.16

FRH

Female Housing, 3 Circuits

515175495

$16.18

FRH

Female Terminal

515175231

$4.39

GSC

CONNECTOR - Call your local BRP dealership

710001936

Unavailable

GSC

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

GSC

Female Terminal

278001665

$4.55

HBS

Female Housing, 3 Circuits

409209600

$35.99

HBS

Plug

409013700

$4.55

HBS

Wire Seal

515176621

$7.49

HBS

Female Terminal

710001340

$5.89

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HIC

Sealing Cap

293000052

$3.19

HIC

Female Terminal

278000632

$2.09

HN1

Female Terminal

710002398

$2.19

HN1

Female Terminal

710002399

$2.40

HN2

Female Terminal

710002398

$2.19

HN2

Female Terminal

710002399

$2.40

HO2S1

Housing

710002466

$3.19

HO2S1

Connector Holder

710002033

$3.39

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S2

Housing

710002466

$3.19

HO2S2

Connector Holder

710002033

$3.39

HO2S2

Seal

278001482

$3.19

HO2S2

Gold Terminal

710002597

$3.19

KIC

Housing

710001231

$13.99

KIC

Seal Wire

710001332

$3.28

KIC

TERMINAL - Call your local BRP dealership

710001863

Unavailable

LBHL

Female Housing, 3 Circuits

409209600

$35.99

LBHL

Wire Seal

278001013

$3.28

LBHL

Female Terminal

278001014

$3.28

LFB

Little Fuse, 5 Amperes

710000742

$8.79

LFB

Little Fuse, 10 Amperes

710000744

$8.79

LFB

Little Fuse, 15 Ampere

710000745

$8.49

LFB

Little Fuse, 20 Amperes

710000746

$8.49

LFB

Fusebox Ass'y

710005623

$49.49

LFB

Seal Plug

278002880

$7.86

LFB

Relay, 30 AMP

515176774

$21.99

LFB

Relay

715900824

$21.99

LFB

PLUG - Call your local BRP dealership

710002633

Unavailable

LFB

Wire Seal

278001065

$7.69

LFB

Wire Seal

278000218

$4.39

LFB

Female Terminal

278002578

$1.04

LFB

Female Terminal

710000918

$7.69

LFB_C

Cover

710007491

$17.99

LFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004273

Unavailable

LFB_C

Little Fuse, 5 Amperes

710000742

$8.79

LFB_C

Little Fuse, 10 Amperes

710000744

$8.79

LFB_C

Little Fuse, 25 Ampere

278002389

$4.55

LFB_C

Little Fuse, 15 Ampere

710000745

$8.49

LFB_C

Little Fuse, 20 Amperes

710000746

$8.49

LFB_J

Fuse, 25 AMP

710001046

$3.91

LFB_J

Fuse, 40 AMP

710001047

$11.80

LFB_J

Fuse 30 amp.

710001200

$7.20

LFB_J

Seal Joint

710003134

$1.39

LFB_J

Terminal Joint

710001905

$2.09

LFB_J

Seal Joint

710003133

$0.90

LFB_J

Terminal

710001630

$2.09

LFB_J

Terminal

710001906

$2.54

LFB_J

M Terminal

710003135

$2.79

LFB_R

50 Amps Relay

710003143

$13.76

LFB_R

Seal Joint

710003133

$0.90

LFB_R

Seal Joint

710003132

$0.90

LFB_R

Terminal

710002438

$1.39

LFB_R

F Terminal

710003125

$3.39

LPS

Female Housing, 3 Circuits

409209600

$35.99

LPS

Plug

409013700

$4.55

LPS

Wire Seal

515176621

$7.49

LPS

Female Terminal

710001340

$5.89

MSL

Housing

710001944

$15.35

MSL

Cap

710001225

$9.19

MSL

Seal Wire

710001332

$3.28

MSL

Seal

710001233

$3.19

MSL

Terminal

710001223

$3.19

MSL

Terminal

710001224

$3.19

MSR

Housing, Packard

710001929

$11.12

MSR

Cap

710001225

$9.19

MSR

Seal

710001233

$3.19

MSR

Terminal

710001224

$3.19

PBM1

Insulated Sheath

278001007

$3.58

PBM1

Female Terminal

710000421

$6.11

PBM2

Insulated Sheath

278001008

$3.28

PBM2

Female Terminal

278002261

$7.55

PIC1

Housing

710001943

$17.59

PIC1

Lock

710001222

$2.09

PIC1

Cap

710001225

$9.19

PIC1

Seal

710001233

$3.19

PIC1

Seal Wire

710001332

$3.28

PIC1

Terminal

710001229

$3.19

PIC1

Terminal

710001228

$3.28

PRS

Male Housing

278002378

$13.99

PRS

Male Lock, 3 Circuits

409207600

$3.19

PRS

Male Terminal

710001348

$12.99

RBHL

Female Housing, 3 Circuits

409209600

$35.99

RBHL

Wire Seal

278001013

$3.28

RBHL

Female Terminal

278001014

$3.28

RCF

Female Housing, 2 Circuits

278000217

$9.59

RCF

Connector Holder

710002033

$3.39

RCF

Wire Seal

710000504

$4.39

RCF

Male Terminal

409004300

$5.61

RFB

Little Fuse, 10 Amperes

710000744

$8.79

RFB

Little Fuse, 5 Amperes

710000742

$8.79

RFB

Little Fuse, 15 Ampere

710000745

$8.49

RFB

Little Fuse, 25 Ampere

278002389

$4.55

RFB

Fusebox Ass'y

710005623

$49.49

RFB

Seal Plug

278002880

$7.86

RFB

Relay, 30 AMP

515176774

$21.99

RFB

Relay

715900824

$21.99

RFB

PLUG - Call your local BRP dealership

710002633

Unavailable

RFB

Wire Seal

278001065

$7.69

RFB

Wire Seal

278000218

$4.39

RFB

Female Terminal

710000890

$4.55

RFB

Female Terminal

710000918

$7.69

RFB

Female Terminal

278002578

$1.04

RFB_C

Cover

710007491

$17.99

RFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004274

Unavailable

RFB_C

Little Fuse, 10 Amperes

710000744

$8.79

RFB_C

Little Fuse, 25 Ampere

278002389

$4.55

RFB_C

Little Fuse, 15 Ampere

710000745

$8.49

RFB_C

Little Fuse, 20 Amperes

710000746

$8.49

RFB_C

Little Fuse, 5 Amperes

710000742

$8.79

RFB_J

Fuse, 20 AMP

710001078

$1.90

RFB_J

Fuse, 40 AMP

710001047

$11.80

RFB_J

Fuse 30 amp.

710001200

$7.20

RFB_J

Fuse, 60 AMP

710002054

$22.49

RFB_J

Terminal Joint

710001905

$2.09

RFB_J

Seal Joint

710003133

$0.90

RFB_J

Seal Joint

710003134

$1.39

RFB_J

Terminal

710001630

$2.09

RFB_J

Terminal

710001906

$2.54

RFB_J

M Terminal

710003135

$2.79

RFB_R

50 Amps Relay

710003143

$13.76

RFB_R

Seal Joint

710003133

$0.90

RFB_R

Seal Joint

710003132

$0.90

RFB_R

Terminal

710002438

$1.39

RFB_R

F Terminal

710003125

$3.39

SAS

Housing

710003731

$8.59

SAS

Plug

710001938

$2.46

SAS

Wire Seal

710001118

$1.16

SAS

Female Terminal

710003862

$2.43

STS1

Female Terminal

710002398

$2.19

STS1

Female Terminal

710002399

$2.40

STS2

Female Terminal

710002398

$2.19

STS2

Female Terminal

710002399

$2.40

TANK

Open Barrel

278000992

$2.21

TAS

Housing

710001232

$14.29

TAS

Lock

710001222

$2.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001229

$3.19

TCM

Female Terminal Housing, 36 Circuits

515176223

$14.99

TCM

Terminal Support

515176224

$15.99

TCM

Plug

515175812

$2.19

TCM

Female Housing

515176221

$15.99

TCM

Wire Seal

515176222

$16.86

TCM

Female Terminal

515175806

$0.99

TCM

Female Terminal

710001131

$8.89

VCM

RH Connector Cover

710002772

$4.55

VCM

Module Protector VCM

710002381

$20.99

VCM

Housing

710002768

$17.59

VCM

Plug

710001258

$3.29

VCM

Seal Wire

710001153

$2.21

VCM

Terminal

710002773

$2.09

VCM_L

Wire Seal

710001159

$6.35

VCM_L

Terminal

710002775

$0.74

VCM_M

Wire Seal

278000999

$3.19

VCM_M

Female Terminal

710000837

$5.39

VR1

Female Housing, 3 Circuits

710000879

$25.99

VR1

Cap

710000882

$11.49

VR1

Seal

710001932

$3.27

VR1

Terminal

710001934

$5.50

VSS1

Housing

710003729

$22.49

VSS1

Wire Seal

710001118

$1.16

VSS1

Female Terminal

710003862

$2.43

VSS2

Housing

710003729

$22.49

VSS2

Wire Seal

710001118

$1.16

VSS2

Female Terminal

710003862

$2.43

VSS3

Housing

710003729

$22.49

VSS3

Wire Seal

710001118

$1.16

VSS3

Female Terminal

710003862

$2.43

YRS

Housing

710003730

$14.83

YRS

Wire Seal

710001118

$1.16

YRS

Female Terminal

710003862

$2.43

Can-Am ST, 2016 10- Electrical Harness - Frame Diagram

WIRING HARNESS_CHASSIS - Call your local BRP dealership

Female Housing, 2 Circuits

Seal

Female Terminal

Female Housing, 2 Circuits

Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Housing

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Housing

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Open Barrel

Diode

Female Terminal

Female Terminal

Female Terminal

CAP - Call your local BRP dealership

Female Terminal

Housing Connector

Lock

Seal

Terminal

Housing

Lock

Cap

Seal

Terminal

HOUSING - Call your local BRP dealership

Lock

Plug

Wire Seal

Female Terminal

Terminal

Housing

Lock

Cap

Seal Wire

Terminal

Male Housing, 6 Circuits

Male Wedge, 6 Circuits

Sealing Cap

Female Terminal

Female Terminal

Male Housing, 6 Circuits

Male Wedge, 6 Circuits

Sealing Cap

Female Terminal

Housing

Lock

Cap

Cap

Wire Seal

Female Terminal

HOUSING - Call your local BRP dealership

SEAL - Call your local BRP dealership

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Female Terminal

Female Terminal

Female Terminal

Female Housing, 3 Circuits

Female Terminal

Housing

Lock
