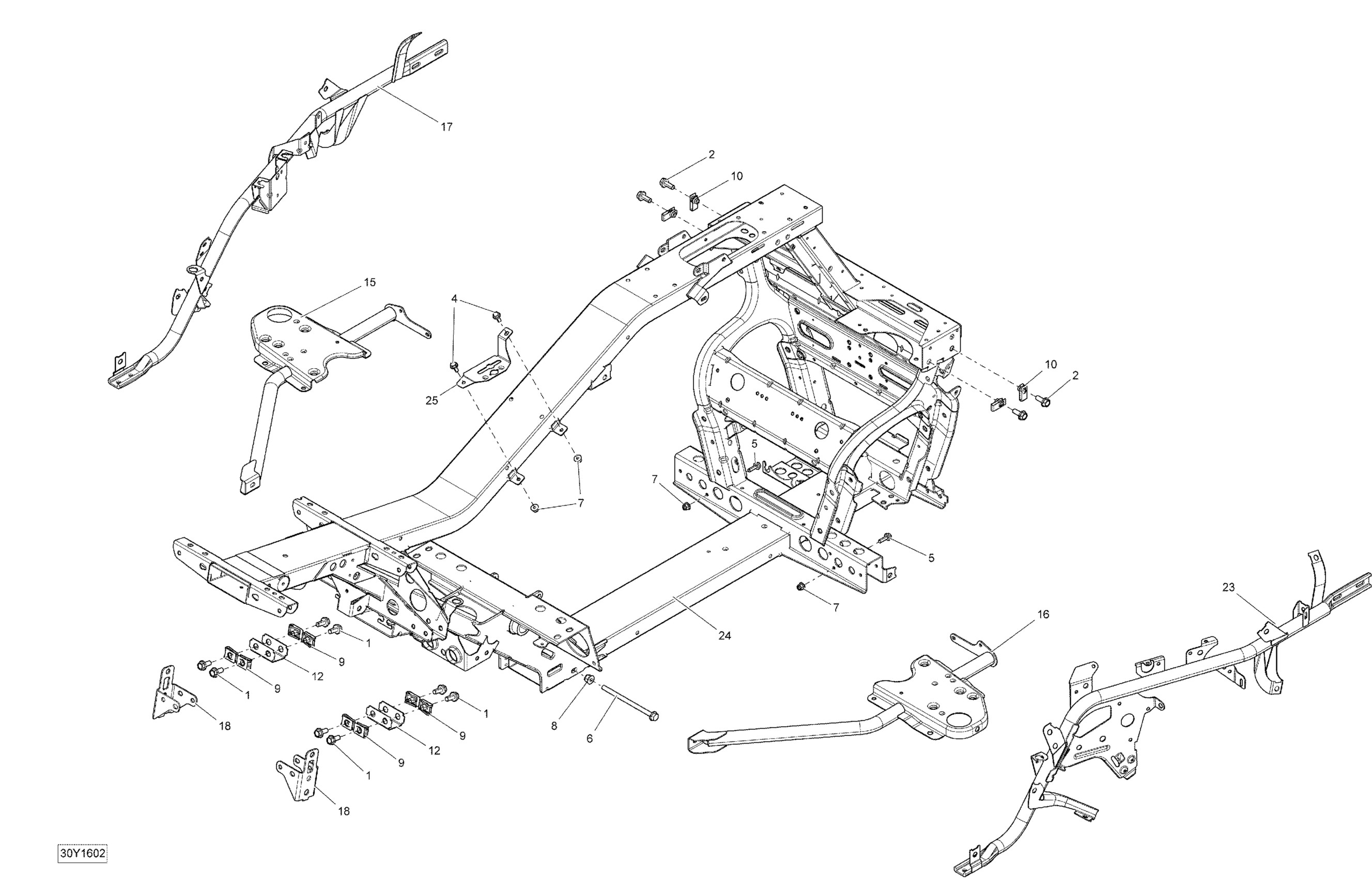

Can-Am ST, 2016 09- Frame Diagram

#

Description
Price

1

HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

207581844

Unavailable

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M6 X 16

207661646

$1.36

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 130

230683034

$7.51

7

Hex. Flange Elastic Nut M6

233261466

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Panel Nut M8 X 1.25

250100069

$4.29

10

Panel Nut M8 X 1.25

250100118

$2.09

12

U-Bracket

705202484

$19.49

15

LH Painted Lower Lateral Support

705202626

$85.99

16

RH LOWER SIDE SUPPORT - Call your local BRP dealership

705202680

Unavailable

17

LH UPPER SIDE SUPPORT - Call your local BRP dealership

705202681

Unavailable

18

REAR SUPPORT - Call your local BRP dealership

705202963

Unavailable

23

RH Painted Lateral Support Ass'y

705204510

$159.99

24

Frame

705204866

$1,389.99

25

Latch Support

705205078

$15.49
