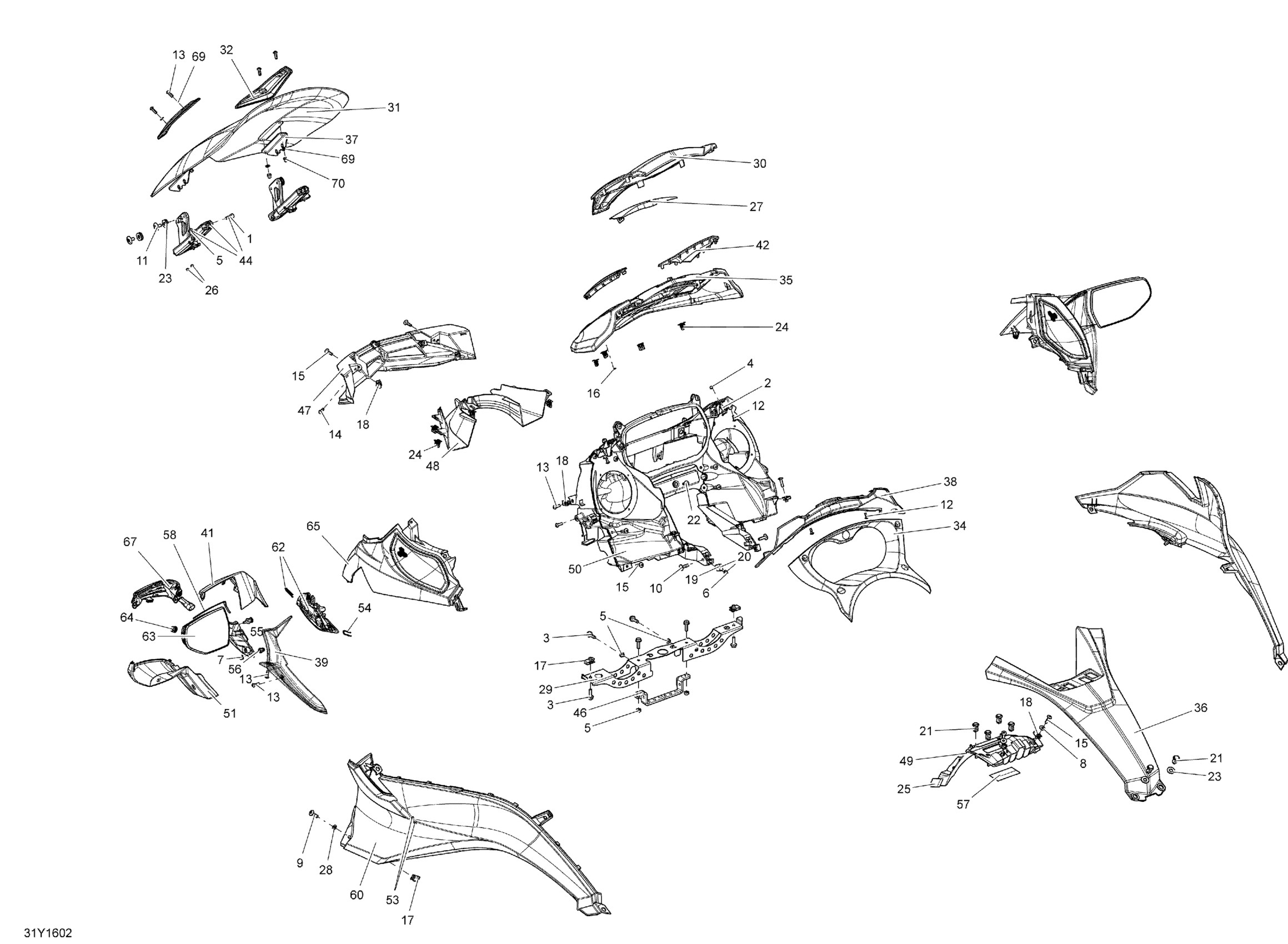

Can-Am ST, 2016 09- Body And Accessories - Console Diagram

#

Description
Price

1

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

4

Hex. Nut M6

232061414

$0.53

5

Elastic Stop Nut M6

232561414

$0.55

6

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Stainless Steel Flat Washer M5

234052670

$1.01

9

Torx Truss Screw M6 X 20

250000350

$5.29

10

Torx Truss Screw M6 X 20

250000488

$2.11

11

TORX SCREW M6 X 13.5 - Call your local BRP dealership

250000551

Unavailable

12

Torx Truss Screw K40 X 12

250000577

$2.11

13

Torx Truss Screw M5 X 16, T25

250000578

$2.11

14

Socket Screw M5 X 16 F/ | Model-ST

250000661

$0.90

15

Torx Screw M5 X 20

250000724

$1.69

16

Push Nut

250100034

$1.29

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Panel Nut M5 X 0.8

250100176

$4.09

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

20

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

21

Tuflok Plastic Rivet

293150230

$1.47

22

Tie Rap Mount

293750044

$2.49

23

RUBBER WASHER - Call your local BRP dealership

293830164

$2.29

23

Stainless Steel Flat Washer

234062670

$2.11

24

Edge Clip

517302785

$0.88

25

LATERAL CONSOLE FOAM - Call your local BRP dealership | Model-ST

518327579

Unavailable

26

Ball

705001705

$6.39

27

Guide Chart

705009360

$27.99

28

Plastic Washer

705003207

$0.80

29

CROSS SUPPORT CONSOLE - Call your local BRP dealership

705004950

Unavailable

30

Upper Console

705004954

$174.99

31

Windshield

705004960

$254.99

32

LH WINDSHIELD MOULDING - Call your local BRP dealership

705004961

Unavailable

32

RH Windshield Moulding

705004962

$37.99

34

Moulding Dash Board

705007460

$53.99

35

Carbon Black Front Console

705006842

$259.99

36

PANEL_BODY CTRL. B-266 - Call your local BRP dealership | Package-LTD Steel Black Met

705008858

Unavailable

37

Windshield Support

705004982

$13.49

38

UPPER CONSOLE MOULDING - Call your local BRP dealership

705005320

Unavailable

39

RH Upper Air Deflector

705005324

$45.99

39

LH Upper Air Deflector

705005323

$45.99

41

Mirror Sheel

705005325

$129.99

41

Mirror Sheel

705005326

$43.99

42

RH SLIDER PROTECTOR - Call your local BRP dealership

705005412

Unavailable

42

LH SLIDER PROTECTOR - Call your local BRP dealership

705005411

Unavailable

44

RH Rail Ass'y

705005461

$95.99

44

LH RAIL ASS'Y - Call your local BRP dealership

705005460

Unavailable

46

CONSOLE SUPPORT BRACKET - Call your local BRP dealership

705005476

Unavailable

47

Headlamp Moulding

705005582

$38.99

48

Center Air Intake

705005586

$92.99

49

LATERAL CONSOLE SUPPORT - Call your local BRP dealership | Model-ST

705005739

Unavailable

50

CONSOLE SUPPORT ASS'Y - Call your local BRP dealership

705006016

$179.99

51

RH LOWER SHELL - Call your local BRP dealership

705006480

Unavailable

51

LH LOWER SHELL - Call your local BRP dealership

705006479

Unavailable

51

LOWER COVER LH - Call your local BRP dealership | Model ST with Color Magma Red

705009962

Unavailable

51

LOWER COVER RH - Call your local BRP dealership | Model ST with Color Magma Red

705009963

Unavailable

53

Stopper

705006633

$8.49

54

Spring

705006661

$3.39

55

Flat Head Stud M5

705006733

$20.99

56

Stud Ball M5

708400538

$18.49

57

FOAM PROTECTOR - Call your local BRP dealership

705007123

Unavailable

58

Seal

296000392

Unavailable

60

Bare, RH Console | Model-ST S Steel Black Met.

705007667

Unavailable

60

Steel Black RH Side Console | Model-ST S Model-Steel Black Met.

705007668

$259.99

60

RH. CONSOLE - Call your local BRP dealership | Model ST with Color Magma Red

705009965

Unavailable

60

LH. CONSOLE - Call your local BRP dealership | Model ST with Color Magma Red

705009966

Unavailable

62

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

62

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

63

RH MIRROR ASS'Y - Call your local BRP dealership

705008660

Unavailable

63

LH MIRROR ASS'Y - Call your local BRP dealership

705008659

Unavailable

64

Spring

705010625

$10.99

65

DASHBOARD - Call your local BRP dealership

705009561

Unavailable

65

DASHBOARD - Call your local BRP dealership

705009560

Unavailable

67

LH Flasher

710004029

$200.99

67

RH FLASHER - Call your local BRP dealership

710004030

Unavailable

69

Flat Washer M5

234051670

$2.11

70

Cap Nut M5

250100152

$2.00
