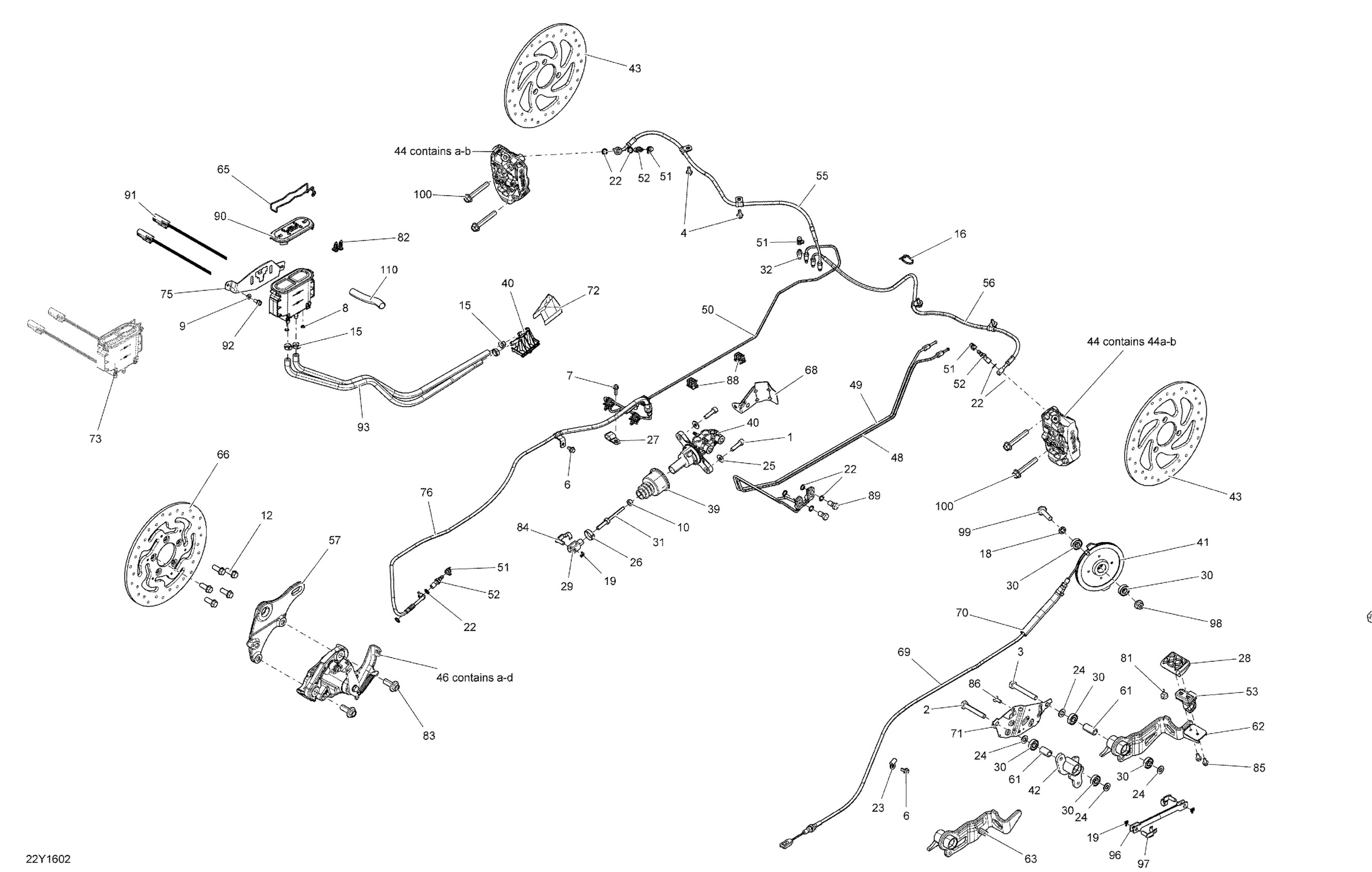

Can-Am ST, 2016 06- Hydraulic Brake Diagram

#

Description
Price

1

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

2

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

3

Hexagonal Screrw S.GRIP M10 X 75 | RT LTD

207207544

$4.44

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

6

Hex. Flange Screw M6 X 20

207662054

$1.01

7

Hexagonal Head Screw

210262050

$2.11

8

Push Nut | Not shown

211100002

$2.19

9

Flat Washer

224061121

$0.53

10

Hex. Nut M8

232081414

$0.72

12

Hex. Flange Screw M10 X 25

250001054

$14.21

15

Crimp Clamp, 15.3-706R

293650047

$3.29

16

Tie Wrap 368 mm

293750008

$1.04

18

Bushing

293900087

$7.90

19

Cotter Pin

371800700

$1.01

22

Washer

414920600

$1.90

23

Bracket

415052400

$4.39

24

Washer

503183800

$3.28

25

Washer

506151245

$0.93

26

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

27

Open Clamp

515175507

$1.89

28

Rubber Pad

705004933

$20.99

29

Yoke

705600100

Unavailable

30

Bearing

705600458

$19.99

31

Piston Rod

705600468

$23.49

32

Bleeder Screw

705600502

$11.11

39

Bellow

705600716

$12.10

40

Tandem Cylinder Master

705600722

$369.99

41

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

42

Rocker Arm | RT

705600855

$49.99

43

Front Brake Disk

705601631

$153.99

44

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

44b

Spring/Pin/Clip Kit

219800238

$26.99

44a

Brake Pad Kit

219800237

$79.49

46

Rear Caliper | Includes 90 to 90d

705600989

$497.99

46a

Brake Pad Kit

219800239

$79.49

46b

Spring/Pin/Clip Kit

219800240

$35.99

46c

Rear Cable Support Kit

219800241

$41.49

46d

Rear Dust Cover

219800242

$32.99

48

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

49

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

50

Rear Brake Rigid Tube

705601159

$31.99

51

Bleeder Bolt Cap

705601190

$4.44

52

Banjo Bolt/ Bleeder

705601201

$19.99

53

Pedal Guard | RT LTD

705601217

$11.99

55

-LH Front Hose

705601471

$61.49

56

RH Front Hose | RS

705601254

$61.49

57

Rear Caliper Support

705601262

$55.99

61

Bushing

705600541

$15.36

61a

O-Ring

293300191

$1.46

62

BRAKE PEDAL, PAINTED - Call your local BRP dealership | ST SM5

705601285

Unavailable

63

BRAKE PEDAL, PAINTED - Call your local BRP dealership | ST LTD

705601287

Unavailable

65

Spindle Lock

705601294

$15.81

66

Rear Brake Disk

705601632

$244.99

68

HEAT DEFLECTOR - Call your local BRP dealership

705601333

Unavailable

69

Brake Cable | RS

705601335

$66.99

70

Heat Shield

705601341

$8.09

71

Tab Lock | RT

705601346

$20.99

72

HEAT SHIELD - Call your local BRP dealership | RS

705601368

Unavailable

73

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

75

Bracket

705601485

$14.49

76

Brake Line

705601501

$74.99

81

Rubber Stopper

708000759

$4.19

82

Connector Holder

710002033

$3.39

83

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

84

Rod Clamp

250400064

$6.88

85

Hex. Flange Screw M6 X 12

210261250

$1.90

86

Torx Head Screw M6 X 16

250000717

$2.11

88

Anchorage Tube

705601987

$5.18

89

Banjo Bolt

507032551

$5.61

90

Diaphragm Cover Ass'y

219800350

$17.59

91

Oil Level Sensor

705601073

$54.99

92

Hex. Flange Screw M6 X 12

210261250

$1.90

93

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

96

Connecting Rod | RT

705600959

$54.99

97

Rod Clamp

250400064

$6.88

98

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

99

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

100

Hex Flange Screw M10 X 65

207506556

$6.77

110

Hose 4.32Mm 3000Mm Long

219704415

$55.99
