Description

Price

1

Hydraulic Housing | Includes 1 to 7

420611496

$328.49

2

Center Pin

420232210

$8.26

3

NIPPLE 12/8 - Call your local BRP dealership

420840446

Unavailable

4

PRESSURE REGULATING PISTON - Call your local BRP dealership

420256514

Unavailable

5

Spring

420238845

$15.87

6

Gasket Ring

420430624

$1.89

7

Plug Screw

420441337

$34.99

8

Gasket Ring

420430624

$1.89

9

Plug Screw M16 X 1.5

420240234

$14.28

10

Piston Lining

420431340

$15.49

11

Hydraulic Piston

420656260

$76.49

12

O-ring

420430590

$7.65

13

Plug Screw

420441300

$27.49

14

Solenoid Valve Ass'y | Includes 14 to 18

420656635

$999.99

15

Gasket

420650636

$12.11

16

Solenoid Valve

420256548

$254.99

17

Solenoid Valve

420256562

$439.99

18

Solenoid Valve

420256553

$439.99

19

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

20

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

21

Aluminum Sealing Ring

420250016

$5.39

22

Plug Screw M12

420841923

$15.89

23

Oil Pump Rotor, Pressure

420256671

$33.99

24

Oil Pump Shaft

420620710

$17.99

25

Needle Pin

420232731

$4.01

26

O-Ring

420831160

$2.32

27

Oil Pump Cover

420612140

$27.49

28

Torx Flange Screw M6 X 16

420440162

$3.17

29

THRUST WASHER - Call your local BRP dealership

420627345

Unavailable

30

Needle Pin

420232431

$4.39

31

Oil Pump Gear, 25 Teeth

420434610

$16.87

32

Circlip

504152282

$3.17

33

THRUST WASHER - Call your local BRP dealership

420244385

Unavailable

34

NEEDLE BEARING - Call your local BRP dealership

420632645

Unavailable

35

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

36

Oil Pump Gear, 24 Teeth

420434601

$56.99

37

Guide Pin

420229050

$18.45

38

Gasket Ring

420260940

$5.82

39

Ball Joint

420651490

$15.87

40

Circlip

420245270

$7.09

41

Gear Shift Rod

420257890

$16.87

42

Hex. Nut M6

232061414

$0.53

43

Tie Rap

420651397

$1.01

44

Bellow

420460670

$14.82

45

Ball End

420651505

$16.87

46

Gear Shift Lever

420257881

$35.99

47

Socket Head Screw M6 X 25

205062544

$1.15

48

Needle Bushing

420232031

$15.74

49

Circlip

504152282

$3.17

50

Center Pin

420232210

$8.26

51

Gasket

420431270

$18.54

52

Gasket

420430661

$20.99

53

HYDRAULIC COVER - Call your local BRP dealership

420611500

Unavailable

54

Allen Screw, M6 X 65

420241261

$4.97

55

Socket Head Screw M6 X 25

205440234

Unavailable

56

Socket Head Screw M6 X 25

205062544

$1.15

57

O-Ring

420250890

$3.06

58

Drain Plug

420241801

$7.41

59

Oil Filter

420256454

$13.77

60

O-Ring

420430920

$2.75

61

Filter Cover Kit

219800313

$20.99

62

Socket Head Screw M6 X 35

420241811

$1.79

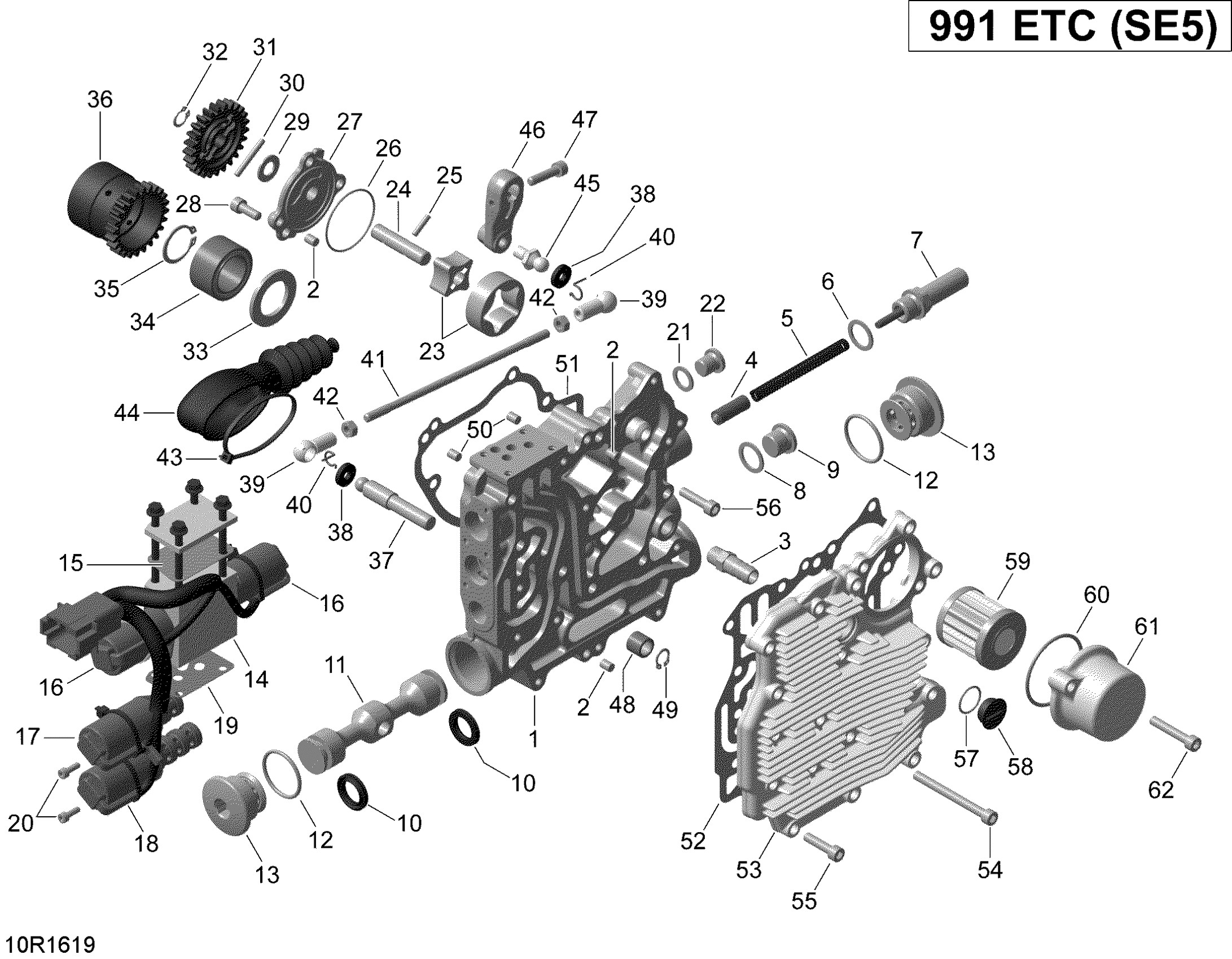

Can-Am ST, 2016 05- Hydraulic Shifting - SE5 Diagram

Hydraulic Housing | Includes 1 to 7

Center Pin

NIPPLE 12/8 - Call your local BRP dealership

PRESSURE REGULATING PISTON - Call your local BRP dealership

Spring

Gasket Ring

Plug Screw

Gasket Ring

Plug Screw M16 X 1.5

Piston Lining

Hydraulic Piston

O-ring

Plug Screw

Solenoid Valve Ass'y | Includes 14 to 18

Gasket

Solenoid Valve

Solenoid Valve

Solenoid Valve

SOLENOID VALVE GASKET - Call your local BRP dealership

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

Aluminum Sealing Ring

Plug Screw M12

Oil Pump Rotor, Pressure

Oil Pump Shaft

Needle Pin

O-Ring

Oil Pump Cover

Torx Flange Screw M6 X 16

THRUST WASHER - Call your local BRP dealership

Needle Pin

Oil Pump Gear, 25 Teeth

Circlip

THRUST WASHER - Call your local BRP dealership

NEEDLE BEARING - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

Oil Pump Gear, 24 Teeth

Guide Pin

Gasket Ring

Ball Joint

Circlip

Gear Shift Rod

Hex. Nut M6

Tie Rap

Bellow

Ball End

Gear Shift Lever

Socket Head Screw M6 X 25

Needle Bushing

Circlip

Center Pin

Gasket

Gasket

HYDRAULIC COVER - Call your local BRP dealership

Allen Screw, M6 X 65

Socket Head Screw M6 X 25

Socket Head Screw M6 X 25

O-Ring

Drain Plug

Oil Filter

O-Ring

Filter Cover Kit

Socket Head Screw M6 X 35
