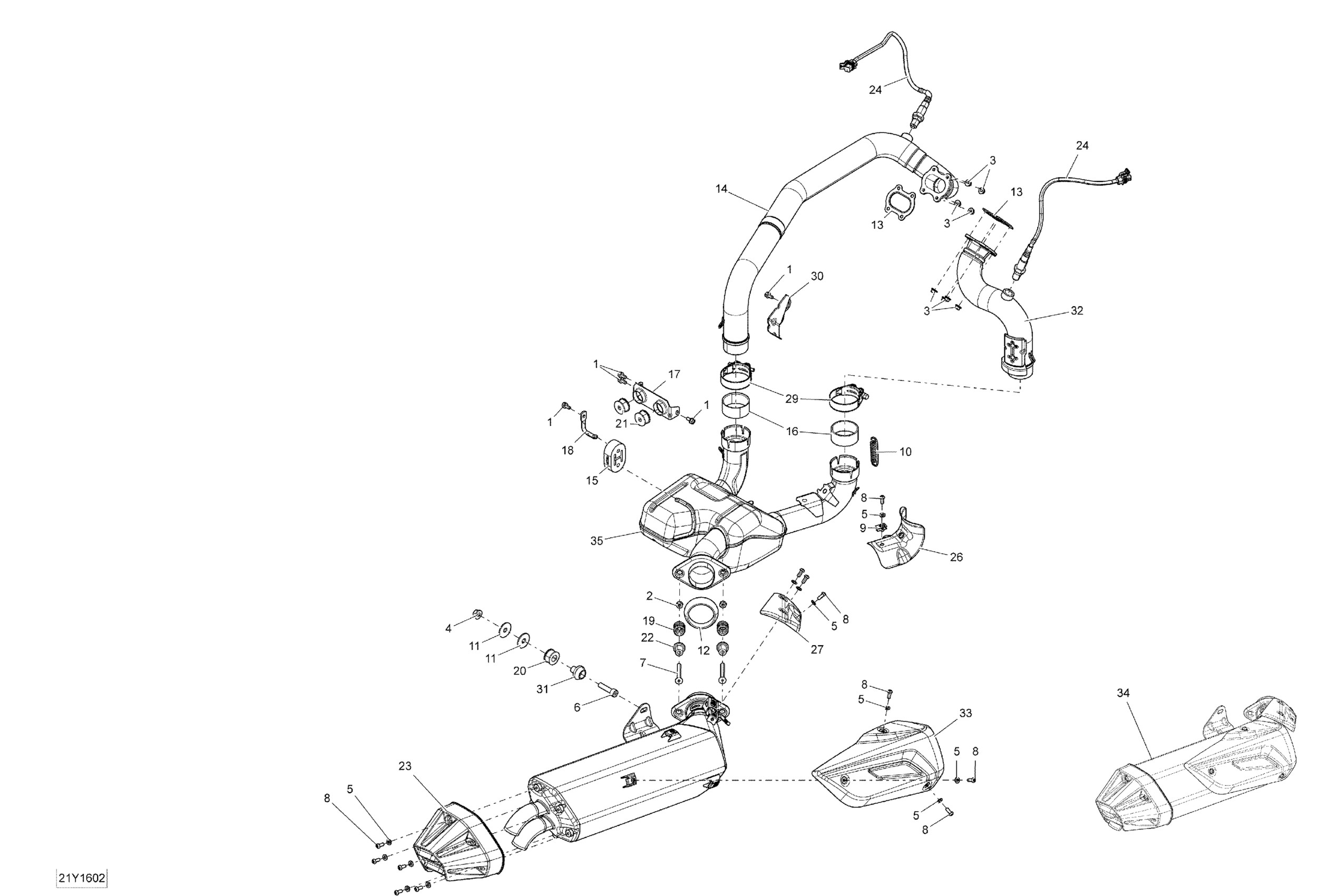

Can-Am ST, 2016 01- Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

210261250

$1.90

2

Hex. Elastic Nut M8

232581600

$1.48

3

Hex. Flange Nut M6

233061414

$1.68

4

Hex. Flange Nut M10

233101600

$5.29

5

Stainless Flat Washer M6

234061600

$0.33

5

Black, Flat Washer 6 mm

234061670

$1.25

6

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

7

SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership

250000404

Unavailable

8

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

8

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Spring

415107100

$6.35

11

Washer 10 mm

506150000

$2.74

12

Exhaust Gasket

514053677

$24.99

13

Seal

707600296

$19.49

14

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707600634

Unavailable

15

Rubber Bumper

707600638

$15.81

16

Pipe Slip Joint

707600650

$21.99

17

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

18

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

19

Spring

707600682

$6.35

20

Vibration Damper

707603323

$11.65

21

Anti-Vibration Rubber

707600702

$8.57

22

Bushing

707600750

$18.54

23

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

24

Oxygen Sensor

707600872

$144.99

26

Heat Shield

707601042

$18.49

27

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

29

COLLAR - Call your local BRP dealership

707601249

$19.49

30

DEFLECTOR - Call your local BRP dealership

707601251

Unavailable

31

BUSHING - Call your local BRP dealership

707601276

$16.49

32

REAR EXHAUST TUNED PIPE - Call your local BRP dealership

707601367

Unavailable

33

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

34

MUFFLER_EXHAUST ASSY - Call your local BRP dealership

707601706

Unavailable

35

MUFFLER_EXHAUST PRI WELD - Call your local BRP dealership

707601774

Unavailable
