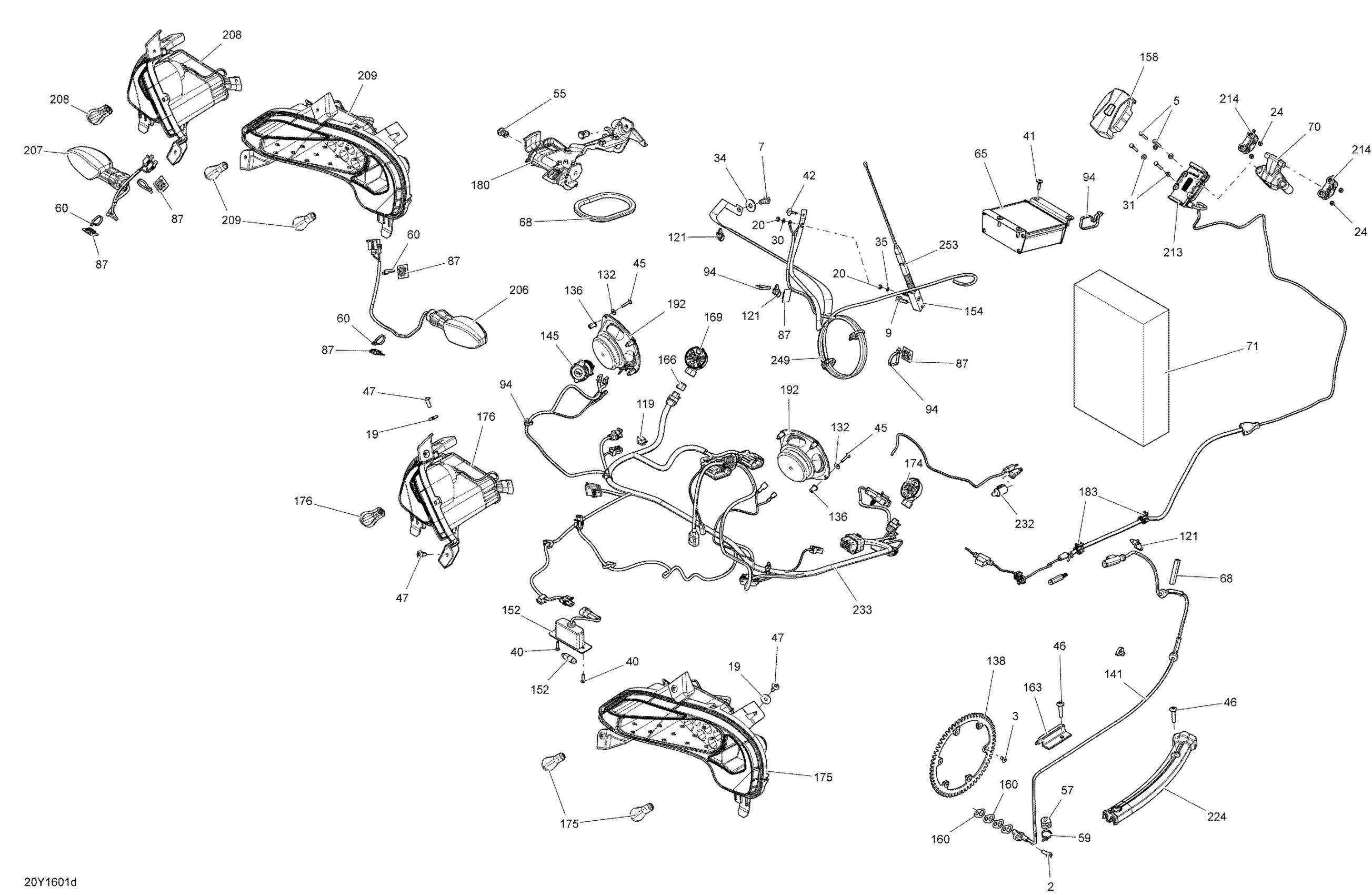

Can-Am RT, 2016 10- Electrical System - Tail Light And Accessories Diagram

#

Description
Price

2

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

3

Socket Head Screw M5 X 10

205851036

$6.77

5

Hex. Screw M4 X 25

207142544

$2.00

7

Hex. Screw M8 X 16, Scotch Grip

207381660

$1.01

9

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Flat Washer

224060201

$1.26

20

Brass Hex Nut M4 DIN.934

232041200

$2.00

24

Elastic Stop Nut M4

232541414

$0.58

30

Brass Flat Washer DIN.433 M4

234040200

$2.96

31

Flat Washer M5, Stainless

234051600

$0.77

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Curved Stainless Lock Washer DIN.128A

234140602

$2.11

40

Flange Torx Screw K40 X 16

250000287

$2.11

41

Torx Screw K50 X 16

250000720

$1.69

42

Screw M4 X 16

250000725

$3.49

45

Torx-Truss M/S M4 X 20

250000783

$2.11

46

Torx Truss Screw M6 X 30

250000843

$2.11

47

Torx Truss M8 X 16

250000881

$2.11

55

Tuflok Plastic Rivet

293150230

$1.47

57

Grommet

293720084

$6.09

59

Tie Wrap 94 mm | 4X4

293750001

$1.03

60

Tie Wrap 142 mm

293750002

$1.25

65

Radio Module

710005183

$709.99

68

Trim 1000Mm Long

219704354

$15.99

70

GPS SUPPORT, BLACK - Call your local BRP dealership

709401318

Unavailable

71

GPS Kit | Except Japon

710003433

$1,419.99

71

GPS KIT - Call your local BRP dealership | Package LTD Except North America

710004885

Unavailable

87

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

94

Tie-Rap 180 mm

414115200

$0.11

119

Clip

414227300

$1.67

132

Flat Washer

517225900

$0.18

136

Well Rubber Nut M4 X 0.7

705003635

$6.14

138

Sensor Wheel

705601372

$46.99

141

Speed Sensor

706202361

$164.99

145

DC Outlet

710001248

$37.99

152

License Light | Includes 0an to 0an1

710001451

$76.49

154

Antenna Support

710001532

$58.99

158

GPS Protector Support

710001538

$14.99

160

Shim

710002023

$2.85

163

Hose Support

710002145

$7.89

166

Rubber Plug, 16.65 X 5.35 mm

710002212

$1.26

169

LH Housing

710002349

$169.99

174

RH Housing Passenger Switch

710002464

$100.49

175

RH Rear Tail Light | Includes 357 to 359, All Models Except Japan

710002501

$423.49

176

LH Rear Tail Light | Includes 354 to 356, All Models Except Japan

710002502

$423.49

180

Rear Support

710002860

$11.49

183

Tie-Rap Clip

710002896

$4.39

192

Rear Speaker

710003232

$139.99

206

RH Rear Flasher | Includes 498 to 499, Japan

710003566

$68.99

207

LH Rear Flasher | Includes 501 to 502, Japan

710003567

$68.99

208

LH Rear Tail Light | Includes 504 to 506, Japan

710003575

$402.49

209

RH Rear Tail Light | Includes 507 to 509, Japan

710003576

$402.49

213

GPS HARNESS - Call your local BRP dealership

710003822

Unavailable

214

Clamp

710003848

$11.49

224

Protector

710004281

$25.99

232

RUBBER PLUG - Call your local BRP dealership

710004656

Unavailable

233

Cargo Harness

710004664

$379.99

249

ANTENNA CABLE ASSEMBLY - Call your local BRP dealership

710004930

Unavailable

253

Short Antenna

710005084

$77.49
