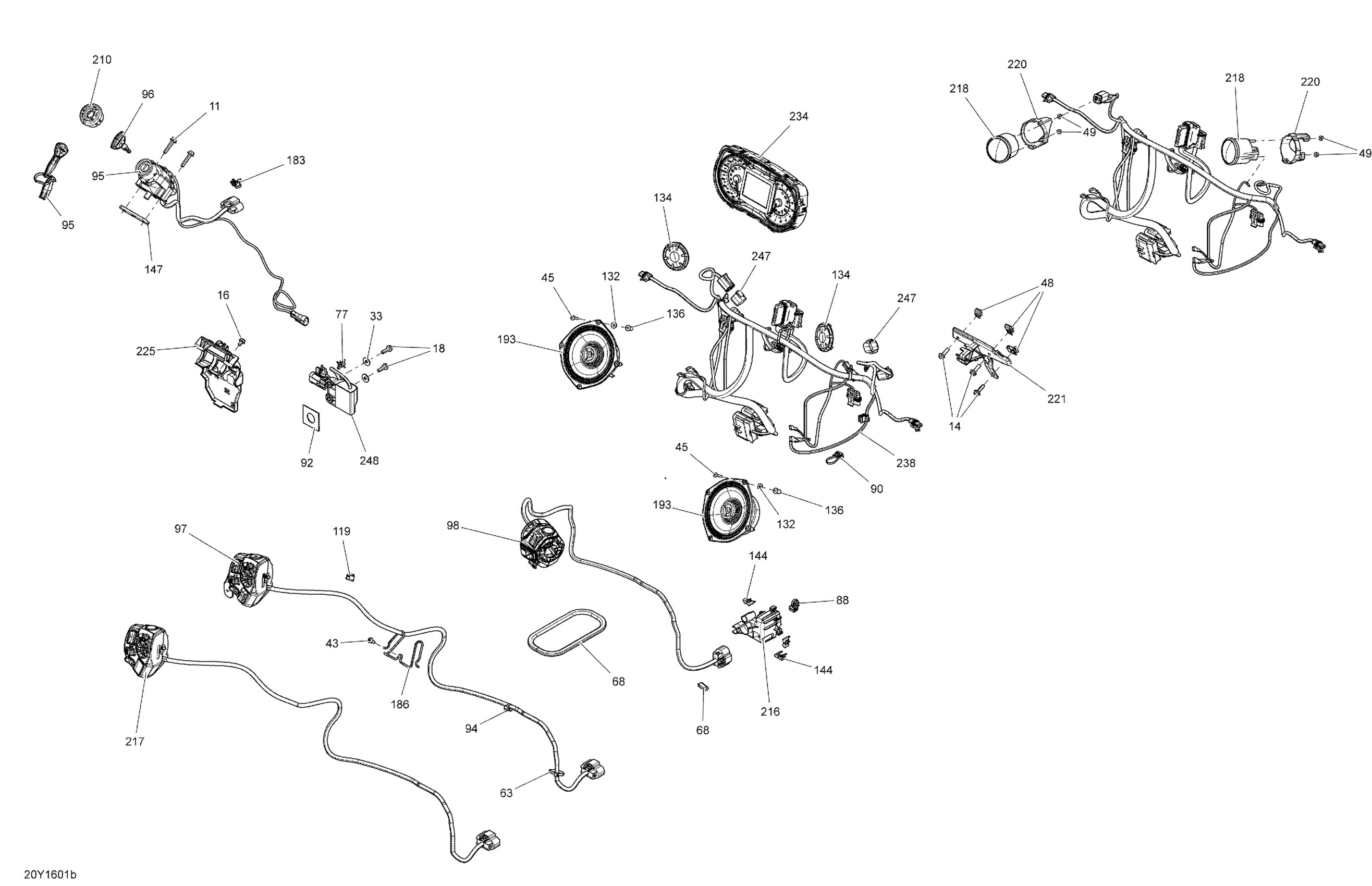

Can-Am RT, 2016 10- Electrical System - Accessories Diagram

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Forming Screw M6 X 10

210261050

$1.69

Hexagonal Head Screw

210262050

$2.11

Flat Washer 6 mm

234062410

$0.77

Torx Screw M5 X 14

250000742

$1.47

Torx-Truss M/S M4 X 20

250000783

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Serrated Flange Nut

250100142

$6.29

Tie Wrap 368 mm

293750008

$1.04

Trim 1000Mm Long

219704354

$15.99

Tie-Rap 173 mm

293750009

$1.04

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Clip Tie-Rap

293750063

$8.75

Rubber Bumper

293830091

$8.29

Tie-Rap 180 mm

414115200

$0.11

Ignition Switch with Harness

710005640

$306.99

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

Housing-Switch LH | SE6

710004589

$625.49

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

Clip

414227300

$1.67

Flat Washer

517225900

$0.18

GAUGE CAP - Call your local BRP dealership

705003421

$15.49

Well Rubber Nut M4 X 0.7

705003635

$6.14

Lock

710001222

$2.09

Switch Support

710001365

$20.99

Tie-Rap Clip

710002896

$4.39

Grommet Spindle

710003017

$14.83

Front Speaker

710003233

$92.99

Switch Cover

710003594

$16.49

Connector Support

710004086

$8.49

LH SWITCH HOUSING - Call your local BRP dealership | SM6

710004164

Unavailable

FUEL GAUGE - Call your local BRP dealership

710004208

Unavailable

Temp Gauge

710004210

$144.99

Housing Support

710004239

$3.49

CONNECTOR SUPPORT - Call your local BRP dealership

710004256

Unavailable

Wire Support

710004308

$13.49

Speed Prog | Includes 481 à 482

710005871

$1,139.99

Lens | XTP

415129349

$24.49

Dashboard Harness

710004755

$399.99

Connector Plug

710004904

$8.79

Dess Module

710004916

$179.99
