Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

4

Hex. Flange Screw M6 X 45

207664544

$1.46

5

Flat Washer, Stainless/Neoprene

211200055

$0.73

6

Flat Washer

224061201

$1.37

7

Hex. Flange Screw M6 X 130

230663084

$3.38

8

Hex. Nut M6

232061414

$0.53

9

Domed Nut M6

232361493

$2.11

10

Elastic Stop Nut M6, Brass

232561200

$4.23

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Flange Elastic Nut M6

233261434

$4.44

13

Hex. Flange Elastic Nut M6

233261494

$1.58

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Flat Washer M6, Stainless

234062600

$0.77

16

Stainless Steel Flat Washer

234062670

$2.11

17

Torx Truss Screw M6 X 20

250000303

$7.27

18

Torx Truss Screw M6 X 10

250000349

$7.51

19

Torx Truss Screw M6 X 20

250000350

$5.29

20

Torx Screw M6 X 12

250000454

$4.44

21

Torx Screw K50 X 16

250000720

$1.69

22

Torx Truss Screw M6 X 30

250000843

$2.11

23

Torx-Truss M/S M6 X 25

250000880

$2.11

24

Torx Truss M8 X 16

250000881

$2.11

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Ball Head Stud

250300016

$14.81

27

Ball Head Stud

250300039

$7.51

28

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

29

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

30

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

31

Tuflok Plastic Rivet

293150230

$1.47

32

Tie Wrap 142 mm

293750002

$1.25

33

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

34

Tie-Rap 180 mm

414115200

$0.11

35

Était/Was 414843500 Velcro #8MVA PSA 1"

219704406

$13.23

36

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

37

Lateral Console Foam

518327441

$6.99

40

Plastic Washer

705003207

$0.80

41

Heat Shield

705004173

$47.99

42

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$89.99

43

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$89.99

44

Hinge

708300006

$25.99

45

Gaz Shock

708300011

$79.99

49

RH Handle Pannel

708300027

$84.99

50

Under Tail Rear Wheel Cover

708300028

$49.99

52

TRIM TRUNK RH PLATINUM CHROME - Call your local BRP dealership | Model-Japan

708301179

Unavailable

52

Platinium Chrome LH Moulding | Model-Japan

708301178

$134.99

52

TRIM TRUNK RH B-322 - Call your local BRP dealership | Model RT with Package SPE

708301834

Unavailable

52

TRIM TRUNK LH B-322 - Call your local BRP dealership | Model RT with Package SPE

708301833

Unavailable

53

Back Plate Support

708300129

$11.49

54

License Plate Light Support

708300177

$14.49

55

LH Handle Pannel

708300209

$84.99

56

LH Inner Fender

708300327

$56.99

57

RH Inner Fender

708300328

$56.99

58

Deep Black LH Grille | Model-With Black Seat

708300381

Unavailable

59

Deep Black RH Grille | Model-With Black Seat

708300382

Unavailable

60

Gaz Shock

708300383

$79.99

61

Spacer

708300384

$14.49

62

Retainer Cable

708300385

$38.99

64

Spacer

708300394

$14.99

65

Seal

708300397

$38.99

66

Cap

708300405

$6.39

67

Latch Protector

708300514

$15.99

68

Moulding Trim LH | Model-Japan

708300650

$22.99

69

RH Moulding Trim | Model-Japan

708300651

$22.99

70

Inner Cover

708300678

$89.99

71

Cover Trunk RH, Vegas White B-313 | Model-Japan

708301191

$319.99

71

Cover Trunk LH, Vegas White B-313 | Model-Japan

708301190

$319.99

71

COVER TRUNK RH B-393 - Call your local BRP dealership | Model RT with Color Monolith Black

708302013

Unavailable

71

COVER TRUNK LH B-393 - Call your local BRP dealership | Model RT with Color Monolith Black

708302012

Unavailable

71

COVER TRUNK RH B-372 - Call your local BRP dealership | Model-Japan

708301405

Unavailable

71

COVER TRUNK LH B-372 - Call your local BRP dealership | Model-Japan

708301404

Unavailable

72

Cover Trunk Rear, Vegas White B-313 | Model-White

708300700

$309.99

72

COVER TRUNK R B-266 - Call your local BRP dealership

708301394

Unavailable

72

COVER TRUNK R B-372 - Call your local BRP dealership

708301395

Unavailable

73

Arm Cover RH, Vegas White B-313 | Model-White

708300709

$244.99

73

Arm Cover LH, Vegas White B-313 | Model-White

708300708

$244.99

73

TRIM REST ARM RH B-266 - Call your local BRP dealership

708301409

Unavailable

73

TRIM REST ARM LH B-266 - Call your local BRP dealership

708301408

Unavailable

73

TRIM REST ARM RH B-372 - Call your local BRP dealership

708301411

Unavailable

73

TRIM REST ARM LH B-372 - Call your local BRP dealership

708301410

Unavailable

74

Antenna Cap LH, Vegas White B-313 | Model-White

708300716

$15.99

74

CAP ANTENNA LH B-266 - Call your local BRP dealership

708301412

Unavailable

74

CAP ANTENNA LH B-372 - Call your local BRP dealership

708301413

Unavailable

75

Rear Support Ass'y | Includes 160 to 162

708300781

$279.99

76

LH Flash Support | Model-Japan

708300979

$19.49

77

RH Flash Support | Model-Japan

708300980

$16.99

78

TRIM TRUNK LH CHROME - Call your local BRP dealership | Model-Japan

708301014

Unavailable

79

TRIM TRUNK RH CHROME - Call your local BRP dealership | Model-Japan

708301015

Unavailable

80

Cargo Box Inner LH

708301016

$92.99

81

Cargo Box Inner RH

708301017

$92.99

82

Cover Interior RH

708301022

$83.99

83

Cover Interior LH

708301023

$83.99

84

Retaining Washer | Model-Japan

708301024

$2.75

85

Grommet

708301025

$5.19

86

License Plate Support | Model-Japan

708301523

$54.99

87

Sound Box LH

708301555

$80.49

88

Sound Box RH

708301556

$80.49

89

Fender Rear

708302277

$204.99

90

Rear Pannel, Vegas White B-313 | Model-White

708301564

$329.99

90

Bare, Rear Panel

708301558

$139.99

90

PANEL R B-372 - Call your local BRP dealership

708301572

Unavailable

91

Latch Ass'y LH

708301640

$154.99

92

Latch Ass'y RH

708301641

$154.99

93

Center Latch

708301642

$154.99

94

Storage Bin Ass'y Rear

708301798

$499.99

95

Radio Antenna Base RH, 11.7mm Dia.

708302047

$22.49

96

Male Housing, 2 Circuits

710000667

$8.32

97

Main Control (WO lock cylinder)

708302620

$164.99

98

Seal, 1PC = 3M

293830188

$39.99

99

Seal, 1PC = 3M

293830188

$39.99

100

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$142.99

101

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$142.99

102

Pressure Nut

250100163

$0.98

103

Black Carbon Moulding | Model RT with Package SPE

708301822

$129.99

104

Central Moulding Trim

708300652

$14.99

105

Pressure Nut

250100163

$0.98

103a

MOULDING KIT - Call your local BRP dealership | Model RT with Package LTD / S

219400192

Unavailable

98a

Seal, 1PC = 3M

293830188

$39.99

99a

Seal, 1PC = 3M

293830188

$39.99

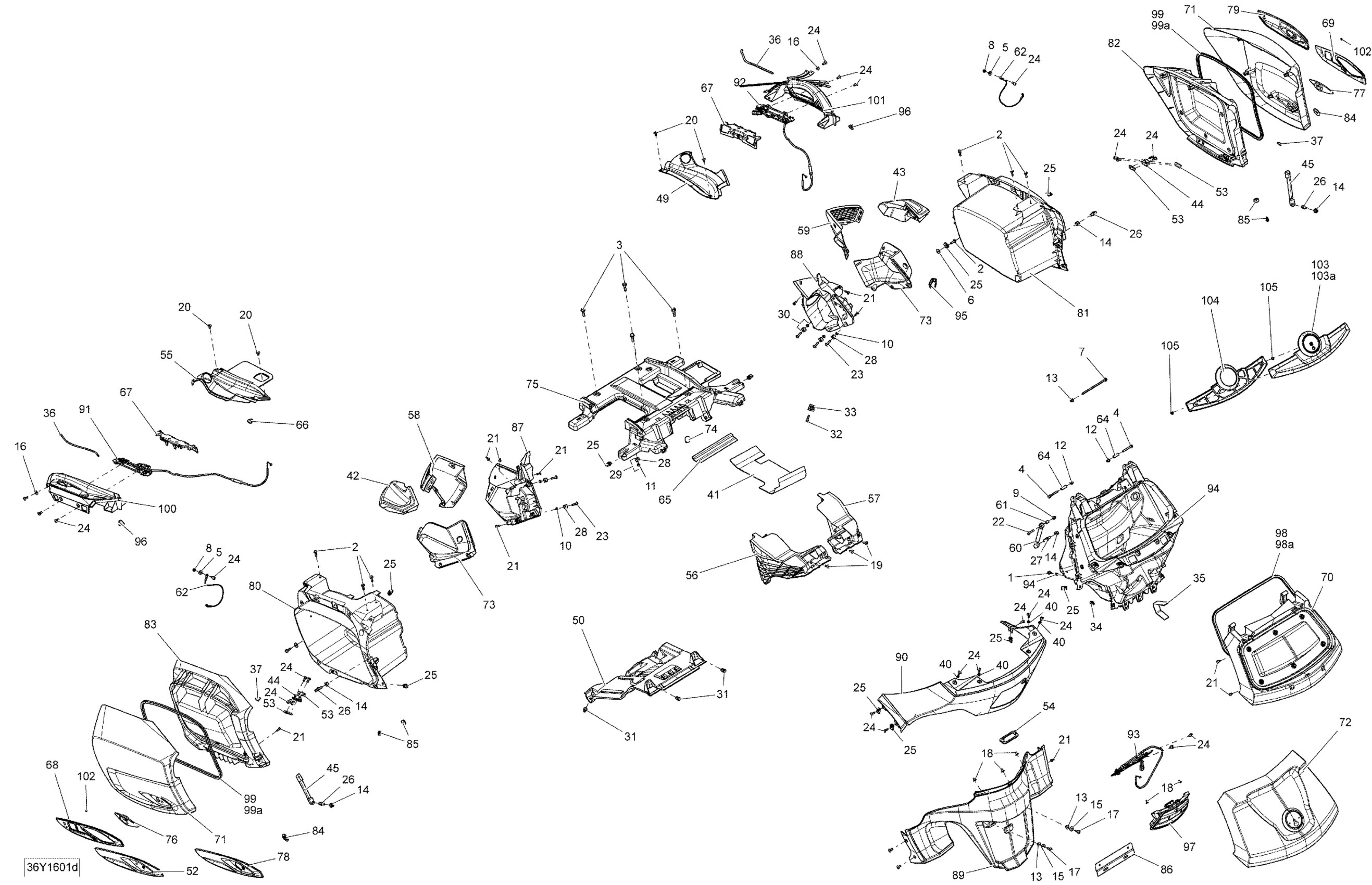

Can-Am RT, 2016 09- Luggages - Except Package Standard (Japan) Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Screw M8 X 30, Scotch Grip

Hex. Flange Screw M6 X 45

Flat Washer, Stainless/Neoprene

Flat Washer

Hex. Flange Screw M6 X 130

Hex. Nut M6

Domed Nut M6

Elastic Stop Nut M6, Brass

Hex. Elastic Stop Nut M6

Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Flat Washer M6, Stainless

Stainless Steel Flat Washer

Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 10

Torx Truss Screw M6 X 20

Torx Screw M6 X 12

Torx Screw K50 X 16

Torx Truss Screw M6 X 30

Torx-Truss M/S M6 X 25

Torx Truss M8 X 16

Panel Nut M6 X 1.0

Ball Head Stud

Ball Head Stud

M6 Nut Housing Ass'y | Includes 290 to 290b

M6 Nut Housing Ass'y | Includes 7r to 7r2

Housing Nut M6 | Included 550f to 550f2

Tuflok Plastic Rivet

Tie Wrap 142 mm

Tie-rap Mount (square - self-adhsive)

Tie-Rap 180 mm

Était/Was 414843500 Velcro #8MVA PSA 1"

Vinyl Tubing, Low Temp 3000Mm Long

Lateral Console Foam

Plastic Washer

Heat Shield

Deep Black, LH Arm Rest | Model-With Black Seat

Deep Black, RH Arm Rest | Model-With Black Seat

Hinge

Gaz Shock

RH Handle Pannel

Under Tail Rear Wheel Cover

TRIM TRUNK RH PLATINUM CHROME - Call your local BRP dealership | Model-Japan

Platinium Chrome LH Moulding | Model-Japan

TRIM TRUNK RH B-322 - Call your local BRP dealership | Model RT with Package SPE

TRIM TRUNK LH B-322 - Call your local BRP dealership | Model RT with Package SPE

Back Plate Support

License Plate Light Support

LH Handle Pannel

LH Inner Fender

RH Inner Fender

Deep Black LH Grille | Model-With Black Seat

Deep Black RH Grille | Model-With Black Seat

Gaz Shock

Spacer

Retainer Cable

Spacer

Seal

Cap

Latch Protector

Moulding Trim LH | Model-Japan

RH Moulding Trim | Model-Japan

Inner Cover

Cover Trunk RH, Vegas White B-313 | Model-Japan

Cover Trunk LH, Vegas White B-313 | Model-Japan

COVER TRUNK RH B-393 - Call your local BRP dealership | Model RT with Color Monolith Black

COVER TRUNK LH B-393 - Call your local BRP dealership | Model RT with Color Monolith Black

COVER TRUNK RH B-372 - Call your local BRP dealership | Model-Japan

COVER TRUNK LH B-372 - Call your local BRP dealership | Model-Japan

Cover Trunk Rear, Vegas White B-313 | Model-White

COVER TRUNK R B-266 - Call your local BRP dealership

COVER TRUNK R B-372 - Call your local BRP dealership

Arm Cover RH, Vegas White B-313 | Model-White

Arm Cover LH, Vegas White B-313 | Model-White

TRIM REST ARM RH B-266 - Call your local BRP dealership

TRIM REST ARM LH B-266 - Call your local BRP dealership
