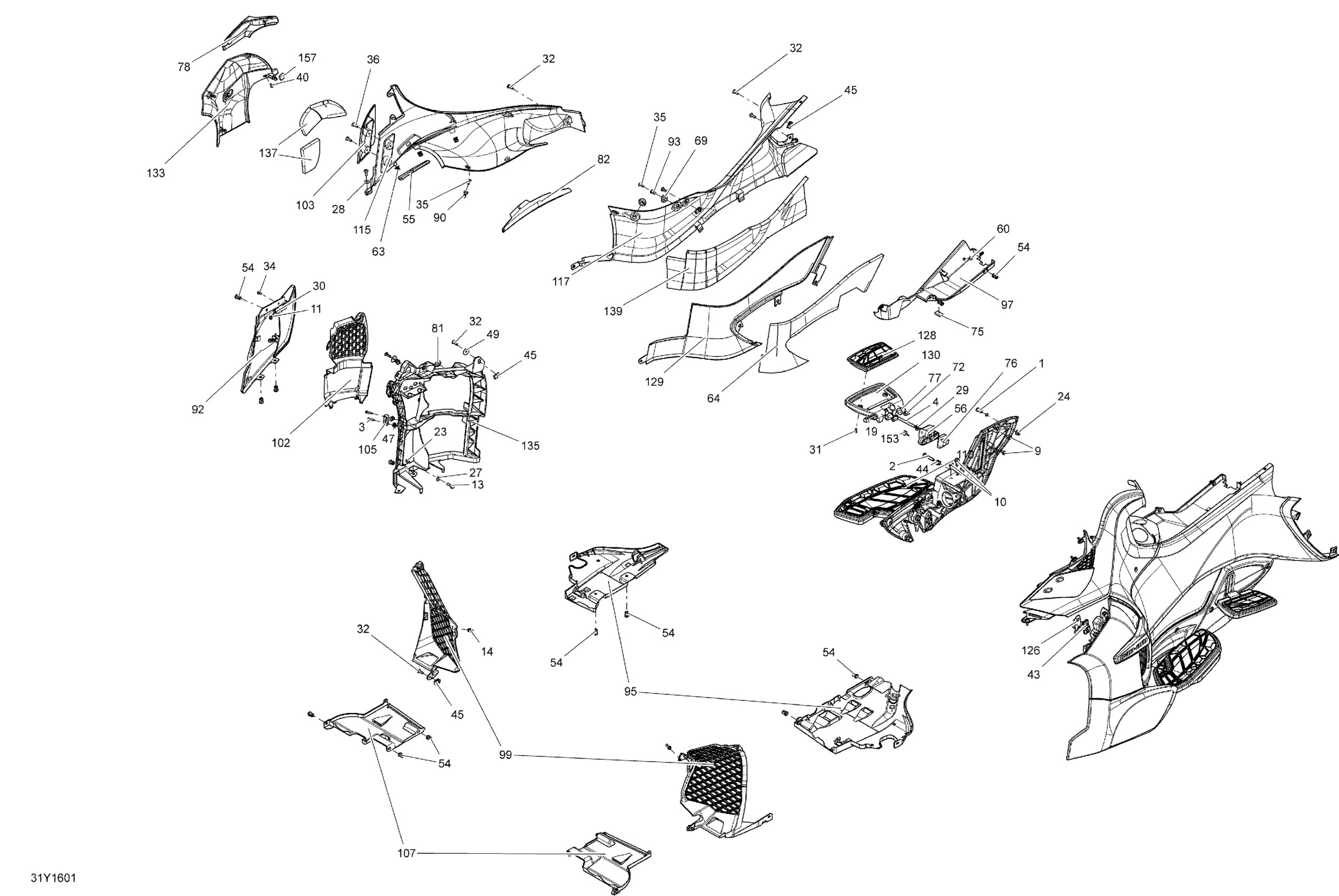

Can-Am RT, 2016 09- Body And Accessories - Side Panels Diagram

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Socket Screw M8 X 45

205484560

$2.11

Hex. Screw M5 X 20

207152060

$1.47

Hex. Screw M8 x 90

207189060

$3.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex Screw Washer Head M8 X 20

207582054

$3.17

Hex.Flange Screw M5 X 20

207652044

$1.90

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M8 X 110

230681034

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281434

$2.11

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Spring Washer M8

234281704

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Allen Plastite Screw #12

250000099

$2.19

Torx Truss Screw M6 X 20

250000350

$5.29

Torx Screw M6 X 12

250000454

$4.44

Torx Screw, K50X16

250000459

$4.29

Torx Truss Screw M6 X 20

250000488

$2.11

Torx-Truss Pt K40 X 16

250000759

$2.11

Panel Nut M8 X 1.25

250100069

$4.29

Panel Nut M8

250100111

$4.29

Panel Nut M6 X 1.0

250100198

$2.11

Panel Nut M5 X 0.8

250100176

$4.09

Washer M6

250200029

$2.50

Tuflok Plastic Rivet

293150230

$1.47

Seal Tray 1000Mm Long

219704368

$13.99

Crystal Sliding Block | Model-RT STD

705008518

$48.99

Tie Rap Mount

293750044

$2.49

Edge Clip

517302785

$0.88

RH LOWER PANEL FOAM - Call your local BRP dealership

518324756

Unavailable

LH Lower Panel Foam

518327490

$28.99

Oval Washer

705000321

$5.61

Bushing

705002153

$11.99

Neoprene Seal (1PAC=3M)

219704364

$27.49

Adjuster Block

705003013

$43.99

Rubber Bushing

705003018

$10.49

Black Carbon Rh Lat Pan Cap | Model with Package SPE

705010215

$78.99

Black Carbon Lh Lat Pan Cap | Model with Package SPE

705010214

$78.99

Platine Side Panel Cap Kit | Model-RT S

705007441

$78.99

Platine RH Panel Cap | Model-RT S

705007442

$78.99

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

Grommet

705003264

$4.09

RH Upper Side Panel Grille

705003386

$30.99

LH Upper Side Panel Grille

705003385

$30.99

Angled Knob

705003746

$5.69

RH Water Deflector Ass'y

705003760

$45.99

LH Water Deflector Ass'y

705003759

$45.99

Knob

705003842

$5.82

RH Deflector Pannel

705004611

$20.99

LH Deflector Pannel

705004610

$27.99

RH Tank Cover Ass'y

705004632

$114.99

LH Tank Cover Ass'y

705004631

$109.99

RH Radiatior Moulding

705004790

$104.99

LH Radiatior Moulding

705004789

$104.99

RH Side Grille

705004803

$30.99

LH Side Grille

705007307

$30.99

RH Lower Air Deflector

705004925

$43.99

LH Lower Air Deflector

705004924

$43.99

Grommet Ass'y

705005055

$13.49

RH Skid Plate

705005439

$28.49

LH Skid Plate

705005438

$28.49

RH Front Footboard Pad | Model-RT LTD SE6

705005728

$99.99

LH Front Footboard Pad | Model-RT LTD SE6

705005731

$99.99

Pivot Bracket | Model-RT LTD SE6

705005861

$20.99

Bare, RH Up Side Pan | Model-White

705006212

$124.99

White LH Upper Panel | Model-White

705006168

$299.99

PANEL_BODY UP R B-266 - Call your local BRP dealership | Model-Steel Black Met

705008730

Unavailable

Bare, LH Upper Side Pan | Model-Steel Black Met

705006211

$124.99

Orbital Blue RH Upper Side Panel

705003956

$299.99

Orbital Blue LH Upper Side Panel

705003953

$299.99

Pearl Red RH Upper Panel | Model-Intense Red Pearl

705008731

$274.99

White RH Upper Lateral Panel | Model-White

705006177

$359.99

White LH Lateral Panel | Model-White

705006178

$359.99

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008734

Unavailable

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008732

Unavailable

Bare, RH Panel

705006215

$164.99

PANEL_BODY LH B-393 - Call your local BRP dealership

705010200

Unavailable

Pearl Red RH Lateral Panel | Model-Intense Red Pearl

705008735

$274.99

Pearl Red LH Lateral Panel | Model-Intense Red Pearl

705008733

$274.99

Orbital Blue RH Lateral Panel

705003989

$359.99

Orbital Blue LH Lateral Panel

705004517

$359.99

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$27.99

Panel Support

705007375

$39.99

RH Rubber Rear Pad

705007472

$48.99

LH Rubber Rear Pad

705007461

$49.99

RH Lower Pannel

705007736

$83.99

LH Lower Pannel

705006820

$78.99

SILVER REAR FOOTREST - Call your local BRP dealership | Model-RT STD

705008530

Unavailable

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$224.99

Carbon Black, Rear Footrests | Model-RT S

705011155

$134.99

Bare, RH Side Panel | Model-White

705008992

$114.99

Vegas White Pearl, LH Side Panel | Model-White

705008999

$249.99

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008725

Unavailable

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008724

Unavailable

PANEL_BODY RH B-393 - Call your local BRP dealership

705010195

Unavailable

PANEL_BODY LH B-393 - Call your local BRP dealership

705010194

Unavailable

Orbital Blue RH Side Panel

705009018

$259.99

Orbital Blue LH Side Panel

705009017

$259.99

Pearl Red RH Side Panel | Model-Intense Red Pearl

705008727

$244.99

Bare, LH Side Panel | Model-Intense Red Pearl

705008991

$114.99

RH Support

705009064

$124.99

LH Support

705009063

$119.99

Side Foam RH

705009312

$20.99

Side Foam LH

705009311

$20.99

RH FOAM - Call your local BRP dealership

705009314

Unavailable

LH FOAM - Call your local BRP dealership

705009313

Unavailable

Rubber Stopper

708000759

$4.19

Rubber Pad

293830143

$18.49
