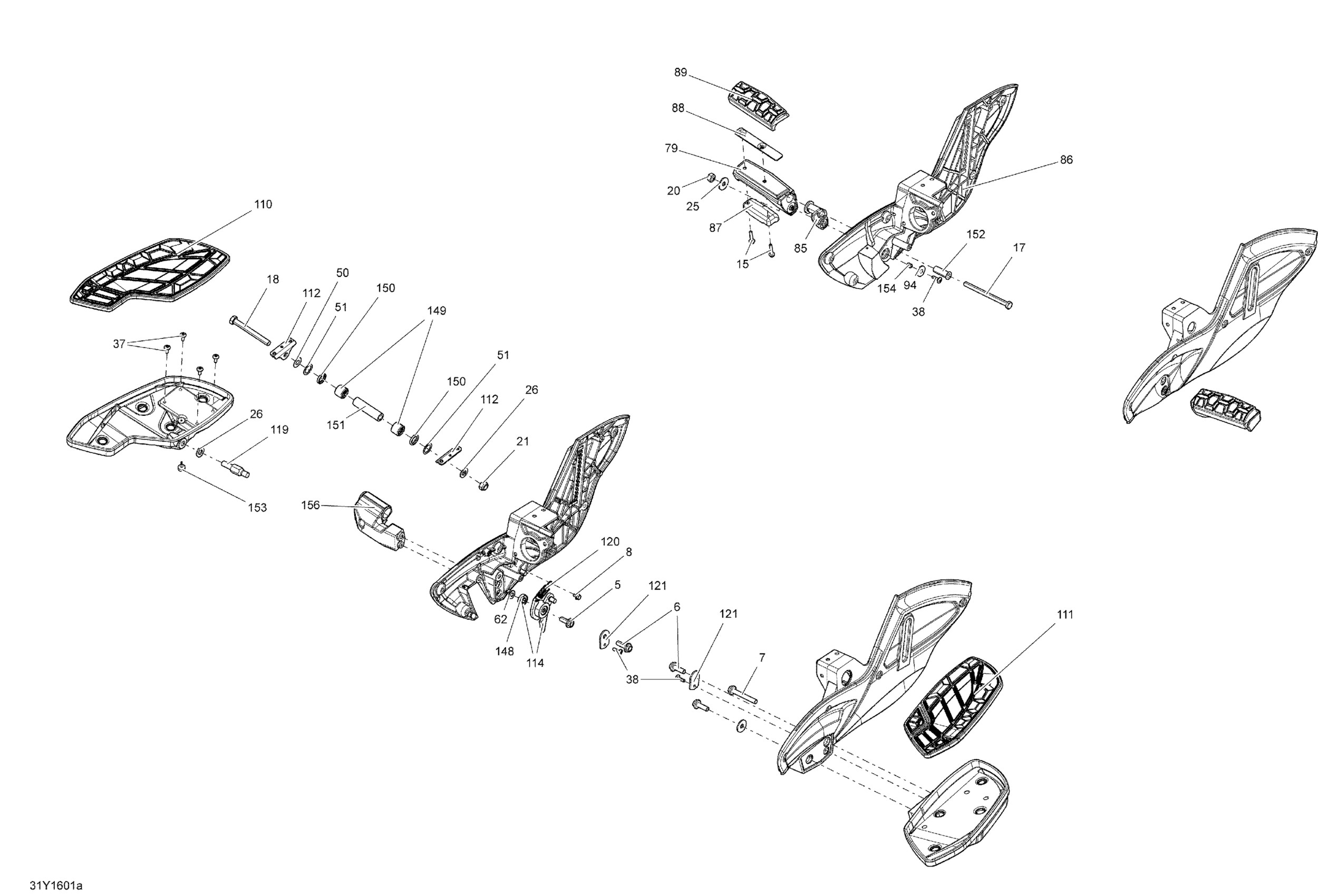

Can-Am RT, 2016 09- Body And Accessories - Footrest Diagram

Hex. Flange Screw M10 X 25

207502546

$2.11

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

Hex. Screw M10 X 115 | Model-RT STD SM6

230001586

$7.51

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

Hexagonal Screw M12 X 105

230020586

$7.51

Elastic Stop Nut M10

232500416

$1.90

Elastic Stop Nut M12

232521416

$1.69

Flat Washer 10 mm, Stainless

234002600

$2.22

Flat Washer

234021430

$2.11

Torx Head Screw M6 X 16

250000717

$2.11

Torx Screw M6 X 20

250000722

$1.68

Hardened Washer

706200281

$2.85

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.25

Washer

503183800

$3.28

Silver RH Front Footrest | Model-RT STD

705004711

$61.99

Silver LH Front Footrest | Model-RT STD

705004709

$61.99

RH FRONT FOOTREST - Call your local BRP dealership | Model-RT S SE6

705005726

Unavailable

Black Carbon Front Footrest LH | Model-RT S SE6

705005729

$199.99

Black RH Front Footrest | Model-RT S SM6

705006836

$61.99

Black LH Front Footrest | Model-RT S SM6

705006833

$61.99

Chrome RH Front Footrest | Model-RT LTD SE6

705006392

$389.99

CHROME LH FRONT FOOTREST - Call your local BRP dealership | Model-RT LTD SE6

705006390

Unavailable

RH Rubber Bushing | Model-RT STD

705003615

$6.99

LH Rubber Bushing | Model-RT STD

705003616

$8.49

Silver LH Footrest Support | Model-RT STD

705008521

$329.99

SILVER LH FOOTREST SUPPORT - Call your local BRP dealership | Model-RT STD

705008526

Unavailable

Black LH Footrest Support | Model-RT S SE6

705005714

$409.99

Black RH Footboard Support | Model-RT S SE6

705007972

$379.99

Black LH Footrest Support | Model-RT S SM6

705008525

$409.99

Black RH Footrest Support | Model-RT S SM6

705008529

$409.99

Chrome, RH Footrest Support | Model-RT LTD SE6

705013491

$819.99

Chrome LH Footrest Support | Model-RT LTD SE6

705006395

$859.99

Vibration Dampener | Model-RT STD

705003730

$48.99

Front Pad Plate | Model-RT STD

705003731

$17.99

RH Front Footpeg Pad | Model-RT STD

705003245

$39.99

LH Front Footpeg Pad | Model-RT STD

705003732

$39.99

Grommet

705003932

$2.89

RH Front Footboard Pad | Model-RT LTD SE6

705005728

$99.99

LH Front Footboard Pad | Model-RT LTD SE6

705005731

$99.99

Pivot Bracket | Model-RT LTD SE6

705005861

$20.99

Latch Ass'y | Model-RT LTD SE6

705006014

$239.99

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$27.99

Spring

705006533

$18.49

Retaining Plate | Model-RT LTD SE6

705006557

$10.49

Bearing

705600458

$19.99

Bearing

706000447

$12.69

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

Bushing

706000731

$15.82

Inner Bushing | Model-RT STD

706201151

$20.99

Rubber Stopper

708000759

$4.19

Bushing

709000162

$13.76

Pivot Support | Model-RT LTD SE6

705005723

$93.99
