Description

Price

1

Hex. Flange Screw M5 X 10

207551044

$4.12

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 75

207687544

$7.41

7

Hex. Flange Screw M10 X 140

230604034

$6.77

10

Hex. Flange Nut M6

233061414

$1.68

11

Hex. Flange Elastic Nut M10

233201434

$2.09

12

Hex. Flange Elastic Nut M6

233261494

$1.58

15

Stainless Steel Flat Washer

234062670

$2.11

19

Torx Truss Screw M6 X 20

250000350

$5.29

21

Panel Nut M6 X 1.0

250100198

$2.11

22

Ball Bearing

293350115

$12.11

27

Tie-Rap 180 mm

414115200

$0.11

28

Insert

293450275

$12.99

31

Urethane Cushion

503191609

$18.49

32

Compressor Bracket

503193103

$4.69

33

Spring Stopper

503193781

$18.49

34

Cap

503193782

$10.49

36

Lower Belt Guard

705002092

$48.99

40

Adhesive Spacer

705003696

$4.19

46

Belt Guard Moulding

705009446

$35.99

47

Hose Retainer 13 mm

705600232

$11.11

48

Shock Absorber Shaft

706000409

$49.99

49

Spacer

706000410

$13.99

50

Air Damper Kit

219800175

$291.49

51

Compressor Isolator

706000631

$13.99

52

Air Valve

706002797

$18.49

53

Pneumatic Connector

706000735

$19.49

54

Ckeck Valve

706000831

$38.99

55

Connector

706000869

$34.99

56

Hose 4.32Mm 3000Mm Long

219704415

$55.99

56

Hose

706000891

$9.69

56

Hose

706000893

$0.02

58

Elbow 90°

706000928

$27.99

59

Support Plate

706001082

$19.49

60

Spacer

706001152

$9.49

61

Air Manifold Ass'y

706001175

$299.99

62

Swing Arm Axle

706001182

$93.99

63

Compressor

706001349

$469.99

64

Sleeve

706001366

$1.26

65

Shock Absorber Spring

706001542

$61.49

66

Swing Arm

706001574

$455.99

67

Position Sensor

710001651

$174.99

68

Tubing 6 Mm 3000Mm Long

219704425

$13.75

69

Bolt M20

706001579

$16.87

70

Shock Absorber

706001552

$116.49

74

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

75

Hex. Forming Screw M6 X 10

210261050

$1.69

76

Elbow 90°

706001018

$28.99

77

Jam Nut M20

250100119

$4.13

78

Tubing 6 Mm 3000Mm Long

219704425

$13.75

79

Socket Head Screw M4 X 12

205041254

$2.11

80

Tie Rod

706202505

$23.99

81

Stainless, Torx Screw M6 X 30

250000842

$2.11

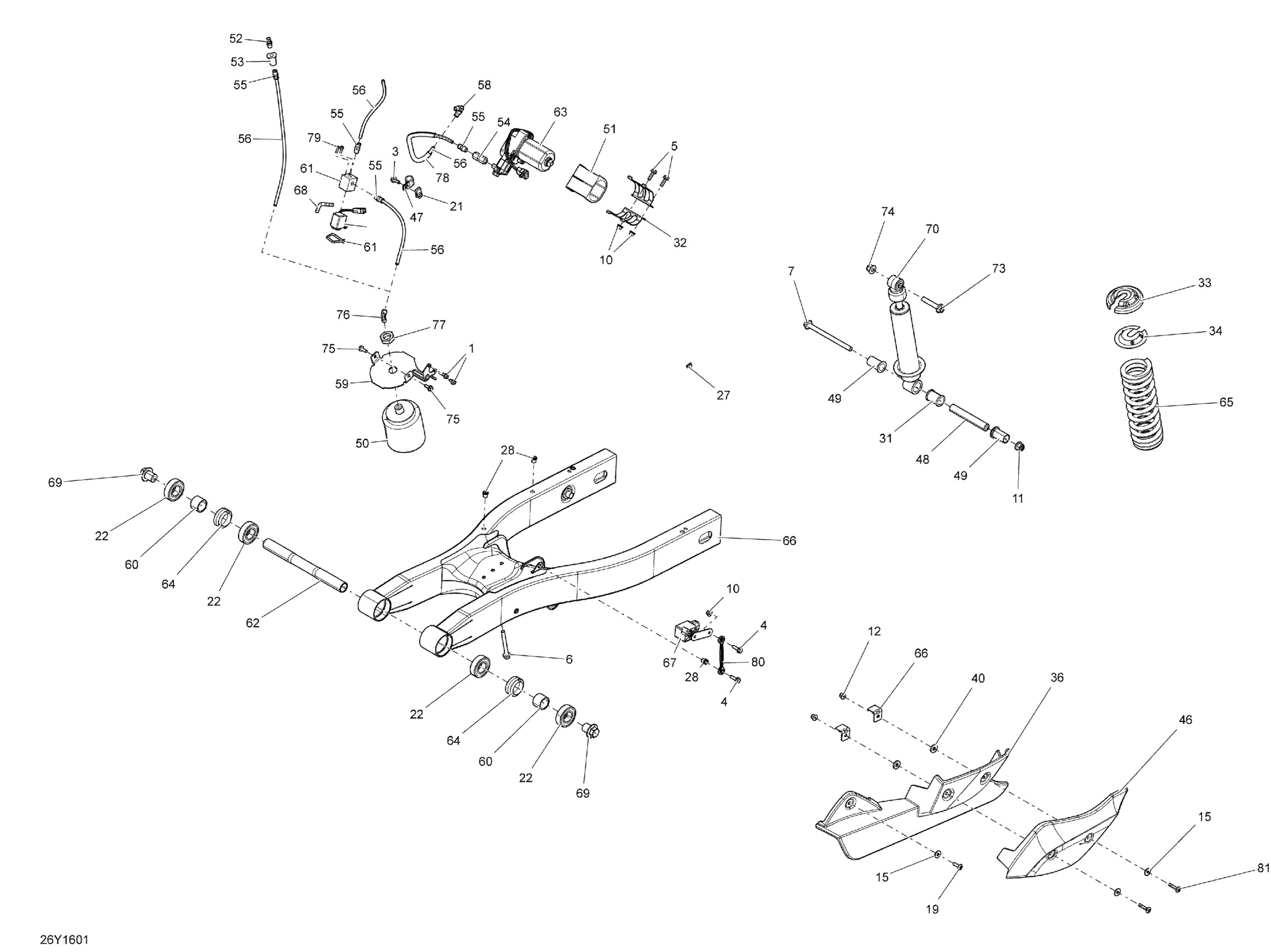

Can-Am RT, 2016 08- Suspension, Rear Diagram

Hex. Flange Screw M5 X 10

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Screw M6 X 20

Hex. Flange Screw M8 X 75

Hex. Flange Screw M10 X 140

Hex. Flange Nut M6

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Torx Truss Screw M6 X 20

Panel Nut M6 X 1.0

Ball Bearing

Tie-Rap 180 mm

Insert

Urethane Cushion

Compressor Bracket

Spring Stopper

Cap

Lower Belt Guard

Adhesive Spacer

Belt Guard Moulding

Hose Retainer 13 mm

Shock Absorber Shaft

Spacer

Air Damper Kit

Compressor Isolator

Air Valve

Pneumatic Connector

Ckeck Valve

Connector

Hose 4.32Mm 3000Mm Long

Hose

Hose

Elbow 90°

Support Plate

Spacer

Air Manifold Ass'y

Swing Arm Axle

Compressor

Sleeve

Shock Absorber Spring

Swing Arm

Position Sensor

Tubing 6 Mm 3000Mm Long

Bolt M20

Shock Absorber

Hex. Flange Elastic M10 x 1.5

Hex. Forming Screw M6 X 10

Elbow 90°

Jam Nut M20

Tubing 6 Mm 3000Mm Long

Socket Head Screw M4 X 12

Tie Rod

Stainless, Torx Screw M6 X 30
