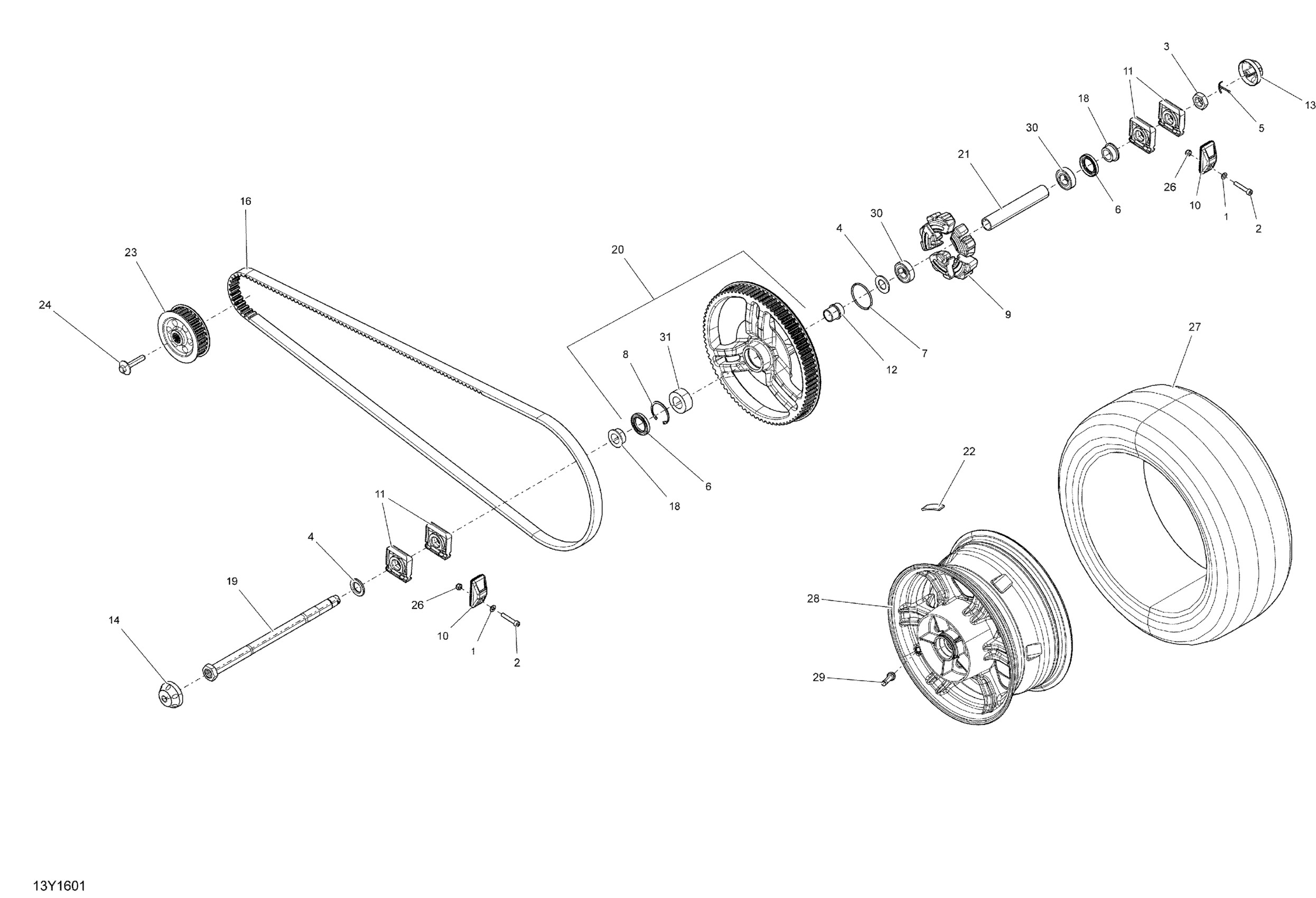

Can-Am RT, 2016 08- Drive System, Rear Diagram

#

Description
Price

1

Flat Washer 8 mm

234081410

$0.83

2

Socket Screw DIN.912

250000713

$2.85

3

Hex. Jam Nut M24

250100170

$12.12

4

Flat Washer

250200163

$3.49

5

Cotter Pin

250400047

$2.32

6

Seal

293200094

$10.33

7

O-Ring

293300124

$3.38

8

Circlip

293370053

$9.95

9

Damper

705500736

$24.49

10

Adjustment Support

705502450

$15.89

11

Sliding Block

705502448

$14.82

12

Spacer

705500853

$23.49

13

RH Cap

705501022

$9.19

14

LH Cap

705501081

$9.27

16

Drive Belt

705501304

$409.99

18

Spacer

705501602

$19.49

19

Rear Wheel Axle

705501691

$99.49

20

Silver - Pulley Ass'y, 79 Teeth | Model-RS STD

705502015

$509.99

20

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

21

Spacer Tube

705502093

$17.59

22

Self Adhesive Weight, 5G 20mm

705502106

$4.69

23

Sprocket 28 Teeth

705503239

$159.99

24

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

26

Hex. Elastic Nut M8

250100141

$2.00

27

Rear Tire 225/50R15

705503310

$201.49

28

RIM_15 INCH M-519 X 7 - Call your local BRP dealership | Package-STD

705502089

Unavailable

28

Black, Rear Rim

705501992

$391.99

29

Rim Valve With Cap

705400193

$8.69

30

Ball Bearing

293350115

$12.11

31

Double Row Bearing

293350065

$33.99
