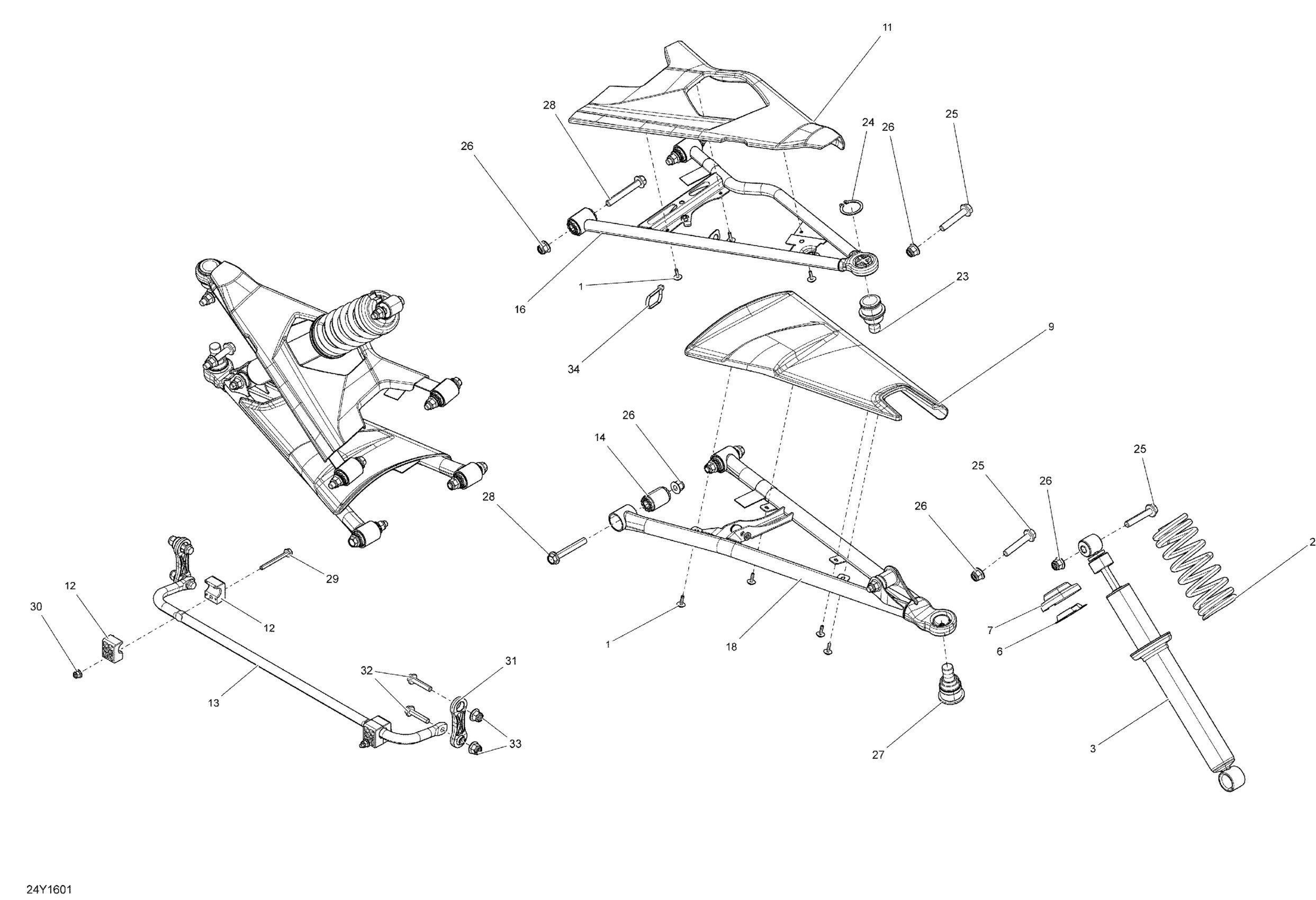

Can-Am RT, 2016 07- Suspension, Front Diagram

#

Description
Price

1

Screw M4 X 16

250000725

$3.49

2

SPRING - Call your local BRP dealership | RT STD

706001829

Unavailable

3

Shock | RT LTD

706001549

$116.49

6

Cap

706200785

$4.69

7

Spring Stopper

706200881

$12.99

9

RH Lower Air Deflector

706201320

$22.99

9

LH Lower Air Deflector

706201319

$22.99

11

Black RH Upper Air Deflector | Model-RS STD

706201322

$22.99

11

Black LH Upper Air Deflector | Model-RS STD

706201321

$22.99

12

Stabilizer Bushing

706201391

$9.21

13

Sway Bar

706202800

$90.99

14

Suspension Arm Bushing

706201519

$13.76

16

RH Upper Arm | RT

706201732

$158.99

16

LH Upper Suspension Arm

706203433

$158.99

18

RH Lower Suspension Arm

706201734

$158.99

18

LH Lower Suspension Arm

706201733

$158.99

23

Ball Joint

706202507

$61.99

24

Circlip

293370035

$2.64

25

Hex. Flange Screw M10 X 55

207605554

$7.62

26

Flange Elastic Nut M10

233201466

$3.17

27

Ball Joint

706202508

$42.49

28

Hex. Flange Screw M10 X 70

207607056

$4.29

29

Hex. Flange Screw M6 X 60

250000778

$4.44

30

Hex. Flange Elastic Nut M6

233261466

$2.00

31

Tie Rod

706200671

$20.99

32

Hex. Flange Screw M8 X 40

207684054

$2.11

33

Elastic Flange Nut M8

233281464

$1.01

34

Tie Wrap 368 mm

293750008

$1.04
