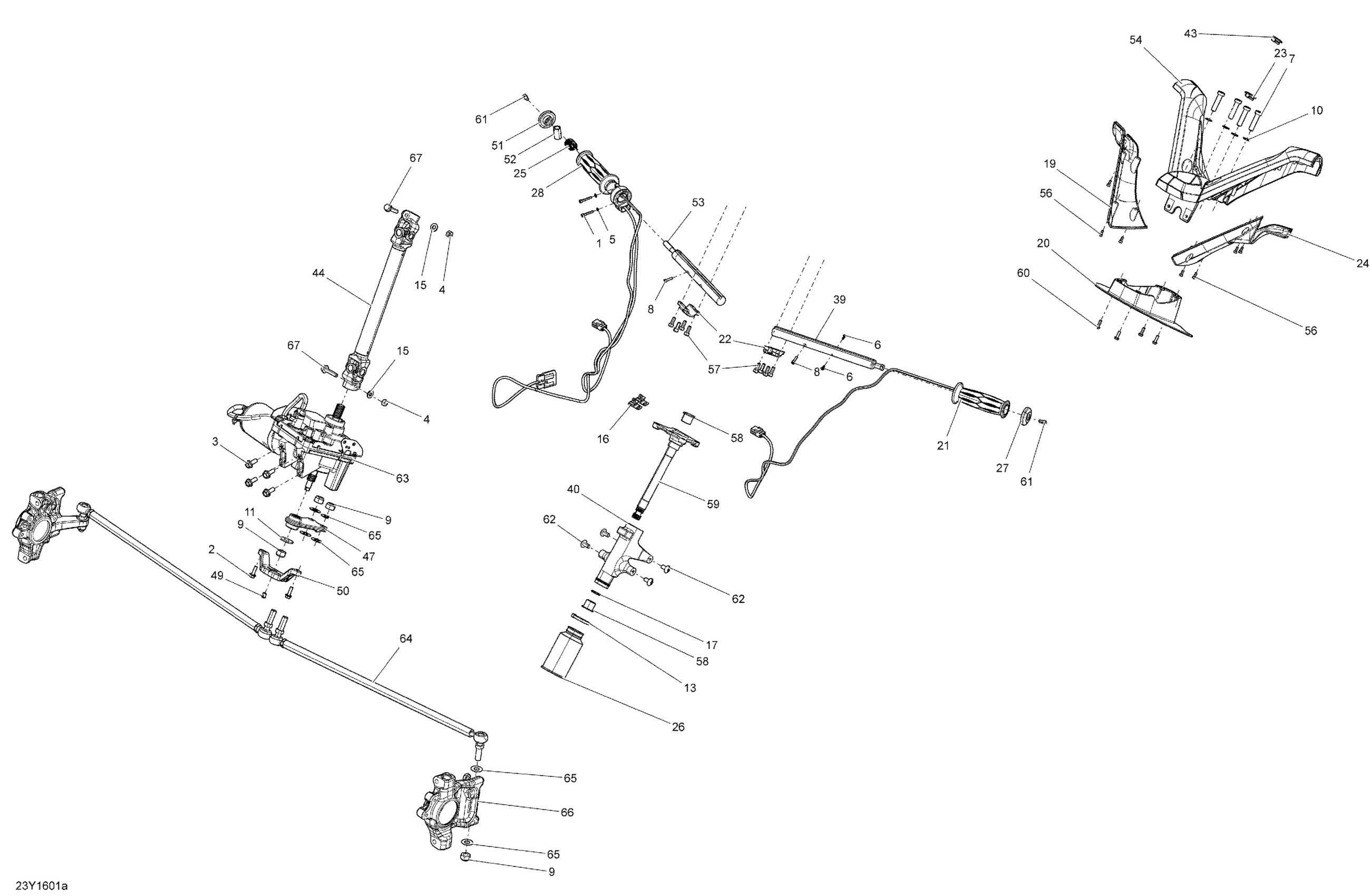

Can-Am RT, 2016 07- Steering - SM6 Diagram

#

Description
Price

1

Socket Screw, M4 X 25

205042594

$2.11

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Nut M8

232081417

$3.09

5

Flat Washer 4 mm

234040600

$0.55

6

Torx Cutting Screw, M4 X 10

250000453

$3.89

7

Thin Socket Screw M10 X 40, Scotch Grip | RS

250000456

$7.51

8

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

9

Hex. Elastic Hex. Nut M12

250100089

$0.46

10

Stainless Flat Washer, 10 mm

250200105

$2.11

11

Flat Washer, 12 mm

250200113

$4.44

13

Tie-Rap 180 mm

414115200

$0.11

15

Washer

503189157

$3.28

16

Housing Support

515175283

$9.19

17

O-Ring

709000089

$15.89

19

RH Steering Cover | Model-RT

709400578

$17.49

20

Handlebar Central Cover | Model-RT

709400579

$17.49

21

Heating Handle Grip

709400625

$195.99

22

Handlebar Clamp

709400631

$60.49

23

CRYSTAL SILVER CAP - Call your local BRP dealership | RS STD

709400680

Unavailable

24

LH Steering Cover | Model-RT M-3

709400741

$17.49

25

Spring

709401937

$19.99

26

Bellows

709400790

$13.49

27

Handlebar End Piece LH

709400793

$27.99

28

Heated Throttle Grip

709402720

$289.99

39

LH Handlebars

709401152

$61.49

40

Steering Column Support | Model-RT, Include Cushions

709401214

$109.99

43

Deep Black Cap | Model-RS S

709400923

$14.49

44

Lower Steering Column | Model-RT

709401411

$154.99

47

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

49

Sensor Sleave

709401527

$3.09

50

SENSOR SUPPORT - Call your local BRP dealership

709401574

$26.99

51

Handlebar End-Piece RH

709401800

$26.99

52

Bushing

709401801

$2.53

53

Handlebars

709401938

$41.49

54

CRYSTAL SILVER HANDLEBAR - Call your local BRP dealership | Model-RT STD

709400907

$144.99

54

Carbon Black, Handlebar, Texture | Model-RT LTD

709401919

$206.49

56

Screw-Socket Hd.DIN.912 | RS

205041054

$1.90

57

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Steering Colum, Black

709401682

$159.99

60

Hex. Forming Screw M5 X 16

210251650

$1.15

61

Screw-Socket Hd.Din.912

205061054

$1.90

62

Torx Truss Screw M8 X 16

250000746

$3.38

63

Power Steering

709401564

$1,684.99

64

Tie Rod Ass'y

709401821

$158.99

65

Hardened Washer

706200281

$2.85

66

RH Knuckle

709401864

$190.49

66

LH Knuckle

709401865

$195.99

67

Hex. Flange Screw M8 X 35

250001021

$4.44
