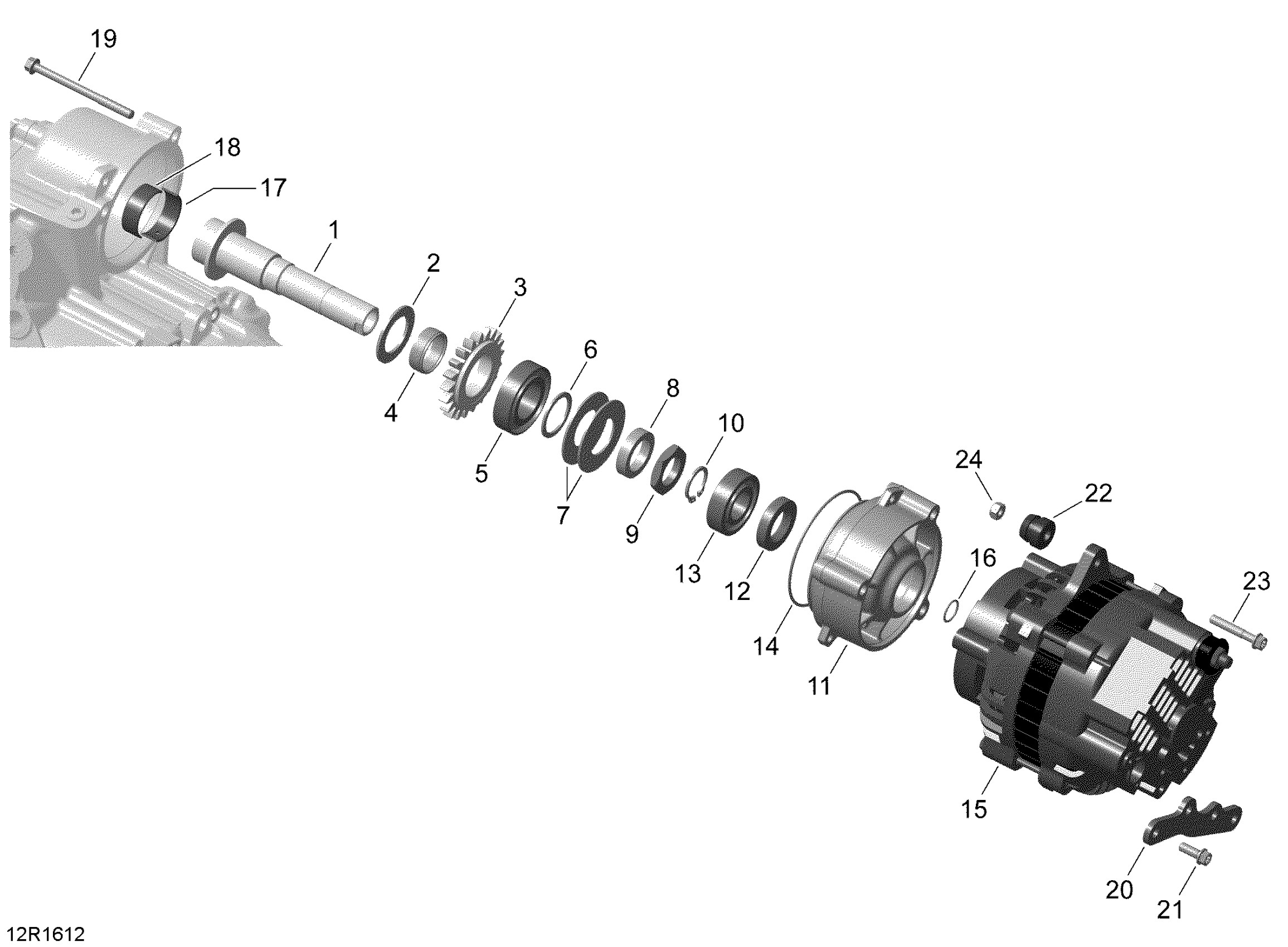

Can-Am RT, 2016 03- Alternator Diagram

#

Description
Price

1

Alternator Shaft Ass'y | Includes 1 to 10

420637124

$599.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Retaining Ring

420945665

$5.08

11

Alternator Flange

420210610

$129.99

12

Oil Seal

420930267

$25.99

13

Ball Bearing

420932660

$26.49

14

O-Ring

420950490

$14.28

15

Alternator Ass'y | Includes 15 to 16

420685760

$679.99

16

O-Ring

420430603

$11.59

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Torx Flange Screw M6 X 75

420440657

$4.44

20

Alternator Support

420651710

$11.49

21

Torx Flange Screw M6 X 16

420440162

$3.17

22

Isolator

420201170

$15.87

23

Torx Flange Screw M6 X 35

420440274

$1.01

24

Lock Nut M6

420242371

$3.80
