Description

Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Hex. Flange Screw M6 X 12

210261250

$1.90

4

Domed Nut M6

232361493

$2.11

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Torx Truss Screw M6 X 12

250000767

$2.00

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Tuflok Plastic Rivet

293150230

$1.47

9

Oetiker Gear Clamp

293650025

$3.09

11

Oetiker Clamp

293650046

$2.89

12

Crimp Clamp, 15.3-706R

293650047

$3.29

13

Oetiker Clamp

293650125

$3.29

14

Oetiker Clamp

293650186

$3.99

15

Elbow Fitting 90°

293710105

$14.22

16

Tie-Rap 180 mm

414115200

$0.11

18

Tuflock Phillips Plastic Screw

414745900

$1.69

19

Universal Spring Clamp

513033029

$5.39

20

Open Clamp

513033047

$5.19

21

Protector Tube, 16 mm

513033231

$2.21

22

Tubing 16 Mm 1000Mm Long

219704408

$7.49

23

Was 409901800 Tubing (13 mm)

219704400

$14.49

24

Open Clamp

709000057

$5.39

25

Vapor Canister

709000090

$90.99

26

Fuel Filter

513034047

$21.99

27

Carpet

709000130

$14.49

28

Reflective Sheet

709000157

$20.99

29

Seal Kit

219800248

$38.99

30

Fuel Line 7.9 mm, Meter

709000264

$15.99

31

Fuel Tank

709001447

$599.99

32

Reflective Sheet

709000340

$28.99

33

Fuel Pump Module

709000370

$372.49

34

Rollover Valve

709000413

$55.99

36

Fuel Filter Support

709000452

$19.49

37

Y Fitting

709000453

$10.49

38

Fuel Line 7.9 mm, Meter

709000264

$15.99

39

Hose Support

709000814

$6.66

40

Fuel Line 7.9 mm, Meter

709000265

$12.99

41

Formed Hose

709000523

$26.99

42

Air Filter

709000524

$45.99

43

Filter Support

709000526

$13.24

44

Grommet

709000582

$4.69

45

Hose, 880MM

709000656

$31.99

46

Hose, 275MM

709000657

$12.99

47

Hose, 1275MM

709000658

$30.49

48

Gaz Cap

709000683

$15.82

49

Female Quick Fitting Ass'y

709000684

$15.49

50

Quick Connect Pipe Fitting

293710192

$12.49

51

Bushing

709000716

$7.73

52

Hose, 275MM

709000776

$15.99

53

Bleed Valve

709000443

$73.99

54

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

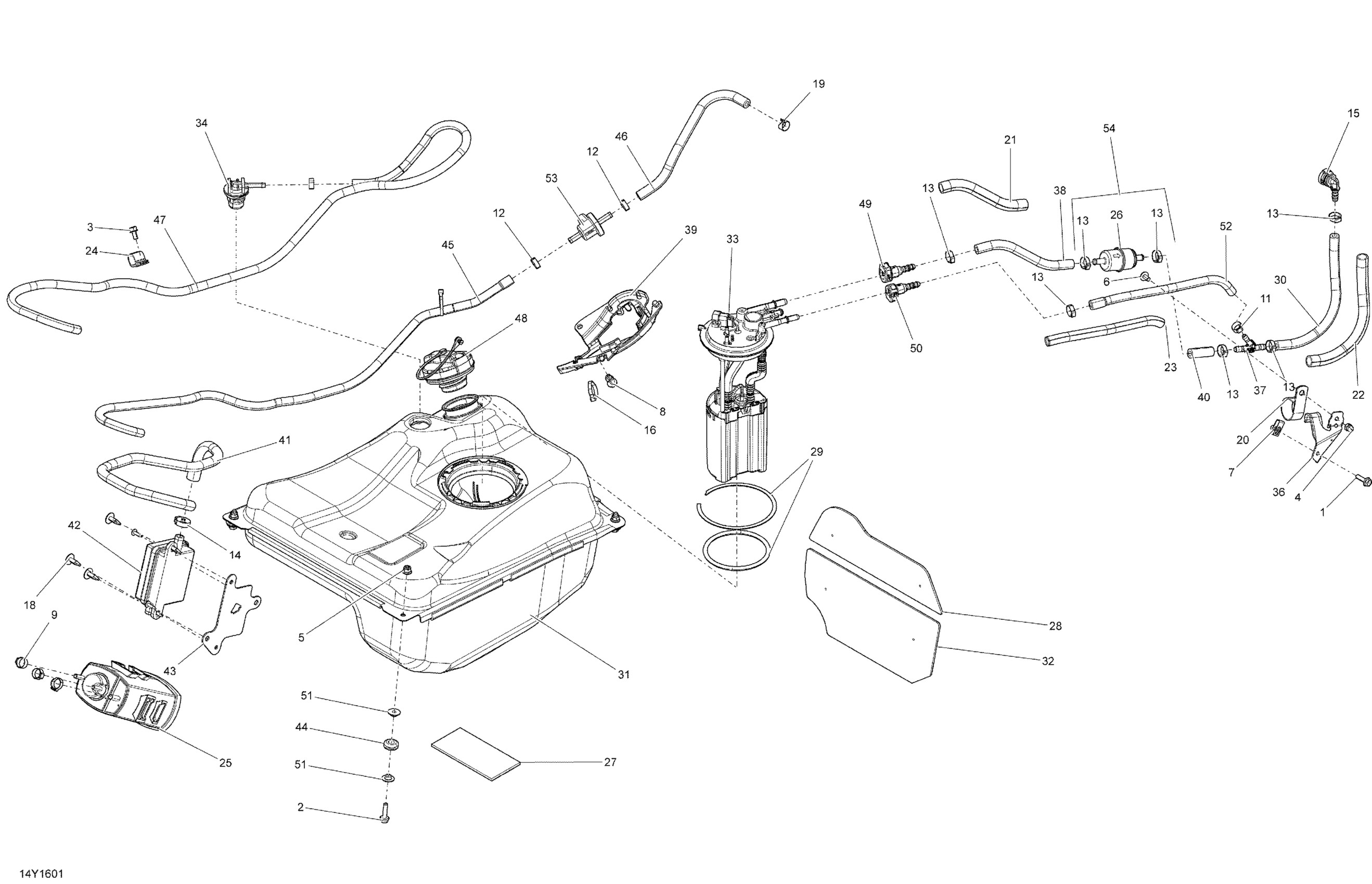

Can-Am RT, 2016 02- Fuel System Diagram

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 12

Domed Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Torx Truss Screw M6 X 12

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

Oetiker Gear Clamp

Oetiker Clamp

Crimp Clamp, 15.3-706R

Oetiker Clamp

Oetiker Clamp

Elbow Fitting 90°

Tie-Rap 180 mm

Tuflock Phillips Plastic Screw

Universal Spring Clamp

Open Clamp

Protector Tube, 16 mm

Tubing 16 Mm 1000Mm Long

Was 409901800 Tubing (13 mm)

Open Clamp

Vapor Canister

Fuel Filter

Carpet

Reflective Sheet

Seal Kit

Fuel Line 7.9 mm, Meter

Fuel Tank

Reflective Sheet

Fuel Pump Module

Rollover Valve

Fuel Filter Support

Y Fitting

Fuel Line 7.9 mm, Meter

Hose Support

Fuel Line 7.9 mm, Meter

Formed Hose

Air Filter

Filter Support

Grommet

Hose, 880MM

Hose, 275MM

Hose, 1275MM

Gaz Cap

Female Quick Fitting Ass'y

Quick Connect Pipe Fitting

Bushing

Hose, 275MM

Bleed Valve

Fuel Filter Ass'y | Includes 40f to 40f2
