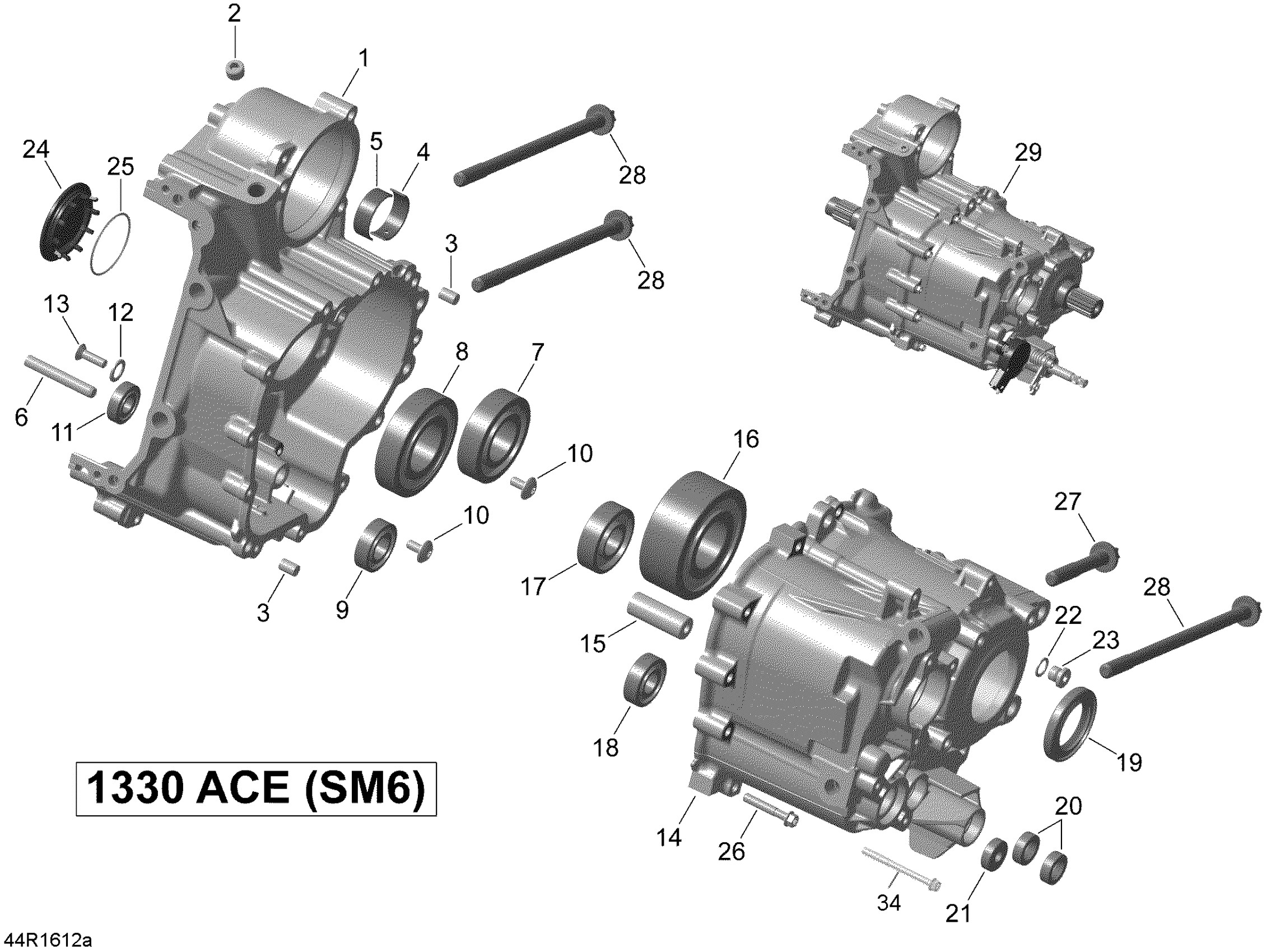

Can-Am RT, 2016 01- Gearbox Housing - SM6 Diagram

#

Description
Price

1

Gear Housing Ass'y Clutch Side | Includes 1 to 13

420212690

$709.99

2

Plug Screw M12 X 1.5

420840657

$8.57

3

Center Pin 8 X 12

420632010

$4.01

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Pin 8, M6 X 55

420229384

$5.71

7

Ball Bearing

420232782

$24.49

8

Ball Bearing

420832232

$13.16

9

Ball Bearing

420232625

$20.99

10

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

11

BALL BEARING - Call your local BRP dealership

420232402

Unavailable

12

Washer

420227085

$2.75

13

Screw M6 X 20

420941436

$3.17

14

GEAR HOUSING ASS'Y, PTO SIDE - Call your local BRP dealership | Includes 14 to 19

420212680

Unavailable

15

Bolt

420249050

$20.99

16

Ball Bearing

420632832

$227.99

17

Ball Bearing

420932677

$23.99

18

Ball Bearing

420932290

$23.99

19

Oil Seal

420831185

$19.99

20

Oil Seal

420250455

$17.38

21

Oil Seal

420631910

$12.16

22

Oil Seal

420230150

$2.85

23

Plug Screw M10 X 1

420641733

$12.72

24

Cover

420201050

$10.17

25

O-Ring

420831160

$2.32

26

Torx Flange Screw M6 X 35

420440274

$1.01

27

Torx Screw M10 X 65

420441521

$5.82

28

Torx Screw M10 X 175

420640136

$12.16

29

GEARBOX - Call your local BRP dealership

420685786

Unavailable

34

Hex. Flange Screw M6 X 65

420440602

$6.39
