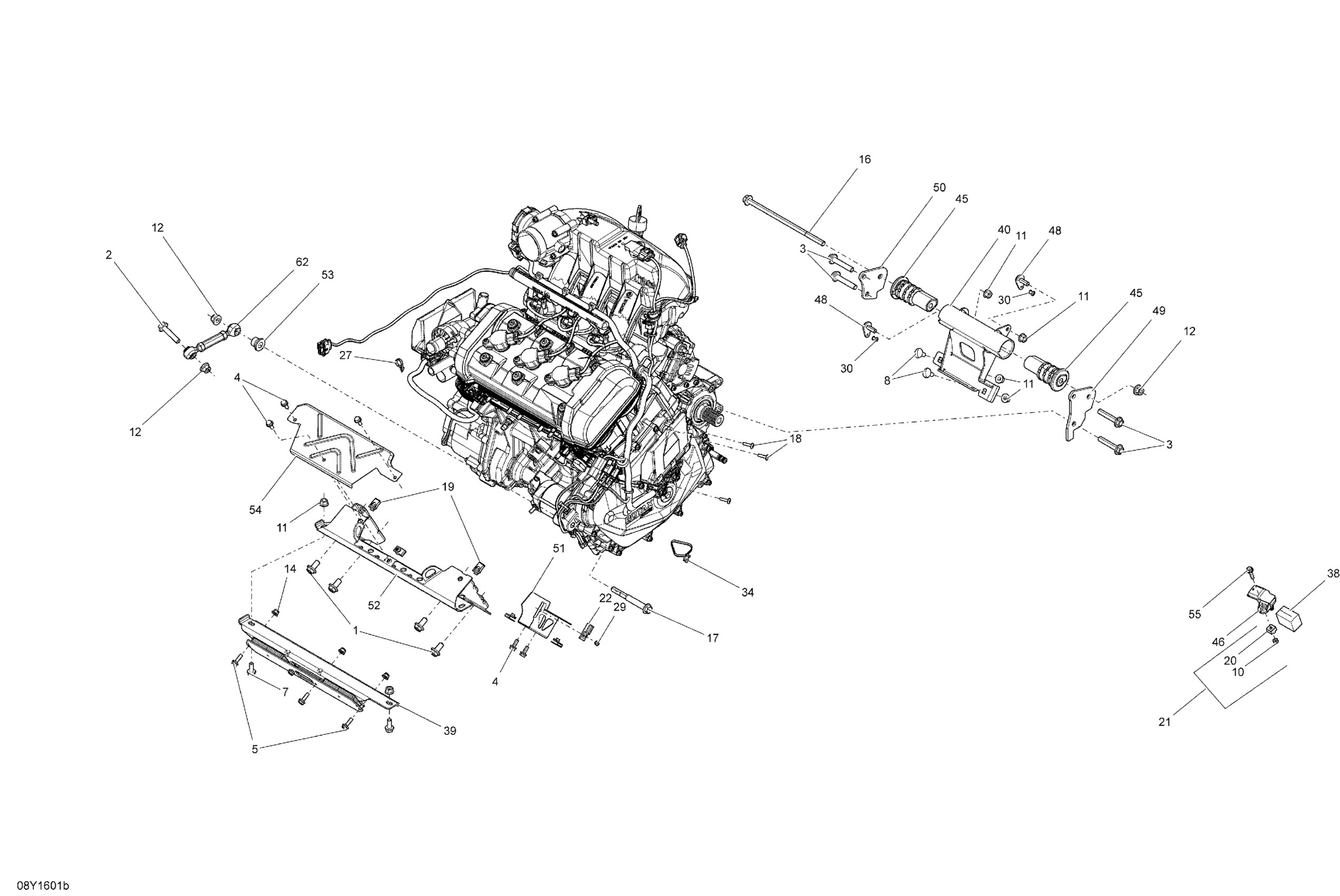

Can-Am RT, 2016 01- Engine - SE6 Diagram

#

Description
Price

1

Hex Flange Screw M10 X 20

207502044

$4.44

2

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

3

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$3.91

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M8 X 20

207682046

$1.90

8

Carriage Bolt M8 X 20

207782046

$1.90

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Hex. Flange Nut M8

233081416

$1.15

12

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Flange Elastic Nut M6

233261466

$2.00

16

Hex. Flange Screw M10 X 220

250000507

$7.59

17

Hex. Flange Screw M10 X 100

250000702

$11.64

18

Torx Screw M5 X 20

250000724

$1.69

19

Panel Nut M6 X 1.0

250100198

$2.11

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

21

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

22

Clip

270000141

$11.49

27

Tie Wrap 368 mm

293750008

$1.04

29

Pop Rivet 3/16"

390402200

$0.35

30

Pop Rivet 3/16"

390402300

$0.75

34

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

38

Foam Filter

707000586

$5.50

39

Rubber Mount

707000876

$134.99

40

Frame Extension

707000877

$94.99

45

Rubber Mount

707000973

$89.99

46

Pressure And Temperature Sensor

707000995

$88.99

48

Attach

707001292

$19.49

49

LH Engine Support

707001293

$22.49

50

RH Engine Support

707001294

$22.49

51

Connector Support

707001353

$15.27

52

Front Engine Support

707001561

$104.99

53

Spacer

707001736

$27.49

54

Upper Heat Deflector

707601057

$24.49

55

Hex. Flange Screw M6 X 25

207662554

$1.48

62

Connecting Rod

707001918

$63.99
