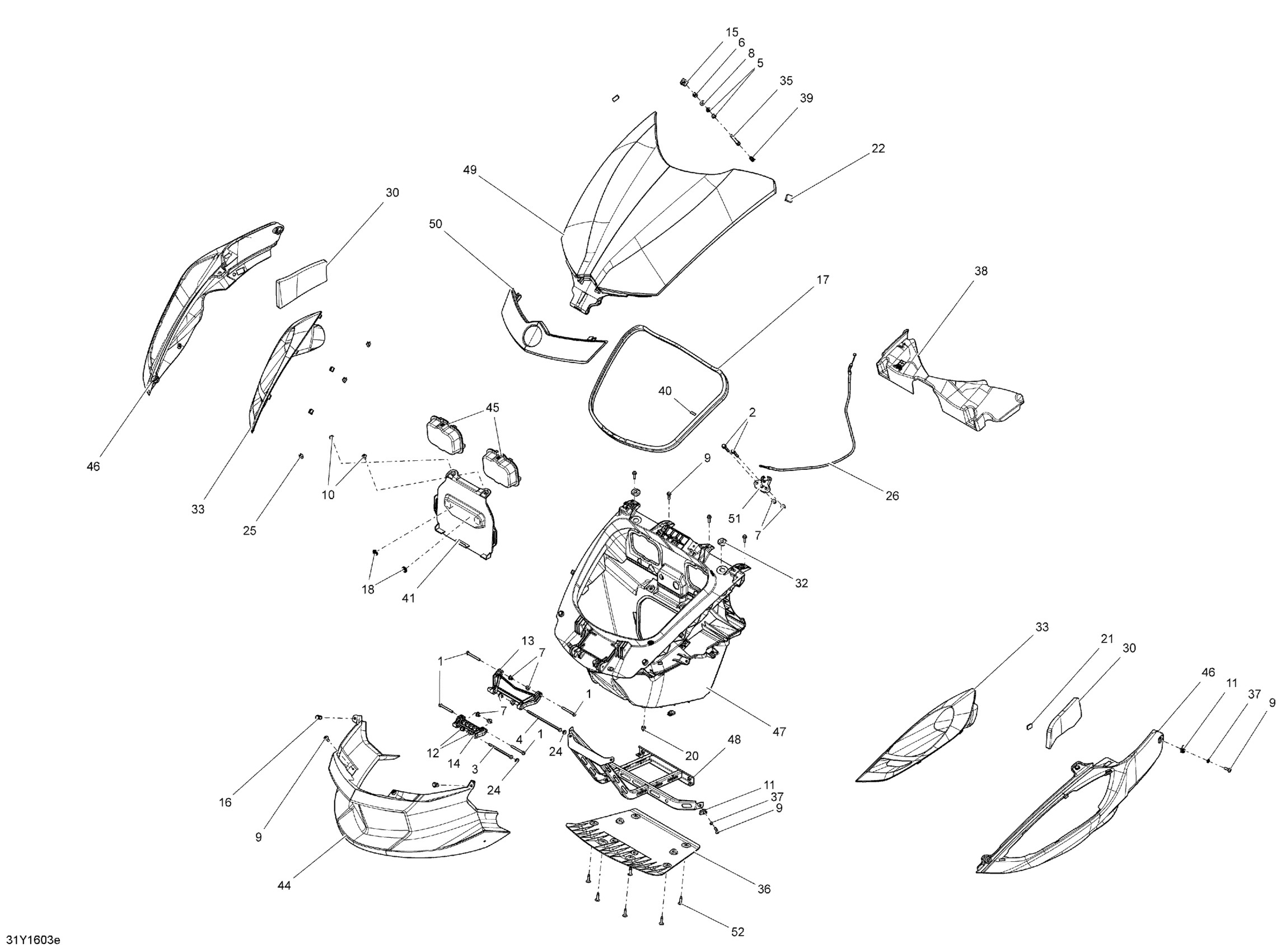

Can-Am RS, 2016 09- Body And Accessories - Front Storage Diagram

#

Description
Price

1

Hex. Screw M6 X 55

207065544

$2.11

2

Hex. Flange Screw M6 X 35

207663544

$0.90

3

Hex. Screw M6 X 100

230060060

$7.41

4

Hex. Screw M6 X 150

230065060

$10.16

5

Hex. Jam Nut M8

232180600

$0.67

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Flat Washer 8 mm

234081410

$0.83

9

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

10

Torx Screw M6 X 12

250000454

$4.44

11

Panel Nut M6 X 1.0

250100198

$2.11

12

Sleeve

269500706

$4.65

13

REAR ARM - Call your local BRP dealership

269501481

Unavailable

14

FRONT ARM - Call your local BRP dealership

269501482

$19.99

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

16

Tuflok Plastic Rivet

293150230

$1.47

17

Neoprene Seal 3000Mm Long

219704371

$51.99

18

Dual Lock Velcro Washer 3/4"

293740028

$4.19

20

Rubber Bumper

293830005

$8.09

21

Rubber Pad

293830143

$18.49

22

Rubber Pad

293830175

$16.99

24

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

25

Clip

414479100

$1.90

26

Hood Cable

517305742

$42.99

30

LH FRONT PANEL FOAM - Call your local BRP dealership

518325515

Unavailable

30

RH FRONT PANEL FOAM - Call your local BRP dealership

518325516

Unavailable

32

Oval Washer

705000321

$5.61

33

LH Air Duct | Model-North America

705001541

$89.99

33

RH Air Duct | Model-North America

705001543

$89.99

35

Lug

705002223

$25.99

36

Skid Plate

705002837

$68.99

37

Plastic Washer

705003207

$0.80

38

Service Center | Model-RS

705003515

$25.99

39

Spring

705003911

$3.99

40

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

41

Battery Cover Ass'y | Includes 130 to 130c

705018040

$29.99

42

LH SERVICE CENTER - Call your local BRP dealership | Model-ST

705005394

$25.99

43

RH SERVICE CENTER - Call your local BRP dealership | Model-ST

705005774

$25.99

44

Steel Black Bumper Cover | Model-RS STD

705006270

$294.99

44

STEEL BLACK BUMPER COVER - Call your local BRP dealership | Model-ST S Steel Black Met.

705007666

Unavailable

45

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

46

Steel Black RH Front Pannel | Model-Steel Black Met. Australie

705007707

$309.99

46

LH Front Panel | Model-Steel Black Met. Australie

705007684

$88.99

46

PANEL_BODY FR B-389 - Call your local BRP dealership | Model RS with Color Magma Red

705009955

Unavailable

47

Storage Bin Ass'y

705008320

$479.99

48

Front Frame

705201326

$81.99

49

Steel Black Hood | Model-Steel Black Met.

705007992

$659.99

49

HOOD - Call your local BRP dealership | Model RS with Color Magma Red

705009957

Unavailable

50

Steel Black Front Fascia | Model-Steel Black Met.

705004572

$119.99

50

FRONT FACING - Call your local BRP dealership | Model RS with Color Magma Red

705009958

Unavailable

51

Latch

705007379

$28.99

52

Torx Screw M6 X 25 | XT Models

250000728

$4.44
