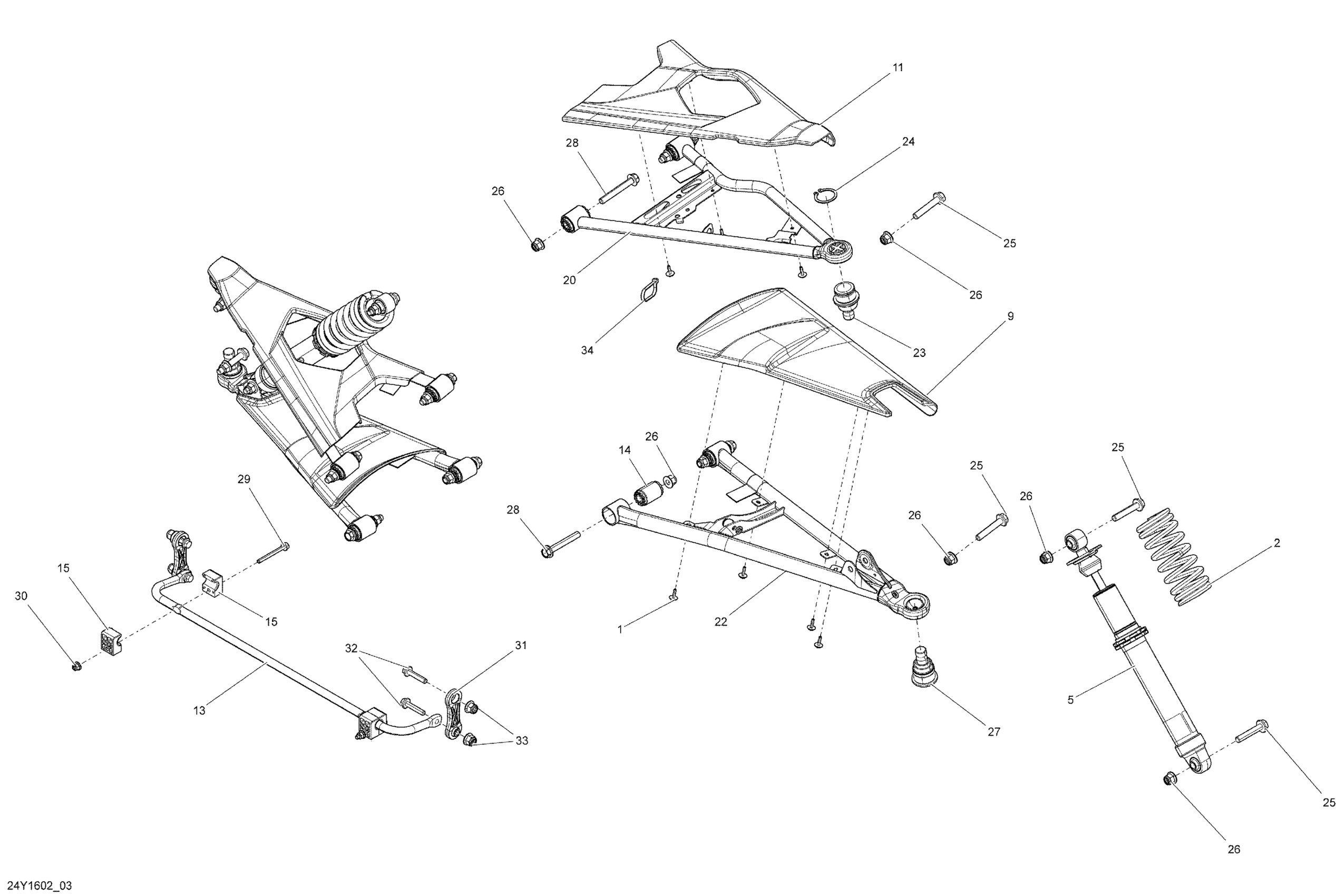

Can-Am RS, 2016 07- Suspension, Front Diagram

#

Description
Price

1

Screw M4 X 16

250000725

$3.49

2

SPRING - Call your local BRP dealership | Model-RS STD

706001108

Unavailable

5

Shock | Model-RS STD

706001939

$409.99

9

RH Lower Air Deflector

706201320

$22.99

9

LH Lower Air Deflector

706201319

$22.99

11

Black RH Upper Air Deflector | Model-RS STD

706201322

$22.99

11

Black LH Upper Air Deflector | Model-RS STD

706201321

$22.99

11

DEFLECTOR_AIR UP R B-266 - Call your local BRP dealership | Model-ST S Steel Black Met

706201920

Unavailable

11

DEFLECTOR_AIR UP L B-266 - Call your local BRP dealership | Model-ST S Steel Black Met

706201919

Unavailable

11

DEFLECTOR RH - Call your local BRP dealership | Model with Package S & Color Magma Red

706202414

Unavailable

11

DEFLECTOR LH - Call your local BRP dealership | Model with Package S & Color Magma Red

706202413

Unavailable

13

SWAY BAR - Call your local BRP dealership | Model-RS STD

706201421

Unavailable

14

Suspension Arm Bushing

706201519

$13.76

15

Stabilizer Bushing | Model-RS STD

706201545

$10.01

20

RH Upper Arm | Model-RS

706201736

$158.99

20

LH UPPER ARM - Call your local BRP dealership | Model-RS

706201735

Unavailable

22

RH Lower Arm | Model-RS

706201738

$158.99

22

LH Lower Arm | Model-RS

706201737

$158.99

23

Ball Joint

706202507

$61.99

24

Circlip

293370035

$2.64

25

Hex. Flange Screw M10 X 55

207605554

$7.62

26

Flange Elastic Nut M10

233201466

$3.17

27

Ball Joint

706202508

$42.49

28

Hex. Flange Screw M10 X 70

207607056

$4.29

29

Hex. Flange Screw M6 X 60

250000778

$4.44

30

Hex. Flange Elastic Nut M6

233261466

$2.00

31

Tie Rod

706200671

$20.99

32

Hex. Flange Screw M8 X 40

207684054

$2.11

33

Elastic Flange Nut M8

233281464

$1.01

34

Tie Wrap 368 mm

293750008

$1.04
