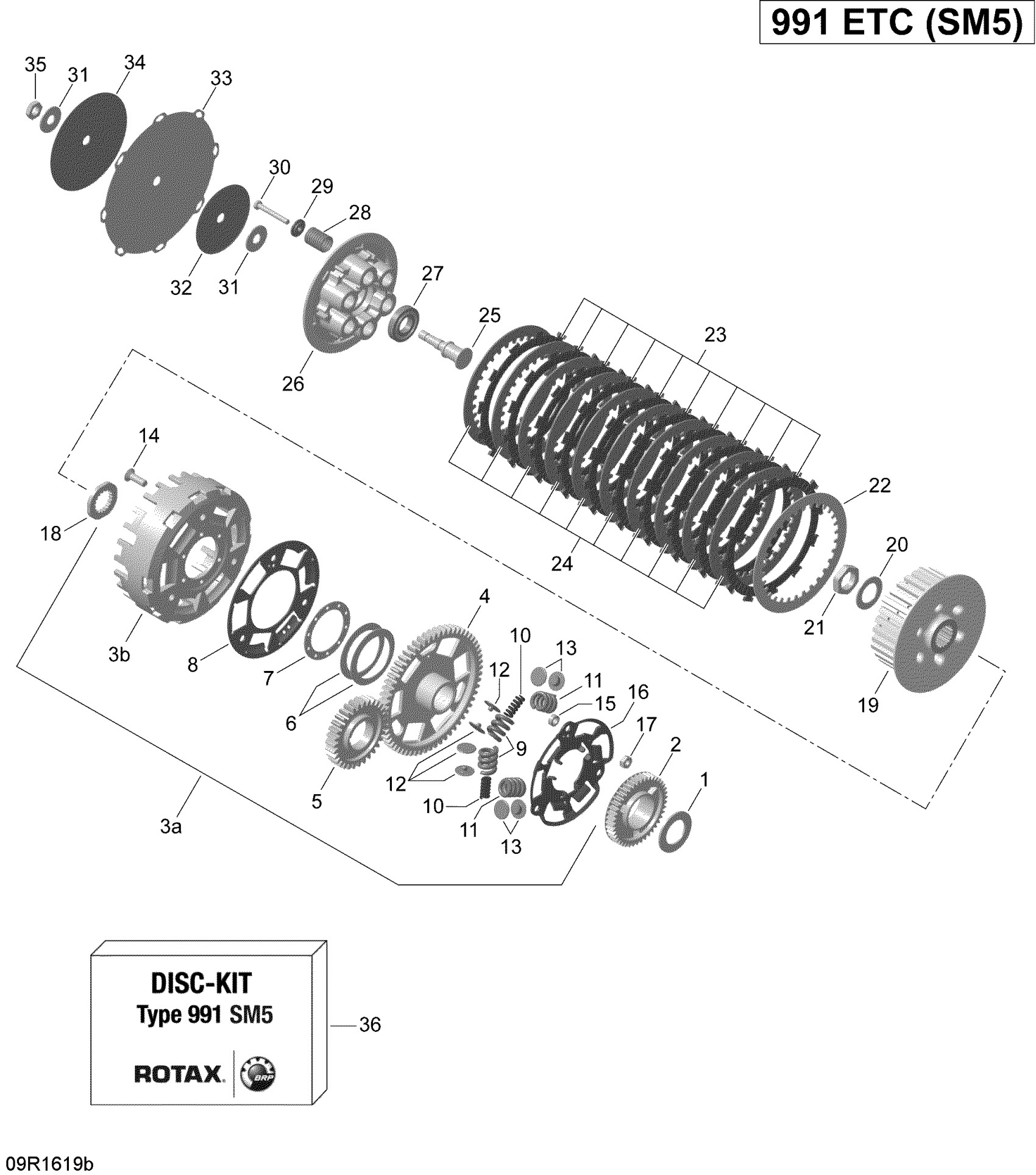

Can-Am RS, 2016 05- Clutch - SM5 Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420626540

Unavailable

2

Oil Gear Pump, 42 Teeth

420634478

$29.49

3a

Primary Drive Ass'y | Includes 3a to 17

420685850

$639.99

3b

Clutch Drum

420259533

$98.99

4

Primary Drive Gear Ass'Y | Includes 11 to 12

420295789

$599.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Disc Spring

420239397

$18.49

7

THRUST WASHER - Call your local BRP dealership

420626810

Unavailable

8

Support Plate

420259688

$64.49

9

Compression Spring

420238135

$16.99

10

Internal Compression Spring

420238140

$16.25

11

Compression Spring

420238130

$18.49

12

Spring Retainer

420247015

$15.87

13

Spring Retainer

420247017

$15.87

14

Flat Head Screw, M8 X 25

420941835

$3.91

15

Spacer Sleeve

420247614

$10.16

16

Outer Support Plate

420259581

$64.49

17

Hex. Nut M8

232081414

$0.72

18

Thrust Washer

420627225

$12.70

19

Hub Clutch

420259521

$104.99

20

Spring Washer

420245830

$10.16

21

Hex. Nut M24

420242012

$16.33

22

PLATE, 1.5 MM - Call your local BRP dealership | See Item 36, Disc Kit

420259266

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Pin

420659791

$35.99

26

Pressure Plate Ass'y | Includes 26 to 27

420259519

$76.49

27

Ball Bearing

420632135

$28.49

28

Clutch Spring | See Item 36, Disc Kit

420238721

$11.11

29

STEP WASHER - Call your local BRP dealership | See Item 36, Disc Kit

420627534

$5.39

30

Screw M6 X 45

420640315

$2.21

31

Thrust Washer

420227180

$12.71

32

Disc Support

420627230

$16.34

33

Diaphragm

420260892

$35.99

34

Disc Plate

420627281

$16.34

35

Hexagonal Nut M12 X 1

420642059

$9.48

36

Disc Kit, Type 991 SM5

420281930

$669.99
