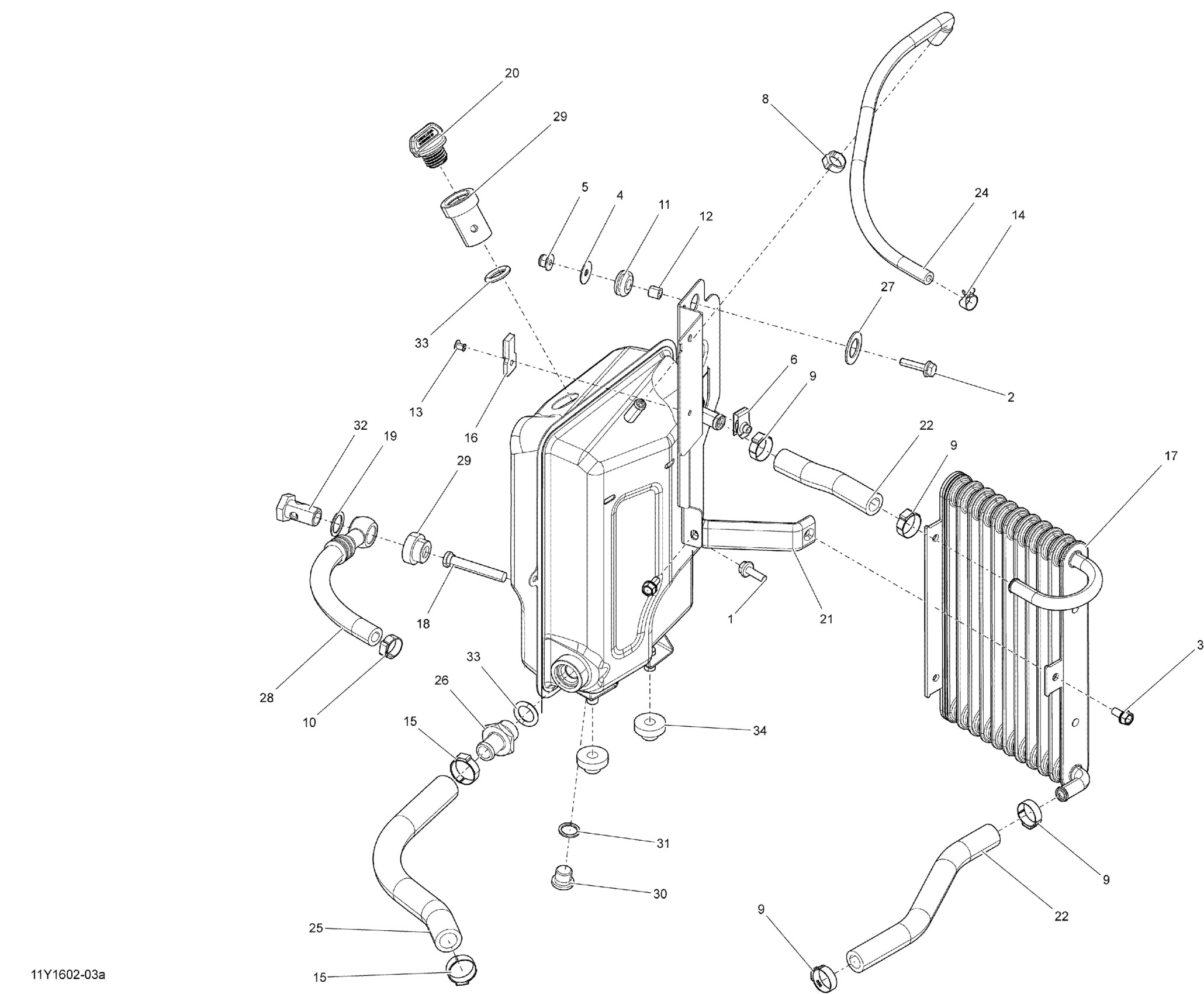

Can-Am RS, 2016 02- Oil System - SE5 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Hex. Flange Screw M6 X 12

210261250

$1.90

4

Flat Washer

224060201

$1.26

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Panel Nut M6 X 1.0

250100198

$2.11

8

Oetiker Clamp

293650140

$2.69

9

Oetiker Clamp

293650186

$3.99

10

OETIKER CLAMP - Call your local BRP dealership

293650235

Unavailable

11

Grommet

709000582

$4.69

12

Bushing

293900105

$7.65

13

Pop Rivet 3/16"

390402200

$0.35

14

Spring Clamp

414415200

$0.88

15

Gear Clamp

509000552

$6.49

16

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

17

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

18

STRAINER - Call your local BRP dealership

519000144

Unavailable

19

Copper Washer

519000148

$4.23

20

Oil Cap

519000155

$15.82

21

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable

22

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

24

Formed Hose

519000208

$28.99

25

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

26

Strainer

519000219

$36.99

27

Washer

519000295

$1.37

28

Hose

519000303

$51.99

29

OIL TANK - Call your local BRP dealership

519000304

Unavailable

30

Fill Level Plug | 4X4

705500504

$10.01

31

Copper Washer | 4X4

705500506

$0.45

32

Banjo Bolt | SE5

705600527

$15.82

33

O-Ring

709000218

$6.66

34

Grommet

709200285

$9.69
