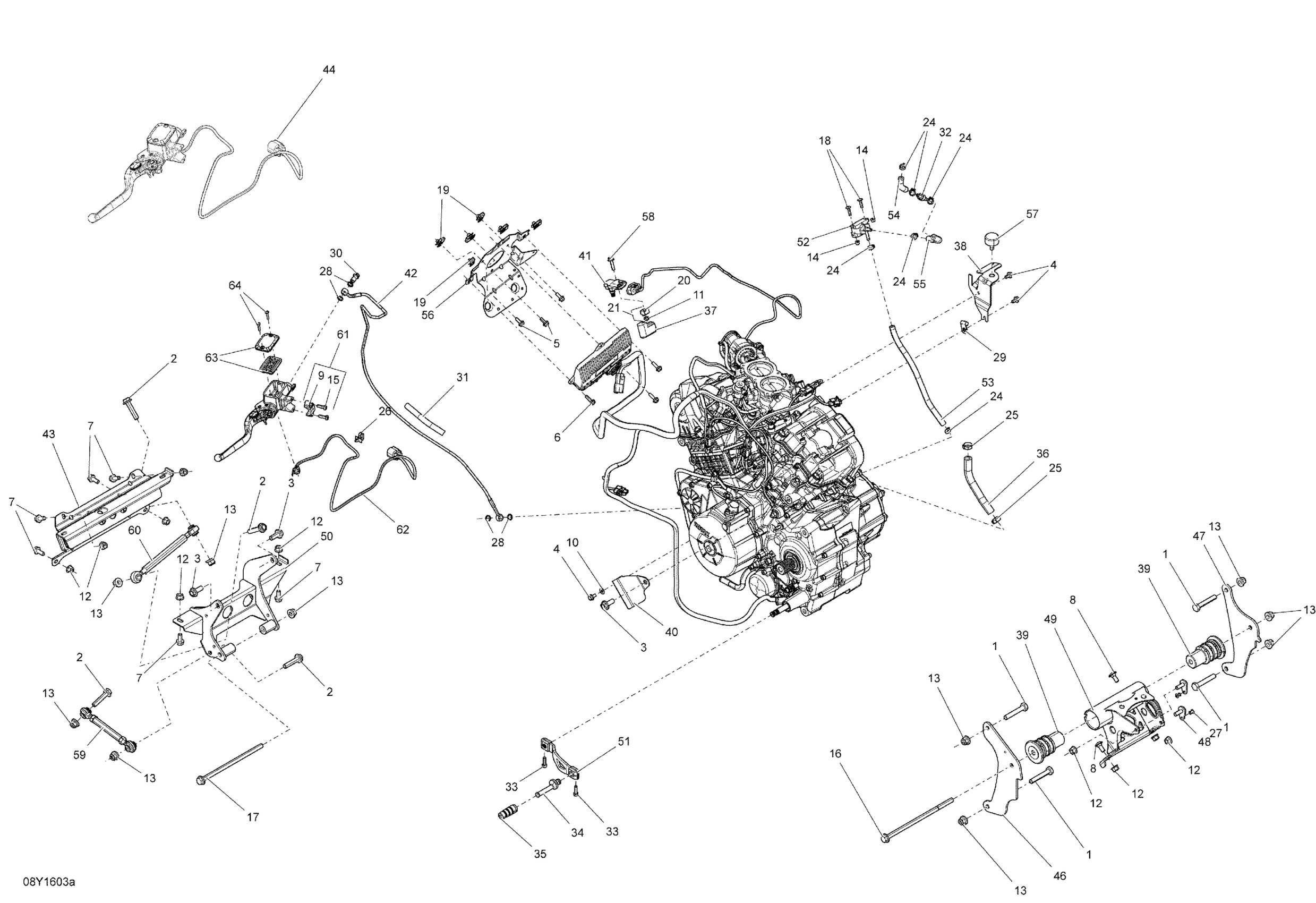

Can-Am RS, 2016 01- Engine - SM5 Diagram

#

Description
Price

1

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

2

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

3

Hex. Flange Screw M10 X 25

207602544

$1.69

4

Hex. Flange Screw M6 X 12

207661244

$2.11

5

Hex. Flange Screw M6 X 16

207661644

$0.74

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M8 X 20

207682046

$1.90

8

Carriage Bolt M8 X 20

207782046

$1.90

9

Clamps | Includes 75a to 75b

719000049

$14.83

10

Flat Washer

224061121

$0.53

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Hex. Flange Nut M8

233081416

$1.15

13

Hex. Flange Elastic Nut M10

233201436

$2.11

15

Torx Screw M6 X 20

250000433

$7.51

16

Hex. Flange Screw M10 X 220

250000507

$7.59

17

Hex. Flange Screw M10 X 200

250000583

$10.59

18

Torx Screw M5 X 20

250000724

$1.69

19

Panel Nut M6 X 1.0

250100198

$2.11

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

21

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

24

Oetiker Clamp

293650042

$3.09

25

Oetiker Clamp

293650186

$3.99

26

Tie-Rap 173 mm

293750009

$1.04

27

Pop Rivet 3/16"

390402300

$0.75

28

Washer

414920600

$1.90

29

Bracket

415052400

$4.39

30

Banjo Bolt

507032551

$5.61

31

Was 409901700 Tubing (9 mm)

219704399

$84.99

32

Check Valve

513033469

$31.99

33

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

34

Adjustment Rod

707000455

$29.99

35

End Clutch Pedal

707000456

$8.89

36

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

37

Foam Filter

707000586

$5.50

38

Intake Support

707000756

$11.07

39

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

40

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

41

Pressure And Temperature Sensor

707000995

$88.99

42

HOSE - Call your local BRP dealership

707001050

Unavailable

43

Front Rubber Mount

707001056

$104.99

44

Clutch Lever Ass'y | Includes 75 to 75e

707001084

$370.99

47

RH ENGINE SUPPORT - Call your local BRP dealership

707001239

Unavailable

48

Attach

707001292

$19.49

49

Extention

707001331

Unavailable

50

FRONT ENGINE SUPPORT - Call your local BRP dealership

707001336

Unavailable

51

LEVER - Call your local BRP dealership

707001458

$46.99

52

Solenoid Valve

707001596

$78.99

54

HOSE 6,35MM ID - 485MM - Call your local BRP dealership

709000653

Unavailable

55

FORMED HOSE - Call your local BRP dealership

707001720

Unavailable

56

BRACKET - Call your local BRP dealership

707800469

Unavailable

57

Rubber Stopper

708000758

$12.99

58

Hex. Flange Screw M6 X 25

207662554

$1.48

59

Connecting Rod

707001358

$68.99

60

CONNECTING ROD - Call your local BRP dealership

707001357

Unavailable
