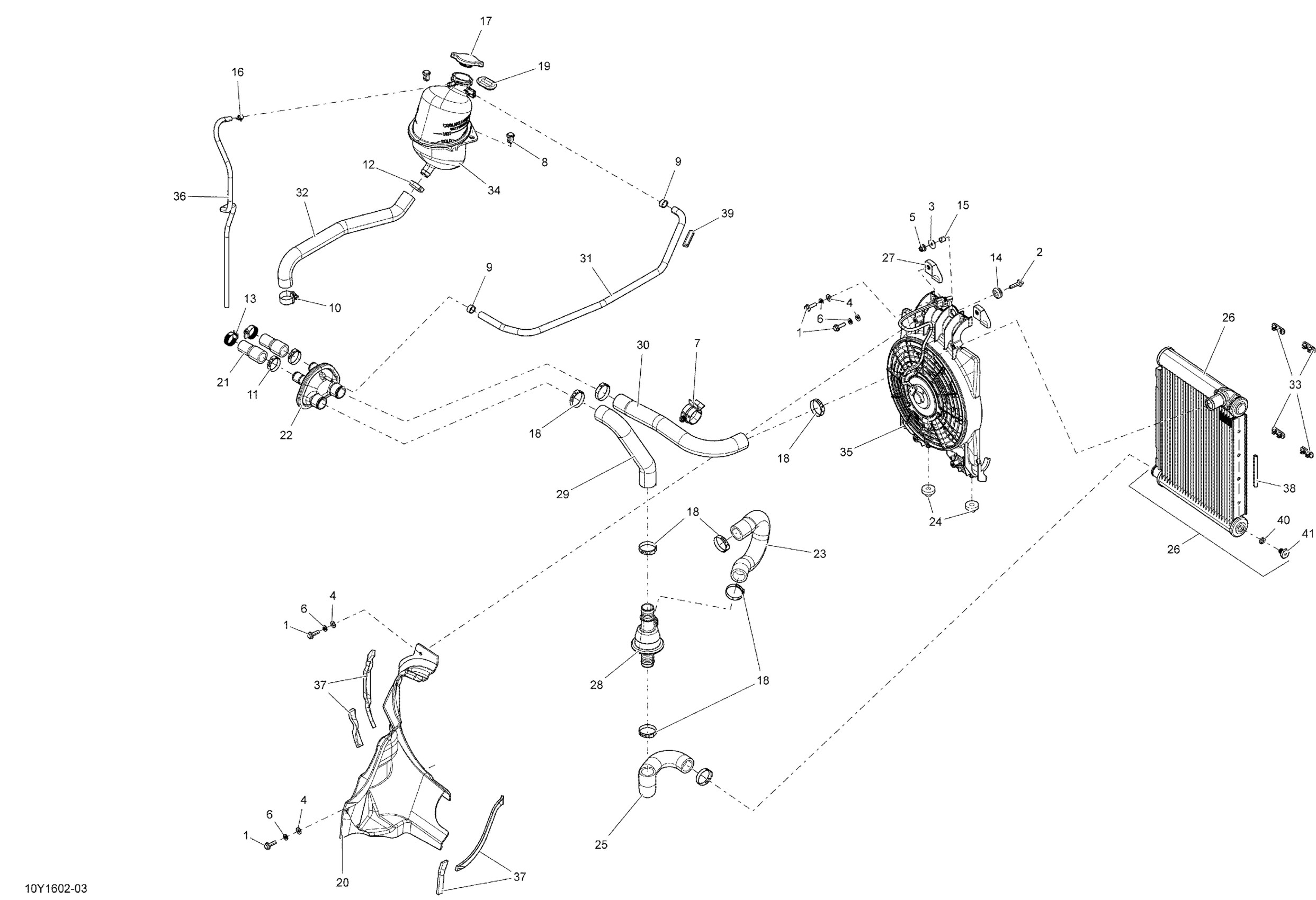

Can-Am RS, 2016 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Flat Washer

224060201

$1.26

4

Flat Washer

224061121

$0.53

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Lock Washer Helical M6

234161601

$1.15

7

Retainer

275500590

$9.69

8

Tuflok Plastic Rivet

293150230

$1.47

9

Oetiker Gear Clamp

293650025

$3.09

10

Tridon Gear Clamp

293650051

$4.19

11

Crimp Clamp

293650099

$4.29

12

Oetiker Gear Clamp

293650165

$5.39

13

Tridon Gear Clamp

293650173

$3.09

14

Grommet

709000582

$4.69

15

Bushing

293900105

$7.65

16

Spring Clamp

414554800

$0.88

17

Pressure Cap

509000187

$29.49

18

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

19

Oblong Grommet

705003668

$5.79

20

RH INNER HEAT SHIELD - Call your local BRP dealership

705006688

Unavailable

21

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

22

Connector

709200151

$19.49

23

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

24

Grommet

709200285

$9.69

25

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

26

Radiator | Includes 37 to 37b

709200337

$433.99

27

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

28

Thermostat Housing

709200384

$88.99

29

HOSE_THERMOSTAT UP FORMED - Call your local BRP dealership

709200419

Unavailable

30

HOSE_RADIATOR UP FORMED - Call your local BRP dealership

709200420

Unavailable

31

FORMED HOSE - Call your local BRP dealership

709200421

Unavailable

32

HOSE_COOLANT TANK LWR FORMED - Call your local BRP dealership

709200489

Unavailable

33

Rubber Stopper

709200502

$5.71

34

Coolant Tank

709200749

$99.99

35

Fan Assembly

709200554

$154.99

36

Polyurethane Hose 10000Mm Long

219704410

$56.99

37

Neoprene Seal (1PAC=3M)

219704364

$27.49

38

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

39

Trim 1000Mm Long

219704354

$15.99

40

O-RING - Call your local BRP dealership

709200417

$6.29

41

Drain Plug

709200418

$13.75
