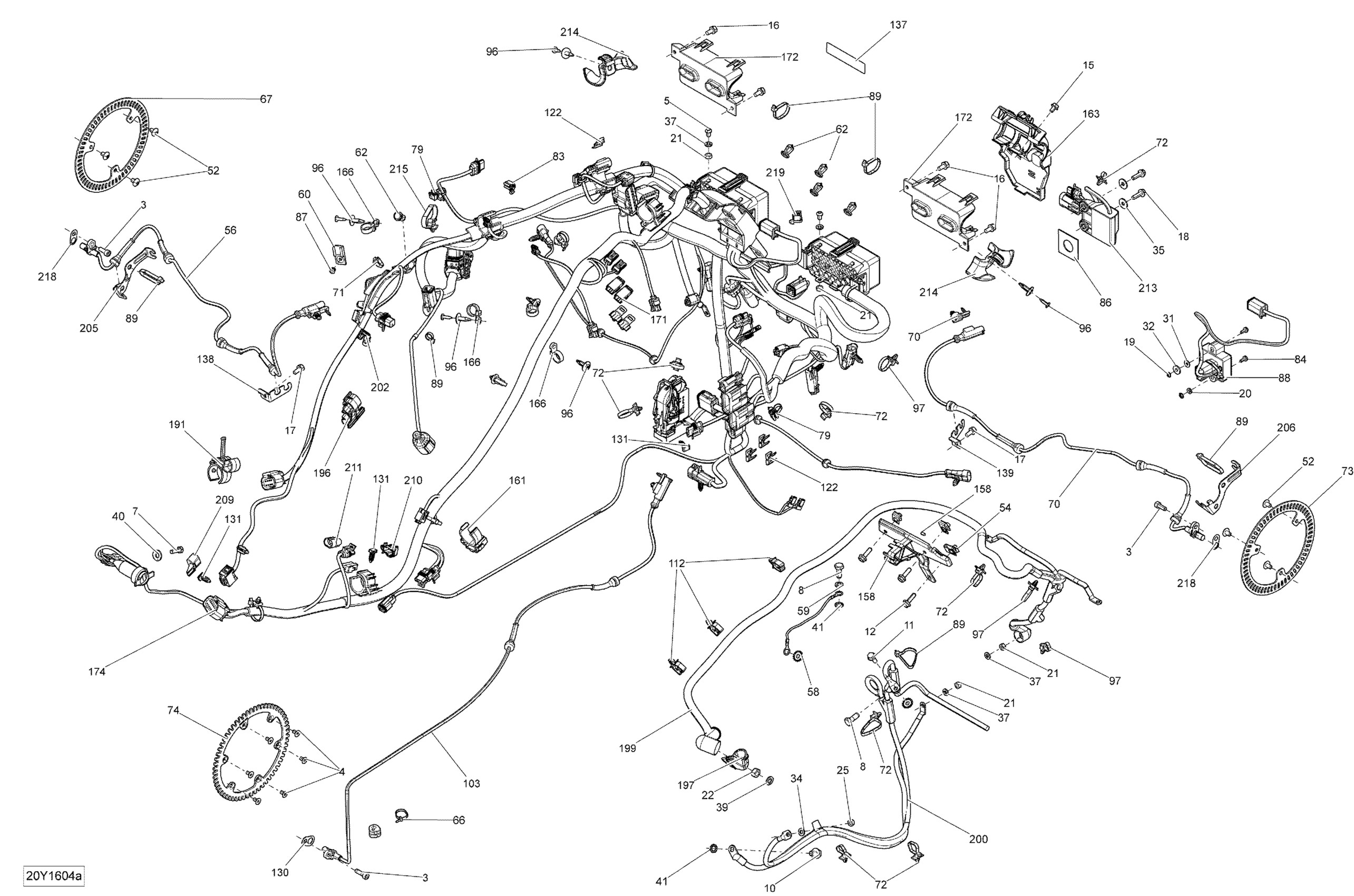

Can-Am F3, 2016 10- Electrical System - Package T-LTD - General Diagram

#

Description
Price

3

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

4

Socket Head Screw M5 X 10

205851036

$6.77

5

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

7

Hex. Forming Screw M6 X 20

207162060

$1.29

8

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

10

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

11

Hex. Flange Screw M6 X 16

207661644

$0.74

12

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Hex. Forming Screw M6 X 10

210261050

$1.69

16

Hex. Flange Screw M6 X 12

210261250

$1.90

17

Hex. Flange Screw M6 X 12

210261250

$1.90

18

Hexagonal Head Screw

210262050

$2.11

19

Push Nut | Not shown

211100002

$2.19

20

Flat Washer, Emhart

213200016

$0.72

21

Hex. Nut M6

232061600

$1.15

22

Hex. Nut M8

232081414

$0.72

25

Elastic Stop Nut M6

232561414

$0.55

31

Flat Washer 4 mm, Stainless

234042600

$1.15

32

Flat Washer 5 mm, Stainless

234052400

$2.85

34

Stainless Flat Washer M6

234061600

$0.33

35

Flat Washer 6 mm

234062410

$0.77

37

Lock Washer Helical M6

234161601

$1.15

39

Lock Washer 8 mm, Stainless

234181601

$0.55

40

Spring Washer M8

234281704

$2.11

41

Serrated Lock Washer 8 mm

234481608

$1.15

52

Torx-truss M/s M6 X 10

250000995

$4.44

54

Panel Nut M6 X 1.0

250100198

$2.11

56

Kit Speed Sensor

219800456

$86.99

58

Lock Washer Serrated M6

250200041

$1.15

59

Washer

250200111

$2.11

60

Clip

270000141

$11.49

62

Tuflok Plastic Rivet

293150230

$1.47

66

Tie Wrap 94 mm | 4X4

293750001

$1.03

67

Front Sensor Wheel

705601512

$43.99

70

Kit Speed Sensor

219800456

$86.99

71

Tie Wrap 368 mm

293750008

$1.04

72

Tie-Rap 173 mm

293750009

$1.04

73

Front Sensor Wheel

705601512

$43.99

74

Sensor Wheel

705601372

$46.99

79

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

83

Clip Tie-Rap

293750063

$8.75

84

HEX. SCREW FORMING M4 X 16 - Call your local BRP dealership

250000674

Unavailable

86

Rubber Bumper

293830091

$8.29

87

Pop Rivet 3/16"

390402400

$0.35

88

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$194.99

89

Tie-Rap 180 mm

414115200

$0.11

96

Tuflock Phillips Plastic Screw

414745900

$1.69

97

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

103

Speed Sensor

706202361

$164.99

112

HARNESS SUPPOR - Call your local BRP dealership

709000634

Unavailable

122

Lock

710001222

$2.09

130

Shim

710002023

$2.85

131

Connector Holder

710002033

$3.39

137

RH/LH Fuse Box Decal

710003077

$0.64

138

Speed Sensor Holder

710003156

$11.49

139

Speed Sensor Holder

710003157

$11.49

158

CONNECTOR SUPPORT - Call your local BRP dealership

710004256

Unavailable

161

Cable Support

710004299

$4.19

163

Wire Support

710004308

$13.49

166

Tie Rap

710004424

$6.29

171

Connector With Cap

710004456

$12.49

172

Fuse Holder Support

710004472

$10.01

174

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 To YRS

710004601

Unavailable

174

Harness, Frame | Includes 1 To YRS

710004602

$969.99

191

Support

710004613

$8.29

196

Wire Support

710004669

$6.79

197

Cable Support

710004693

$13.49

199

POSITIVE CABLE - Call your local BRP dealership

710004736

Unavailable

200

Start Cable

710004738

$54.99

202

Harness Holder

710004794

$3.39

203

Fuel Tank Cable

710005134

$19.49

205

LH Support Wire

710004860

$2.29

206

RH Support Wire

710004861

$2.29

209

Connector Plug

710004902

$2.85

210

Connector Plug

710004903

$2.85

211

Connector Plug

710004906

$13.22

213

Dess Module

710004916

$179.99

214

Harness Holder

710004931

$1.59

215

Tie Rap | Not Shown

710004947

$8.68

219

Clip Tie-Rap | Package North Edition

710005037

$9.17
