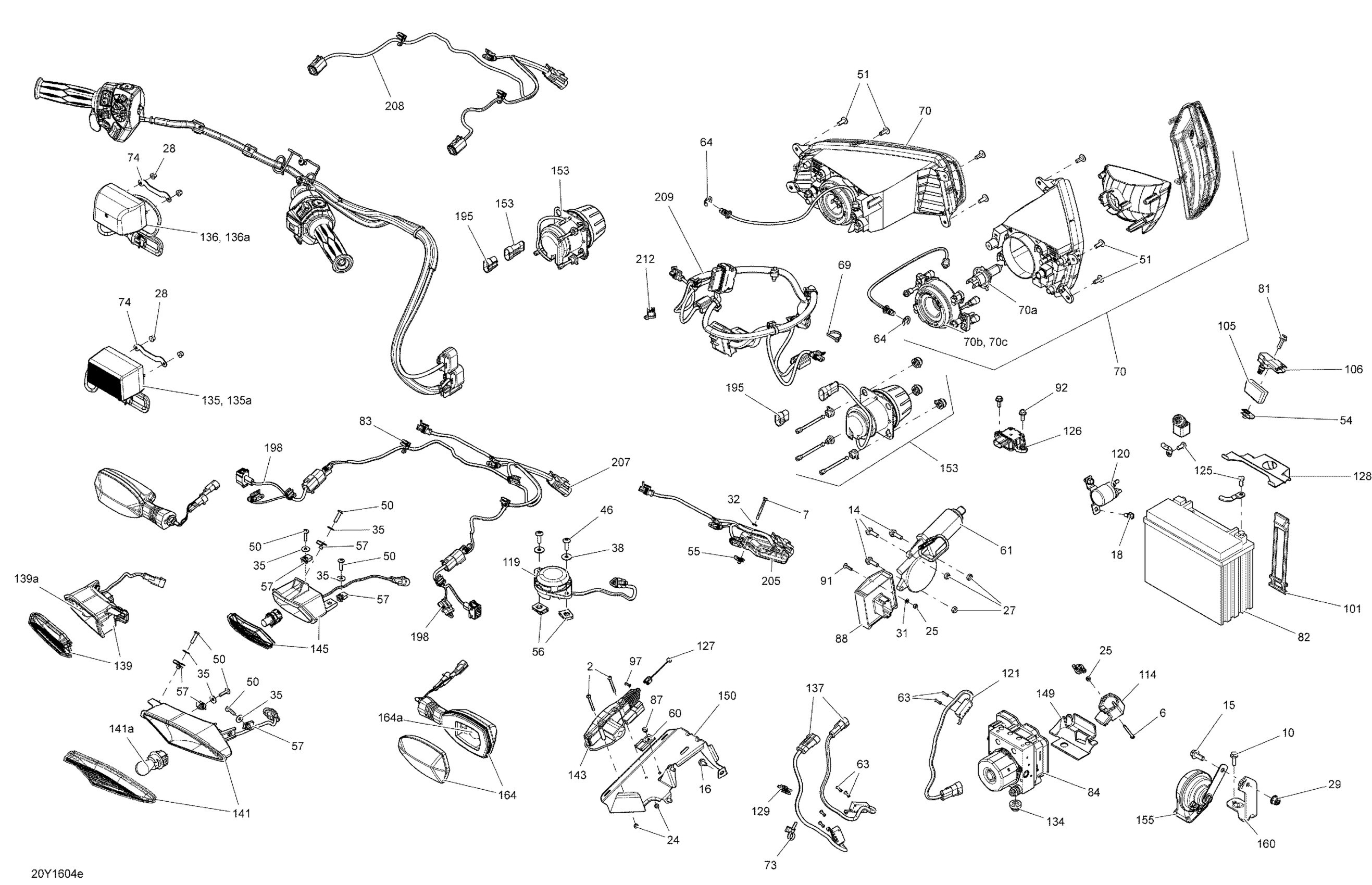

Can-Am F3, 2016 10- Electrical System - Package Standard-S-Special - Headlamp And Accessories Diagram

Socket Head Screw M4 X 40

205444056

$2.11

Hex. Cap Screw

207144044

$1.01

Hex. Screw M4 X 40

207144060

$4.44

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Screw

207682034

$2.11

Hex. Forming Screw M6 X 10

210261050

$1.69

Hex. Flange Screw M6 X 12

210261250

$1.90

Elastic Stop Nut M4

232541414

$0.58

Elastic Stop Nut M4

232541484

$0.74

Elastic Stop Nut M6

232561434

$1.99

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 4 mm

234041480

$0.74

Flat Washer 4 mm, Stainless

234041600

$1.15

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Torx Truss Screw M5 X 20

250000715

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Panel Nut M6 X 1.0

250100198

$2.11

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Panel Nut M6 X 1.0

250100208

$1.46

Panel Nut M5 X 0.8

250100176

$4.09

Clip

270000141

$11.49

Actuator Motor

710007256

$227.99

Pop Rivet

293150150

$2.40

E-Circlip

293370013

$0.65

Tie Wrap 142 mm

293750002

$1.25

LH Headlamp

710004701

$239.99

RH Headlight | Includes 0d to 0d3

710006998

$239.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rubber Cap Protector

219800280

$19.49

Spring

219800281

$3.49

Tie-Rap 173 mm

293750009

$1.04

Plate

710004815

$18.49

Hex. Flange Screw M6 X 25

207662554

$1.48

Battery, 12 Volts, 21 Amperes

410922962

$194.99

Clip Tie-Rap

293750063

$8.75

VCM Module

219800375

$1,229.99

Pop Rivet 3/16"

390402400

$0.35

PBM Module Ass'y

710005887

$479.99

Torx Screw M4 X 16

250000750

$1.68

Hex. Flange Screw M6 X 16

210261650

$1.67

Pop Rivet 5/32

390403000

$0.40

Latch

520000528

$7.69

Foam Filter

707000586

$5.50

Pressure And Temperature Sensor

707000995

$88.99

Steering Position Sensor

219800354

$269.99

Passenger Detection Switch

710008103

$76.99

Starter Relay

710007777

$48.49

Brake Pressure Switch Ass'y

710001379

$43.49

Battery Bolt Kit

250000282

$7.29

Yaw Rate Sensor

710002677

$194.99

Reverse Cable

710002889

$31.99

Battery Holder

710002893

$17.49

Clip Tie-Rap

710002899

$8.49

Shock Damper

710003279

$10.49

License Plate Light

710003348

$70.99

Bulb 12V 10W | Not Shown

415129261

$2.46

License Plate Light

710003349

$70.99

Bulb 12V 10W | Not Shown

415129261

$2.46

Brake Light Switch Ass'y

710003412

$46.49

LH Rear Flasher | Except Japan

710003707

$58.49

Flasher Bulb

219800304

$6.66

RH Rear Flasher | Except Japan

710003708

$61.49

Flasher Bulb

219800304

$6.66

Actuator

710011269

$64.99

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

VCM Harness Protector

710003996

$2.79

Reverse Actuator Support

710005642

$30.99

RH Low Beam | Europe, Brazil

710004151

$449.99

RH Low Beam | Australia, Japan

710004153

$449.99

LH Low Beam | Europe, Brazil

710004150

$439.99

LH Low Beam | Australia, Japan

710004152

$449.99

HORN - Call your local BRP dealership

710004229

$28.99

BLACK HORN SUPPORT - Call your local BRP dealership

710004412

Unavailable

Rear Flasher | Europe, Australia, Brazil

710004400

$81.49

Bulb 12V 21W | Not Shown

715900043

$16.65

Connector Plug

710004901

$13.22

TAIL-STOP-FLASHER-LIGHTS ADAPTER - Call your local BRP dealership | Japan

710005121

Unavailable

Rear Box Wiring Harness

710007697

$194.99

WIRING HARNESS REAR - Call your local BRP dealership | Europe, Australia, Brazil

710004962

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership | Japan

710004963

Unavailable

Dashboard Harness

710004986

$109.99

Dashboard Harness | Europe

710004987

$109.99

Clip Tie-Rap | Package North Edition

710005037

$9.17
