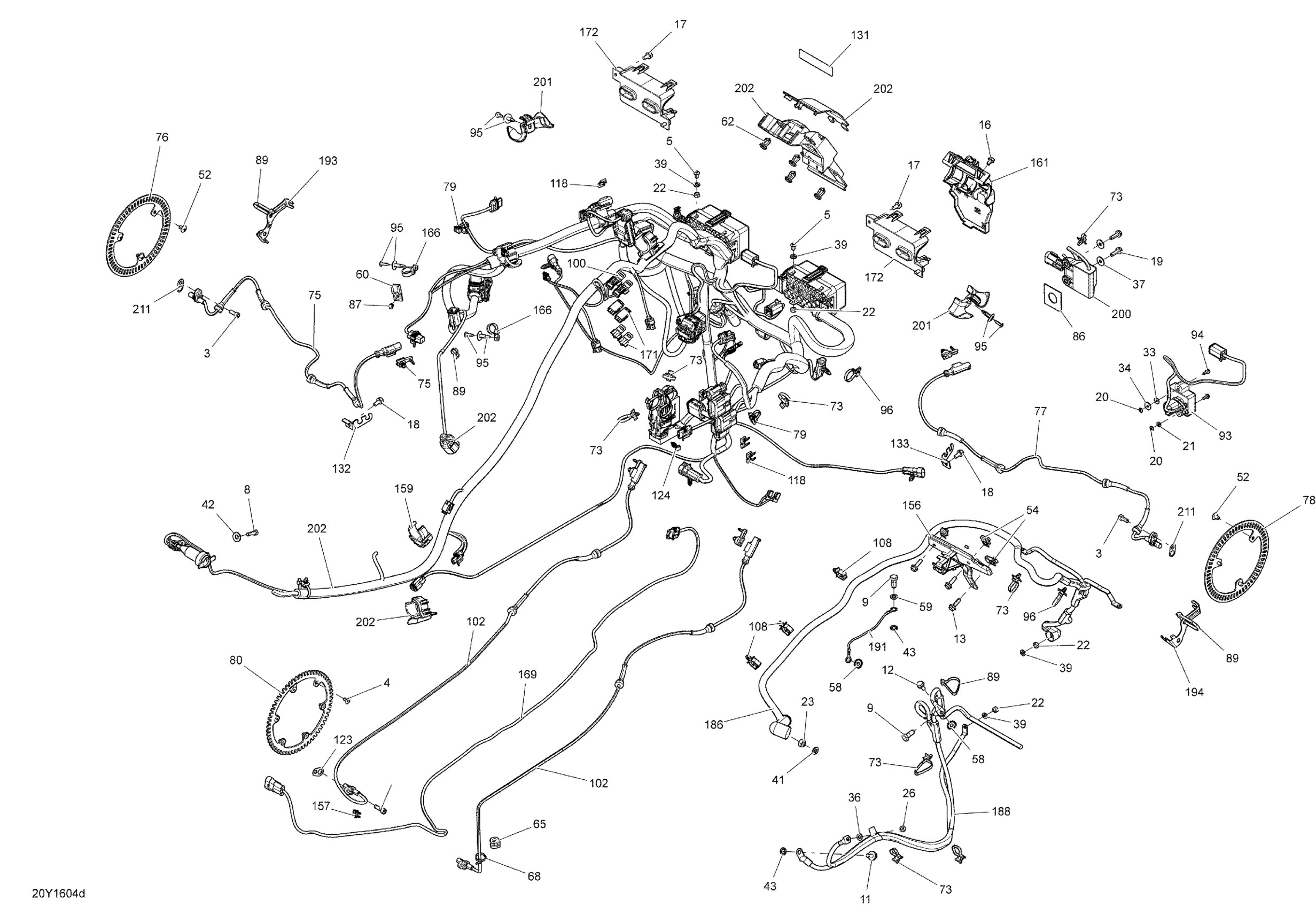

Can-Am F3, 2016 10- Electrical System - Package Standard-S-Special - General Diagram

#

Description
Price

3

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

4

Socket Head Screw M5 X 10

205851036

$6.77

5

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

8

Hex. Forming Screw M6 X 20

207162060

$1.29

9

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

11

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Screw M6 X 20

207662044

$2.00

16

Hex. Forming Screw M6 X 10

210261050

$1.69

17

Hex. Flange Screw M6 X 12

210261250

$1.90

18

Hex. Flange Screw M6 X 12

210261250

$1.90

19

Hexagonal Head Screw

210262050

$2.11

20

Push Nut | Not shown

211100002

$2.19

21

Flat Washer, Emhart

213200016

$0.72

22

Hex. Nut M6

232061600

$1.15

23

Hex. Nut M8

232081414

$0.72

26

Elastic Stop Nut M6

232561414

$0.55

33

Flat Washer 4 mm, Stainless

234042600

$1.15

34

Flat Washer 5 mm, Stainless

234052400

$2.85

36

Stainless Flat Washer M6

234061600

$0.33

37

Flat Washer 6 mm

234062410

$0.77

39

Lock Washer Helical M6

234161601

$1.15

41

Lock Washer 8 mm, Stainless

234181601

$0.55

42

Spring Washer M8

234281704

$2.11

43

Serrated Lock Washer 8 mm

234481608

$1.15

52

Torx-truss M/s M6 X 10

250000995

$4.44

54

Panel Nut M6 X 1.0

250100198

$2.11

58

Lock Washer Serrated M6

250200041

$1.15

59

Washer

250200111

$2.11

60

Clip

270000141

$11.49

62

Tuflok Plastic Rivet

293150230

$1.47

68

Tie Wrap 94 mm | 4X4

293750001

$1.03

73

Tie-Rap 173 mm

293750009

$1.04

75

Kit Speed Sensor

219800456

$86.99

76

Front Sensor Wheel

705601512

$43.99

77

Kit Speed Sensor

219800456

$86.99

78

Front Sensor Wheel

705601512

$43.99

79

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

80

Sensor Wheel

705601372

$46.99

86

Rubber Bumper

293830091

$8.29

87

Pop Rivet 3/16"

390402400

$0.35

89

Tie-Rap 180 mm

414115200

$0.11

93

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$194.99

94

HEX. SCREW FORMING M4 X 16 - Call your local BRP dealership

250000674

Unavailable

95

Tuflock Phillips Plastic Screw

414745900

$1.69

96

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

102

Speed Sensor

706202361

$164.99

108

HARNESS SUPPOR - Call your local BRP dealership

709000634

Unavailable

118

Lock

710001222

$2.09

123

Shim

710002023

$2.85

124

Connector Holder

710002033

$3.39

131

RH/LH Fuse Box Decal

710003077

$0.64

132

Speed Sensor Holder

710003156

$11.49

133

Speed Sensor Holder

710003157

$11.49

156

CONNECTOR SUPPORT - Call your local BRP dealership

710004256

Unavailable

159

Cable Support

710004299

$4.19

161

Wire Support

710004308

$13.49

166

Tie Rap

710004424

$6.29

169

Tail Harness

710004455

$25.99

171

Connector With Cap

710004456

$12.49

172

Fuse Holder Support

710004472

$10.01

186

POSITIVE CABLE - Call your local BRP dealership

710004736

Unavailable

188

Start Cable

710004738

$54.99

191

Fuel Tank Cable

710005134

$19.49

193

LH Support Wire

710004860

$2.29

194

RH Support Wire

710004861

$2.29

200

Dess Module

710004916

$179.99

201

Harness Holder

710004931

$1.59

202

Main Harness SE6

710004939

$969.99

202

Main Harness SM6

710004938

$969.99
