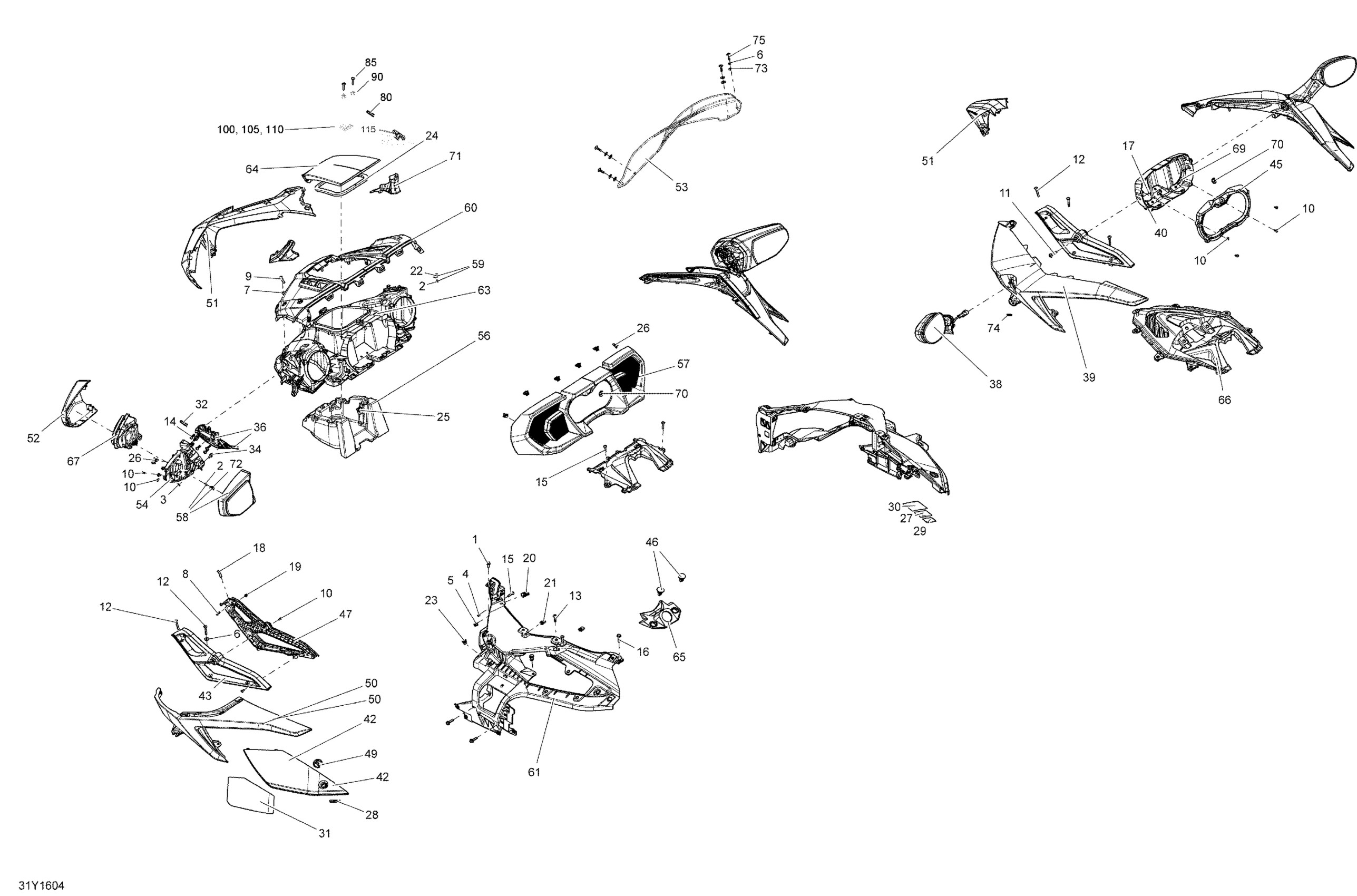

Can-Am F3, 2016 09- Body And Accessories - Console Diagram

Hex. Flange Screw M6 X 16

210261650

$1.67

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Elastic Stop Nut M6

232561600

$1.15

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Flat Washer M6

234061600

$0.33

Screw-Torx Button Head M5 X 14

235551454

$7.51

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Torx Truss Screw K40 X 12

250000577

$2.11

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

Torx Screw Nylon

250000732

$2.11

Torx Screw M6 X 25

250000758

$2.11

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Torx Screw M5 X 25

250000762

$2.11

Hex. Flange Screw M6 X 25

250000793

$2.11

TORX-TRUSS M/S M4 X 12 - Call your local BRP dealership

250000802

Unavailable

Torx Truss Screw M6 X 25

250000807

$2.11

Cap Nut M5

250100152

$2.00

Panel Nut M6 X 1.0

250100208

$1.46

Panel Nut M5 X 0.8

250100176

$4.09

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Tuflok Plastic Rivet

293150230

$1.47

Seal

293250406

$28.99

Latch | Model with Package T / LTD

293750071

Unavailable

Edge Clip

517302785

$0.88

Brake Fluid Warning Decal

704903119

Unavailable

Safety Card Decal

704904673

Unavailable

Decal, XPS

704904812

$17.49

Caution Decal Oil Level, English

704904924

Unavailable

Warning Decal

704905464

Unavailable

Spring

705006661

$3.39

Stud Ball M5

708400538

$18.49

Flat Head Stud M5

705006733

$20.99

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

LH Lighted Mirror Ass'y

705008964

$284.99

RH Lighted Mirror Ass'y

705008969

$284.99

LH Steel Black Console Fairing

708400023

$229.99

RH Steel Black Console Fairing

708400024

$229.99

Cluster Holder

708400005

$23.99

LH Access Panel, B-313 Vegas White

708400255

$249.99

RH Acces Panel, B-313 Vegas White

708400260

$249.99

Steel Black, LH Access Panel

708400256

$249.99

Steel Black, RH Access Panel

708400257

$249.99

LH RED ACCES PANEL - Call your local BRP dealership

708400136

Unavailable

Red Rh Acces Panel

708400137

$249.99

Trim_Console Lh B-321

708400253

$249.99

Trim_Console Rh B-321

708400259

$249.99

LH Upper Console Header

708400016

$27.99

RH Upper Console Header

708400017

$27.99

LH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model- White Vegas

708400119

Unavailable

RH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model Dragon Red

708400120

Unavailable

CLUSTER BEZEL - Call your local BRP dealership

708400022

$20.99

Cap

708400046

$3.89

LH Slider Support

708400053

$34.99

RH Slider Support

708400054

$37.99

Cover Latch Quarter Turn

708400065

$2.79

Steel Black, LH Consol Fairing

708400066

$219.99

Steel Black, RH Consol Fairing

708400068

$219.99

Bare, LH Console Fairing

708400067

$98.99

RH Consol Fairing, B-313 Vegas White | Model with Package LTD & Color Pearl White

708400181

$219.99

Intense Red, LH Console Fair | Model with Package LTD & Color Intense Red

708400283

$219.99

Intense Red, RH Console Fair | Model with Package LTD & Color Intense Red

708400284

$219.99

Bare, RH Console Fairing

708400069

$98.99

Magnesium LH Consol Fair | Model with Package LTD & Color Magnesium

708400180

$214.99

Black Deep Nose Fairing

708400011

$37.99

Black Carbon Nose Fairing | Model with Package S / SPE

708400072

$92.99

Steel Black, Nose Fairing

708400075

$229.99

Nose Fairing, B-313 Vegas White | Model with Package LTD & Color Pearl White

708400187

$229.99

Intense Red, Nose Fairing | Model with Package LTD & Color Intense Red

708400282

$224.99

Steel Black, Mirror Shell LH | Model with Package T

708400497

$144.99

Steel Black, Mirror Shell RH | Model with Package T

708400498

$144.99

Bare, RH Front Rear View Mirror Trim

708400464

$26.99

Trim_Rear View Mirror Fl B-313 | Model with Package LTD & Color Pearl White

708400495

$159.99

Rh Mirror Cover Intense Red Pearl | Model with Package LTD & Color Intense Red

708400197

$164.99

Lh Mirror Cover Intense Red Pearl | Model with Package LTD & Color Intense Red

708400193

$164.99

Windshield

708400342

$399.99

LH Mirror Support

708400224

$33.99

RH Mirror Support

708400225

$33.99

Pod Foam

708400103

$16.49

Not Available As Spare Part - Friction Washer

Unavailable

Caqrbon Black Dashboard

708400126

$164.99

LH GRILLE - Call your local BRP dealership

708400094

Unavailable

RH Grille

708400095

$10.99

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

Upper Fairing

708400221

$36.99

RH Console Support | Included 300 to 300b

708400171

$104.99

LH Console Support | Included 100 to 100b

708400170

$99.99

Upper Pod | Included 550 to 550f

708400219

$154.99

Glove Box Door

708400217

$169.99

Switch Bezel

708400205

$14.67

Upper Fairing

708400208

$36.99

RH Front Flasher Unit

710001511

$163.99

LH Front Flasher Unit

710001510

$163.99

Torx Screw M6 X 20

250000722

$1.68

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

Carbon Black, LH Windshield Base

708400127

$129.99

Carbon Black, RH Windshield Base

708400128

$129.99

Chrome, LH Windshield Base

708400185

$129.99

Chrome, RH Windshield Base

708400186

$129.99

Spring

705010625

$10.99

Rubber Washer 5 mm

250200024

$2.19

Flat Washer 4 mm

234041480

$0.74

Torx Screw M5 X 20

250000528

$2.11

Spring

705006661

$3.39

Torx Screw M5 X 25

250000762

$2.11

Elastic Flange Nut M5

233251494

$2.11

Lever

708400213

$42.99

Stud M5

705011056

$19.49

Stainless Steel Flat Washer M5

234052670

$1.01

Receptacle

708400215

$7.87
