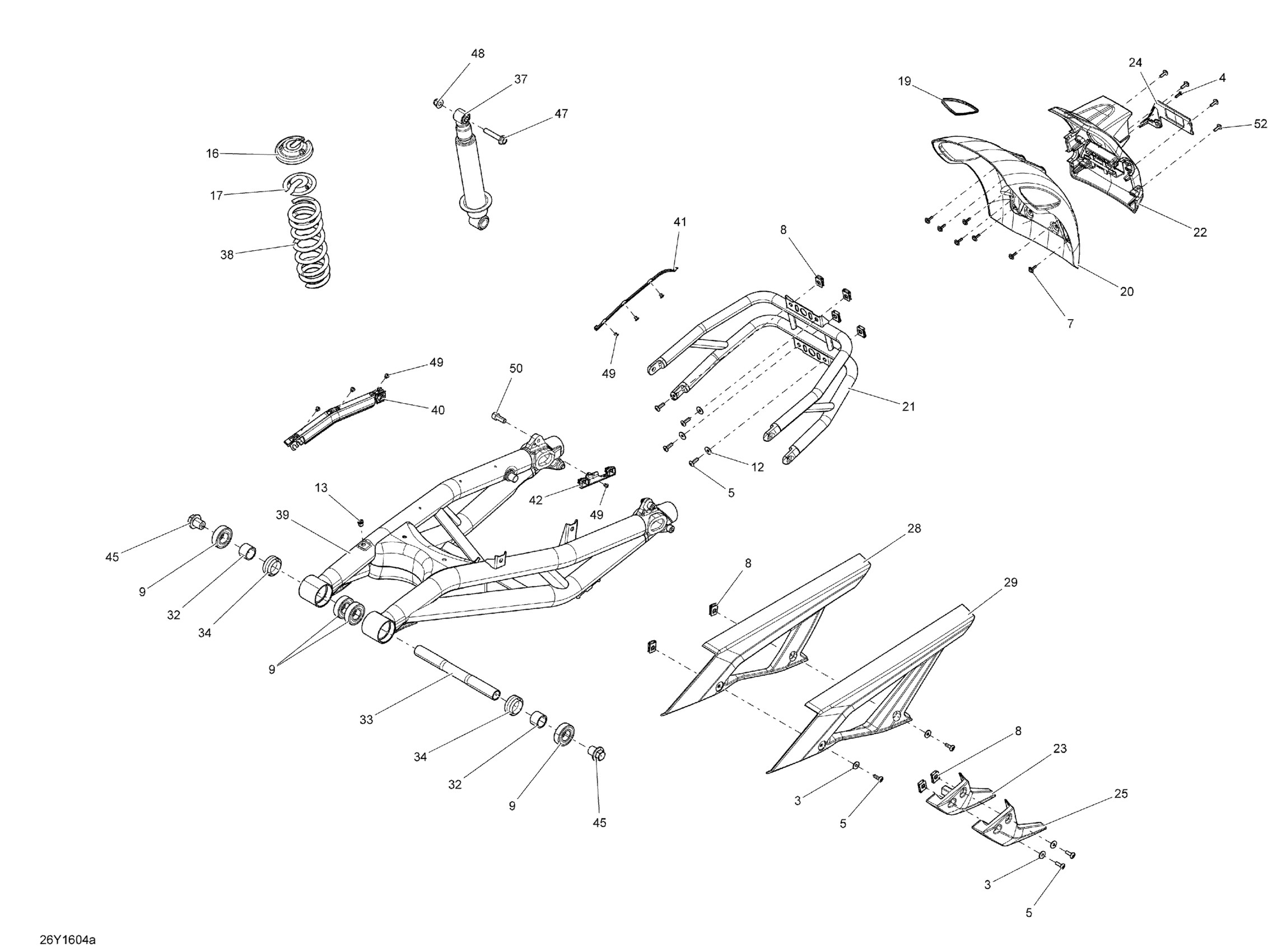

Can-Am F3, 2016 08- Suspension, Rear - Except Package T-LTD Diagram

#

Description
Price

3

Stainless Steel Flat Washer

234062670

$2.11

4

Flange Torx Screw K40 X 16

250000287

$2.11

5

Torx Truss Screw M6 X 20

250000350

$5.29

5

Torx Truss Screw M6 X 20

250000705

$2.11

7

Screw M4 X 16

250000725

$3.49

8

Panel Nut M6 X 1.0

250100208

$1.46

9

Ball Bearing

293350115

$12.11

12

Flat Washer

250200082

$0.42

13

Insert

293450275

$12.99

16

Spring Stopper

503193781

$18.49

17

Cap

503193782

$10.49

19

Red, Lateral Reflector

705003412

$15.49

19

Amber, Lateral Reflector

705002423

$15.49

20

Rear Fender

705011661

$204.99

21

Carbon Black Rear Fender Support

705008249

$214.99

22

Rear Fender Moulding

705009197

$204.99

22

Rear Fender Moulding

705008241

$204.99

23

Lower Belt Guard

705008756

$45.99

24

Cover Moulding

705008990

$11.49

25

Lower Belt Guard

705009059

$45.99

28

Upper Belt Guard

705010380

$53.99

29

Upper Belt Guard

705010381

$53.99

32

Spacer

706001152

$9.49

33

Swing Arm Axle

706001182

$93.99

34

Sleeve

706001366

$1.26

37

Shock

706001703

$137.49

38

Spring

706002113

$83.49

39

Black, Swingarm

706002313

$466.49

39

RED SWINGARM - Call your local BRP dealership

706002314

Unavailable

39

Carbon Black, Swingarm

706002315

$158.99

40

Cable Cap

706202131

$12.16

41

Cable Cap

706202219

$6.98

42

Cable Cap

706202264

$5.29

45

Bolt M20

706001579

$16.87

47

Hex. Flange Screw M10 X 55

207605554

$7.62

48

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

49

Rivet 3/16"

293150102

$0.70

50

Allen Screw S.GRIP M10 X 25

205502560

$6.77

52

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
