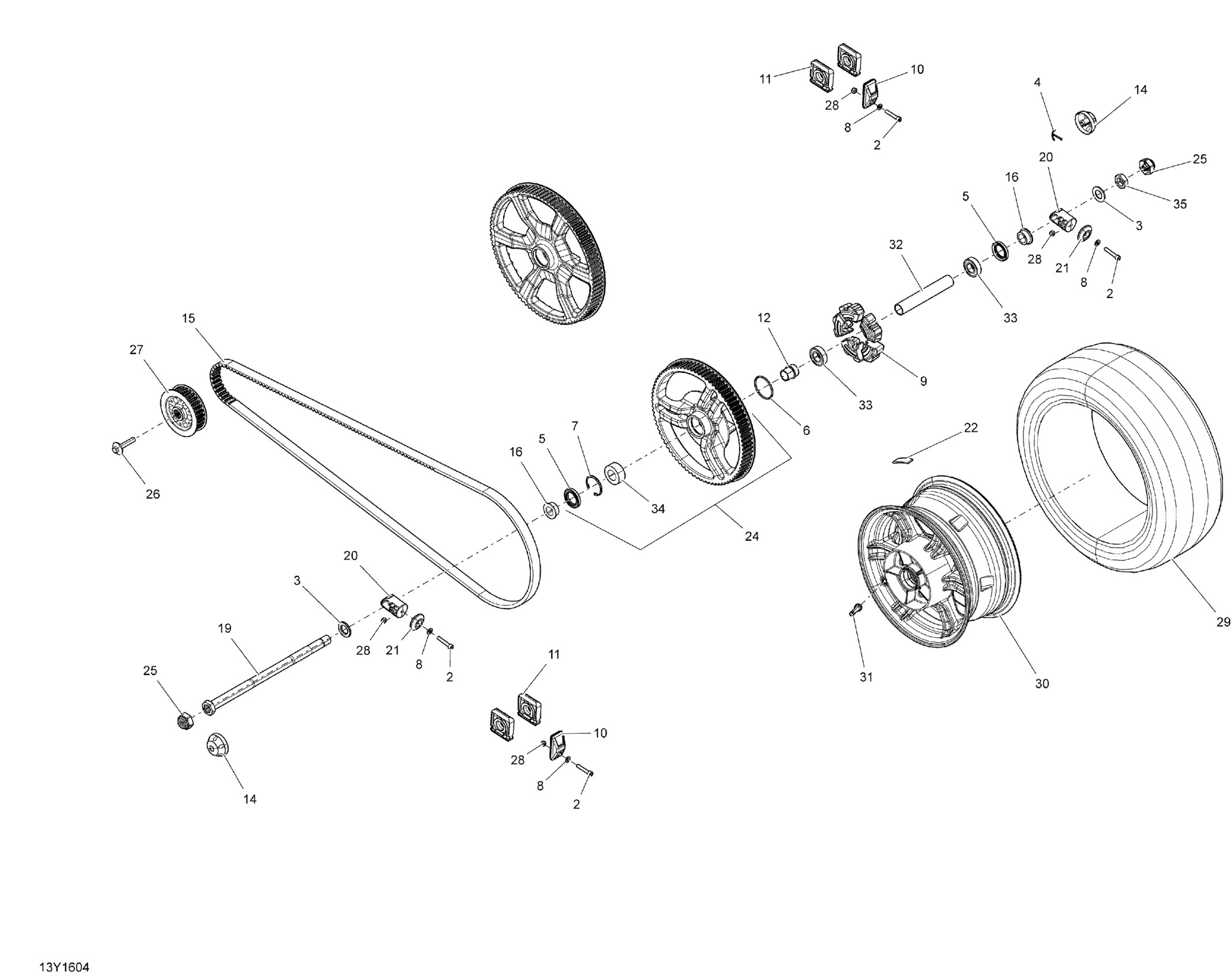

Can-Am F3, 2016 08- Drive System, Rear Diagram

#

Description
Price

2

Socket Screw DIN.912

250000713

$2.85

3

Flat Washer

250200163

$3.49

4

Cotter Pin

250400047

$2.32

5

Seal

293200094

$10.33

6

O-Ring

293300124

$3.38

7

Circlip

293370053

$9.95

8

Washer

503192494

$3.17

8

Flat Washer 8 mm

234081410

$0.83

9

Damper

705500736

$24.49

10

Adjustment Support

705502450

$15.89

11

Sliding Block

705502448

$14.82

12

Spacer

705500853

$23.49

14

RH Cap

705501022

$9.19

14

LH Cap

705501081

$9.27

15

Drive Belt

705502157

$409.99

15

Drive Belt

705501304

$409.99

16

Spacer

705501602

$19.49

19

Rear Axle Ass'y

705502024

$116.49

19

Rear Wheel Axle

705501691

$99.49

20

Sliding Block

705502027

$17.59

21

End Stop Adjusment

705502085

$25.99

22

Self Adhesive Weight, 5G 20mm

705502106

$4.69

24

SILVER SPROCKET 89 TEETH ASS'Y - Call your local BRP dealership | Package-STD North America

705502216

Unavailable

24

Carbon Black, Sprocket 89 Teeth Ass'y | Included 200 to 200d

705502187

$699.99

24

Silver - Pulley Ass'y, 79 Teeth | Model-RS STD

705502015

$509.99

24

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

25

Nut Cap

705502248

$8.15

26

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

27

Sprocket 28 Teeth

705503239

$159.99

28

Hex. Elastic Nut M8

250100141

$2.00

29

Rear Tire 225/50R15

705503310

$201.49

30

RIM_15 INCH M-519 X 7 - Call your local BRP dealership | Package-STD

705502089

Unavailable

30

Black, Rear Rim

705501992

$391.99

31

Rim Valve With Cap

705400193

$8.69

32

Spacer Tube

705502093

$17.59

33

Ball Bearing

293350115

$12.11

34

Double Row Bearing

293350065

$33.99

35

Hex. Jam Nut M24

250100170

$12.12
