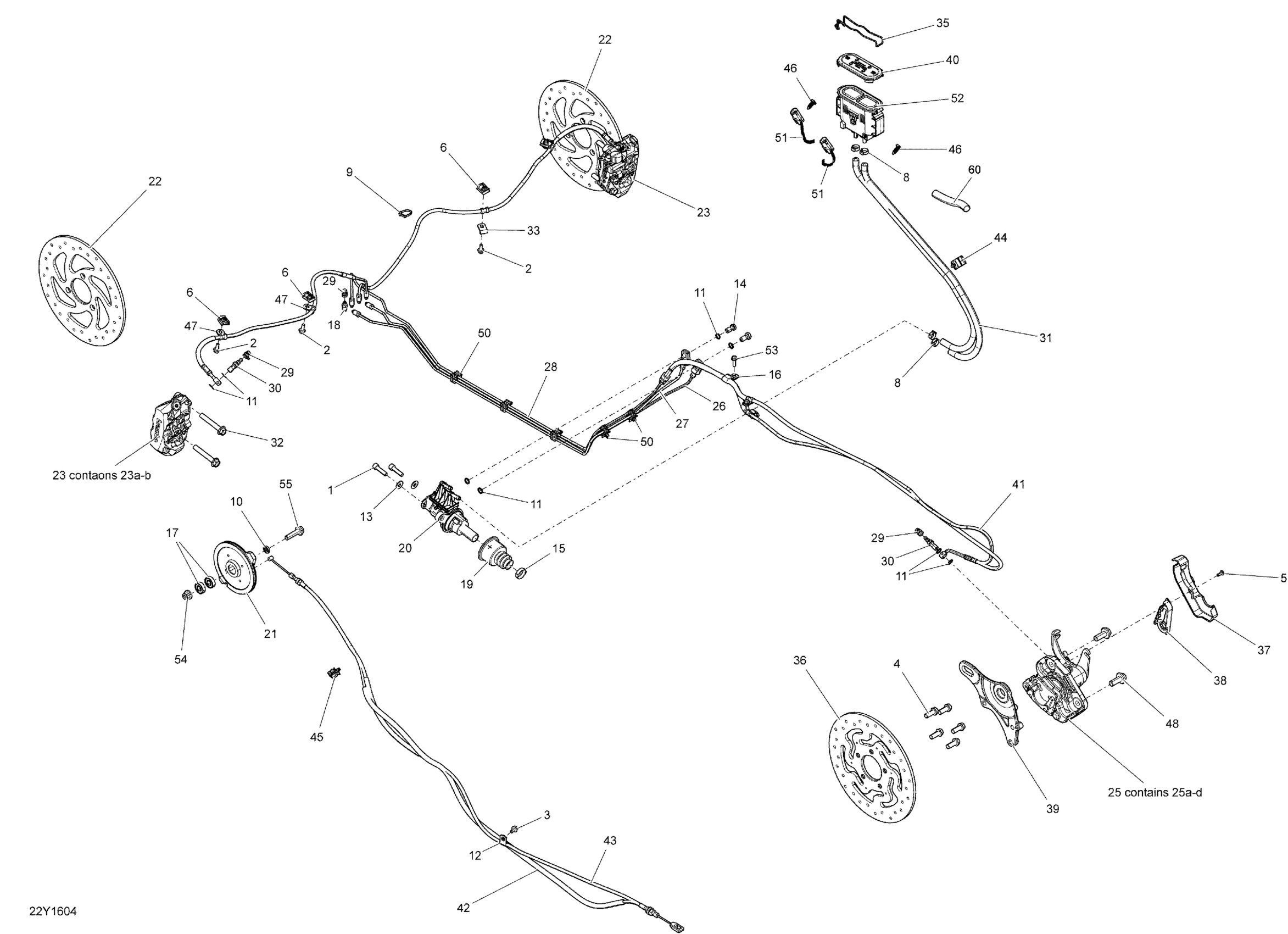

Can-Am F3, 2016 06- Hydraulic Brake Diagram

#

Description
Price

1

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

3

Hex. Flange Screw M6 X 20

207662054

$1.01

4

Hex. Flange Screw M10 X 25

250001054

$14.21

5

Torx Screw 24 X 0.5

250000821

$1.90

6

Panel Nut M6 X 1.0

250100208

$1.46

8

Crimp Clamp, 15.3-706R

293650047

$3.29

9

Tie Wrap 368 mm

293750008

$1.04

10

Bushing

293900087

$7.90

11

Washer

414920600

$1.90

12

Cable Guide

706202587

$11.99

13

Washer

506151245

$0.93

14

Banjo Bolt

507032551

$5.61

15

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

16

Open Clamp

515175507

$1.89

17

Bearing

705600458

$19.99

18

Bleeder Screw

705600502

$11.11

19

Bellow

705600716

$12.10

20

Tandem Cylinder Master

705600722

$369.99

21

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

22

Front Brake Disk

705601631

$153.99

23

RH Front Caliper | Includes 20 to 20b

705600988

$381.49

23

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

23a

Brake Pad Kit

219800237

$79.49

23b

Spring/Pin/Clip Kit

219800238

$26.99

25

Rear Caliper | Includes 90 to 90d

705600989

$497.99

25a

Brake Pad Kit

219800239

$79.49

25b

Spring/Pin/Clip Kit

219800240

$35.99

25c

Rear Cable Support Kit

219800241

$41.49

25d

Rear Dust Cover

219800242

$32.99

26

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

27

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

28

Rear Brake Rigid Tube

705601159

$31.99

29

Bleeder Bolt Cap

705601190

$4.44

30

Banjo Bolt/ Bleeder

705601201

$19.99

31

Formed Hose

705601236

$17.49

32

Hex Flange Screw M10 X 65

207506556

$6.77

33

RH Front Hose | RS

705601254

$61.49

35

Spindle Lock

705601294

$15.81

36

Rear Brake Disk

705601632

$244.99

37

Caliper Trim Cap

705601400

$10.43

38

Caliper Trim Cap

705601406

$10.43

39

REAR BRAKE CALIPER SUPPORT - Call your local BRP dealership

705601450

Unavailable

40

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

41

Brake Line

705601500

$74.99

42

Parking Brake Cable

707001375

$66.99

43

Parking Brake Cable

707001856

$66.99

44

Hose Support

709000571

$4.65

45

Harness Support

709000633

$7.19

46

Connector Holder

710002033

$3.39

47

-LH Front Hose

705601471

$61.49

48

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

50

Anchorage Tube

705601987

$5.18

51

Oil Level Sensor

705601073

$54.99

52

Diaphragm Cover Ass'y

219800350

$17.59

53

Hexagonal Head Screw

210262050

$2.11

54

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

55

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

60

Hose 4.32Mm 3000Mm Long

219704415

$55.99
