Description

Price

1

Flat Washer M6, Stainless

234062600

$0.77

2

Torx Truss Screw M6 X 16

250000348

$2.11

3

Hex. Flange Screw M6 X 20

250000768

$2.11

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Breather Valve

273000234

$14.49

6

Cap Plug

293000105

$4.39

7

Tridon Gear Clamp

293650173

$3.09

8

Spring Clamp

414554800

$0.88

9

Gemi Clamp

508000150

$12.72

10

Gemi Clamp

508000346

$10.33

11

Tie Rap

509000165

$2.11

12

Air Intake Adaptor

707800388

$33.99

13

Formed Hose

707800824

$18.99

14

Air Filter

707800483

$47.49

15

Air Intake | Includes 10 to 10q

707800584

$184.99

16

Intake Adaptor

707800590

$33.99

17

Cover

707801131

$19.99

18

Air Intake Bracket | Includes 50 to 50b

707800602

$16.99

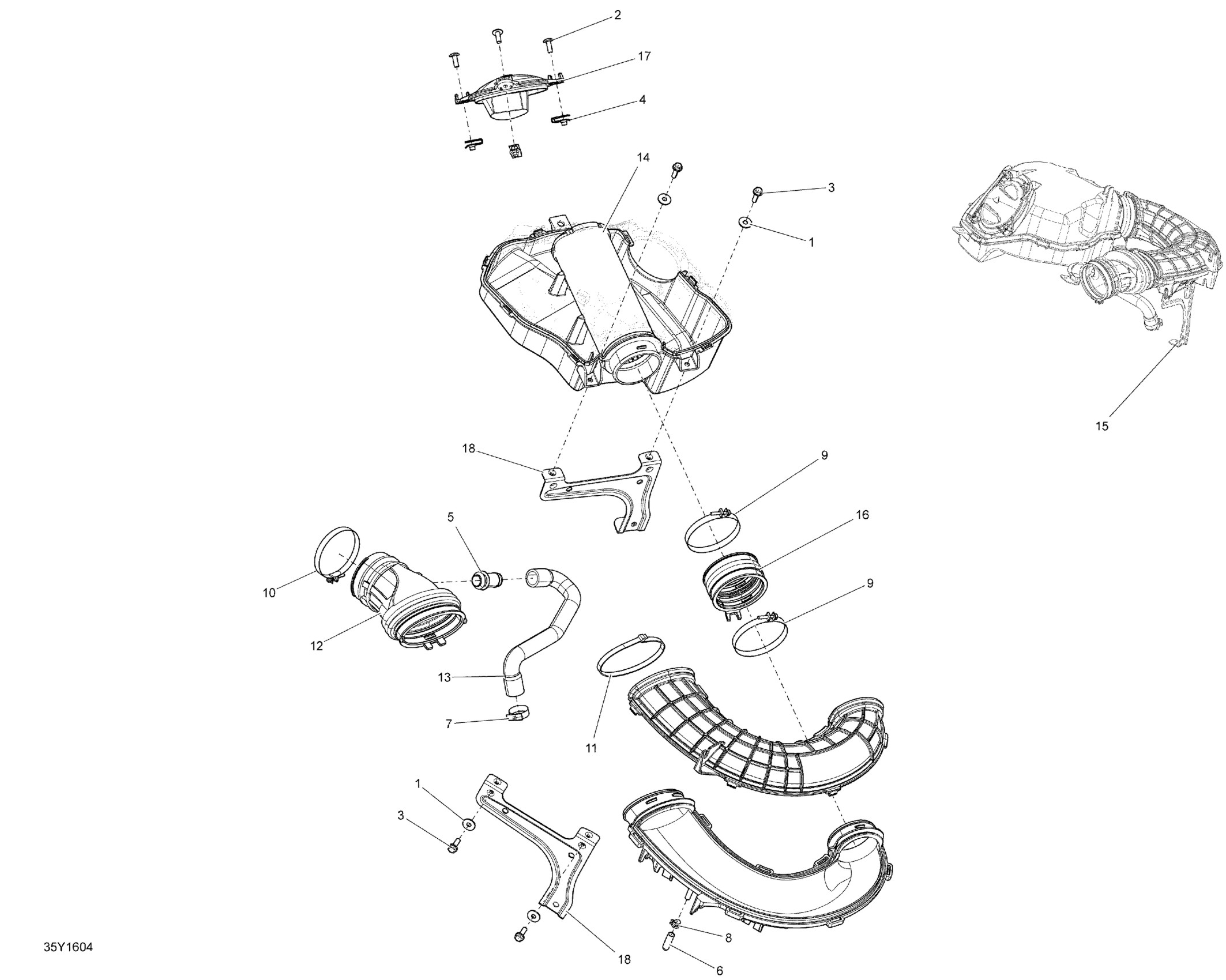

Can-Am F3, 2016 02- Air Intake Diagram

Flat Washer M6, Stainless

Torx Truss Screw M6 X 16

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Breather Valve

Cap Plug

Tridon Gear Clamp

Spring Clamp

Gemi Clamp

Gemi Clamp

Tie Rap

Air Intake Adaptor

Formed Hose

Air Filter

Air Intake | Includes 10 to 10q

Intake Adaptor

Cover

Air Intake Bracket | Includes 50 to 50b
