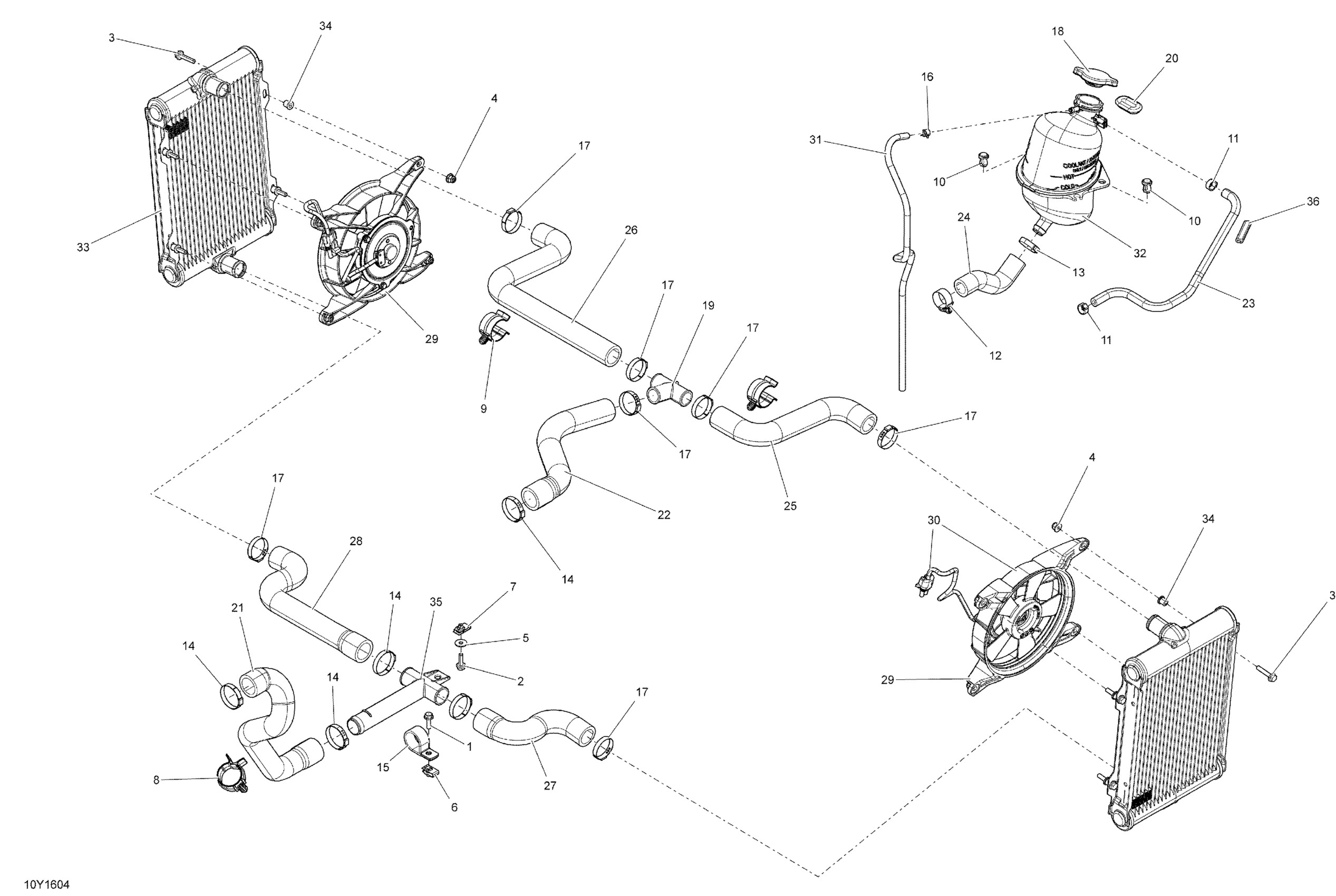

Can-Am F3, 2016 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Hex. Flange Screw M6 X 30

207663046

$1.69

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Flat Washer 6 mm

234062410

$0.77

6

Panel Nut M6 X 1.0

250100198

$2.11

8

Retainer

275500590

$9.69

9

Clip

275500951

$8.47

10

Tuflok Plastic Rivet

293150230

$1.47

11

Oetiker Gear Clamp

293650025

$3.09

12

Tridon Gear Clamp

293650051

$4.19

13

Oetiker Gear Clamp

293650165

$5.39

14

Oetiker Gear Clamp

293650199

$9.69

15

Open Clamp

293750035

$4.29

16

Spring Clamp

414554800

$0.88

17

Oetiker Gear Clamp 36.1MM

509000045

$8.29

18

Pressure Cap

509000187

$29.49

19

T-Fitting

509000219

$15.89

20

Oblong Grommet

705003668

$5.79

21

Lower Formed Water Pump Hose

709200877

$63.49

22

Upper Formed Water Pump Hose

709200871

$32.99

23

Formed Hose

709200324

$30.99

24

Lower Formed Coolant Tank Hose

709200874

$38.99

25

RH Upper Radiator Hose Formed

709200876

$31.99

26

LH Upper Radiator Hose

709200875

$32.99

27

RH Lower Formed Radiator Hose

709200872

$22.49

28

LH Lower Formed Radiator Hose

709200878

$32.99

29

Fan

709200523

$289.99

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

Coolant Tank

709200749

$99.99

33

Radiator

709200529

$433.99

34

Sleeve

709200553

$4.23

35

Manifold

709200580

$14.81

36

Trim 1000Mm Long

219704354

$15.99
