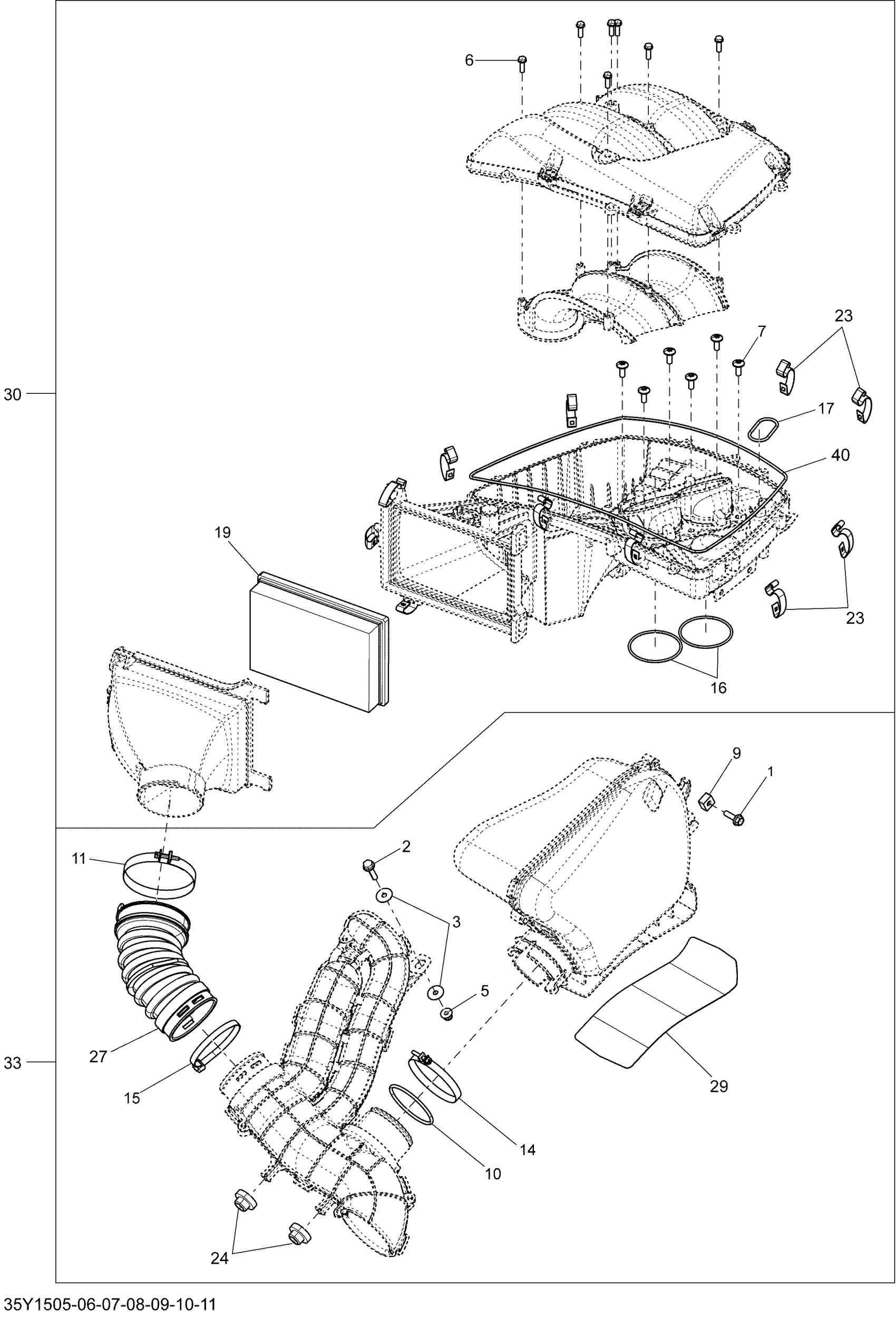

Can-Am Spyder STS Special Series SE5, 2015 02- Air Intake _35Y1508 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Flat Washer

224060201

$1.26

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Hex. Screw M4.8 X 1.8

243141680

$4.86

7

Torx Head Screw M6 X 16

250000717

$2.11

9

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

10

O-Ring

293300124

$3.38

11

Gemi Clamp

293650152

$15.49

14

Gemi Clamp

508000346

$10.33

15

Tie Rap

509000165

$2.11

16

O RING - Call your local BRP dealership

707800198

$3.79

17

GASKET - Call your local BRP dealership

707800491

Unavailable

19

Air Filter

707800306

$46.49

23

Cover Retainer

707800342

$9.19

24

Grommet | Europe

707800347

$10.49

27

Not Available As Spare Part - Friction Washer

Unavailable

29

HEAT SHIELD FOIL - Call your local BRP dealership

707800464

Unavailable

30

AIR INTAKE ASS'Y - Call your local BRP dealership

707800299

Unavailable

33

RESONATOR A'SSY - Call your local BRP dealership

707800472

Unavailable

40

GASKET - Call your local BRP dealership

707800491

Unavailable
