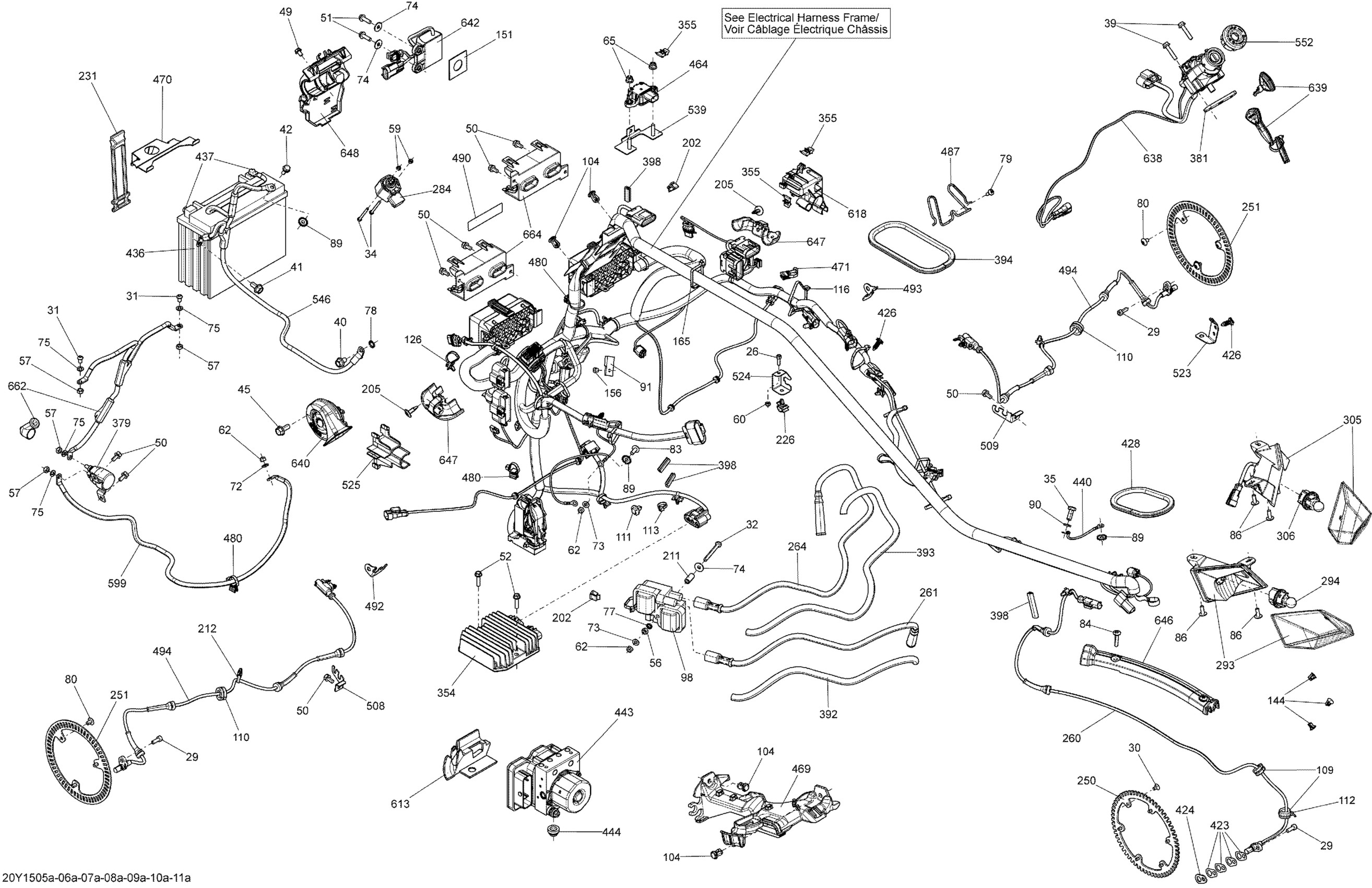

Can-Am Spyder ST SE5, 2015 10- Electrical System 1_20Y1505a Diagram

#

Description
Price

26

Socket Screw M5 X 16

205051644

$2.22

29

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

30

Socket Head Screw M5 X 10

205851036

$6.77

31

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

32

Hex. Screw M6 X 55

207065544

$2.11

34

Hex. Cap Screw

207144044

$1.01

35

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

39

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

40

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

41

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

42

Hex. Flange Screw M6 X 16

207661644

$0.74

45

Hex. Flange Screw M8 X 20

207682044

$1.15

49

Hex. Forming Screw M6 X 10

210261050

$1.69

50

Hex. Flange Screw M6 X 12

210261250

$1.90

51

Hexagonal Head Screw

210262050

$2.11

52

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

56

Hex. Nut M6

232061414

$0.53

57

Hex. Nut M6

232061600

$1.15

59

Elastic Stop Nut M4

232541484

$0.74

60

Hex. Elastic Nut M5 | X

232551600

$1.15

62

Elastic Stop Nut M6

232561434

$1.99

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Stainless Flat Washer M6

234061600

$0.33

73

Black, Flat Washer 6 mm

234061670

$1.25

74

Flat Washer 6 mm

234062410

$0.77

75

Lock Washer Helical M6

234161601

$1.15

77

External Serrated Lock Washer 6 mm

234461608

$1.15

78

Serrated Lock Washer 8 mm

234481608

$1.15

79

Torx Screw M5 X 14

250000742

$1.47

80

Torx-truss M/s M6 X 10

250000995

$4.44

83

Torx Truss Screw M6 X 16

250000348

$2.11

84

Torx Truss Screw M6 X 30

250000843

$2.11

86

Torx Truss Screw M6 X 16

250000721

$1.69

89

Lock Washer Serrated M6

250200041

$1.15

90

Washer

250200111

$2.11

91

Clip

270000141

$11.49

98

Ignition Coil

278001546

$158.99

103

Pop Rivet

293150150

$2.40

104

Tuflok Plastic Rivet

293150230

$1.47

109

Grommet

293720084

$6.09

110

Grommet

293720095

$7.69

111

Mount Dart

293730040

$1.04

112

Tie Wrap 94 mm | 4X4

293750001

$1.03

113

Tie Wrap 142 mm

293750002

$1.25

116

Tie Wrap 368 mm

293750008

$1.04

126

Tie-Rap 173 mm

293750009

$1.04

144

Tie Rap Mount

293750044

$2.49

151

Rubber Bumper

293830091

$8.29

156

Pop Rivet 3/16"

390402400

$0.35

165

Tie-Rap 180 mm

414115200

$0.11

202

Clip

414227300

$1.67

205

Tuflock Phillips Plastic Screw

414745900

$1.69

211

SPACER - Call your local BRP dealership

512059812

Unavailable

212

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

226

Tie Rap Mount (screwable)

515176795

$5.39

231

Latch

520000528

$7.69

250

Sensor Wheel

705601372

$46.99

251

Front Sensor Wheel

705601512

$43.99

260

Speed Sensor

706202361

$164.99

261

Cable Ass'y

707000399

$71.99

264

Cable Ass'y

707000518

$65.99

284

Steering Position Sensor

219800354

$269.99

293

LH Tail Light Ass'y

515176850

$59.49

294

Bulb

520000758

$9.10

305

RH Tail Light Ass'y

515176849

$59.49

306

Bulb

520000758

$9.10

354

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

355

Lock

710001222

$2.09

379

Starter Relay

710007777

$48.49

381

Switch Support

710001365

$20.99

392

Tubing 10 MM 1000MM Long

219704407

$2.79

393

Tubing 10 MM 1000MM Long

219704407

$2.79

394

Trim 1000Mm Long

219704354

$15.99

398

Trim 1000Mm Long

219704354

$15.99

423

Shim

710002023

$2.85

424

Shim

710002024

$5.66

426

Connector Holder

710002033

$3.39

428

Trim 1000Mm Long

219704354

$15.99

436

Not Available As Spare Parts

XXX

Unavailable

436

Battery, 12 Volts, 21 Amperes

410922962

$194.99

437

Not Available As Spare Parts

XXX

Unavailable

437

Battery Bolt Kit

250000282

$7.29

440

Fuel Tank Cable

710004368

Unavailable

443

VCM Module

219800375

$1,229.99

444

Shock Damper

710003279

$10.49

464

Yaw Rate Sensor

710002677

$194.99

469

Rear Support

710002860

$11.49

470

Battery Holder

710002893

$17.49

471

Tie-Rap Clip

710002896

$4.39

480

Clip Tie-Rap

710002899

$8.49

487

Grommet Spindle

710003017

$14.83

490

RH/LH Fuse Box Decal

710003077

$0.64

492

LH Support Wire

710004860

$2.29

493

RH Support Wire

710004861

$2.29

494

Kit Speed Sensor

219800456

$86.99

508

Speed Sensor Holder

710003156

$11.49

509

Speed Sensor Holder

710003157

$11.49

523

Connectors Bracket

710003305

$13.17

524

KNOCK HOLDER SUPPORT - Call your local BRP dealership

710003306

Unavailable

525

Connector Support

710003322

$4.19

539

YRS Holder

710003494

$15.99

546

Cable Neg

710004733

$61.99

552

Switch Cover

710003594

$16.49

599

START CABLE - Call your local BRP dealership

710004735

Unavailable

613

VCM Harness Protector

710003996

$2.79

618

Connector Support

710004086

$8.49

638

Ignition Switch with Harness

710005640

$306.99

639

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

639a

DESS Antenna

219800373

$60.49

640

HORN - Call your local BRP dealership

710004229

$28.99

642

Dess Module

710004916

$179.99

646

Protector

710004281

$25.99

647

WIRE SUPPORT - Call your local BRP dealership

710004307

Unavailable

648

Wire Support

710004308

$13.49

662

CABLE POSITIVE - Call your local BRP dealership

710004734

Unavailable

664

Fuse Holder Support

710004472

$10.01
