Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Hex. Nut M8

232081414

$0.72

3

Outer Support Plate

420259581

$64.49

4

Internal Compression Spring

420238140

$16.25

5

Compression Spring

420238135

$16.99

6

Spring Retainer

420247015

$15.87

7

Compression Spring

420238130

$18.49

8

Spring Retainer

420247017

$15.87

9

Primary Drive Gear Ass'Y | Includes 11 to 12

420684817

$551.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Spacer Sleeve

420247614

$10.16

12

Disc Spring

420239397

$18.49

13

THRUST WASHER - Call your local BRP dealership

420427040

$12.49

14

Support Plate

420259688

$64.49

15

Clutch Drum

420659720

$114.99

16

Flat Head Screw, M8 X 25

420941835

$3.91

17

Centrifugal Clutch Ass'y | Includes 17 to 24

420685545

$439.99

18

Bushing

420659852

$153.49

19

Cam

420659821

$35.99

20

Centrifugal Weight

420229947

$28.99

21

Pressure Plate

420659740

$77.49

22

Wave Spring

420238922

$35.99

23

Stop Plate

420626390

$16.31

24

Retaining Ring

420245080

$11.07

25

Retaining Ring

420245070

$11.07

26

Oil Gear Pump, 42 Teeth

420634478

$29.49

27

THRUST WASHER - Call your local BRP dealership

420626540

Unavailable

28

Thrust Washer

420627225

$12.70

29

Clutch Hub

420659751

$104.99

30

Spring Washer

420245830

$10.16

31

Hex. Nut M24

420242012

$16.33

32

PLATE, 2.5 MM - Call your local BRP dealership | See Item 49, Disc Kit

420659975

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Adjustment Plate Kit

420281535

$70.99

36

Disc Spring | See Item 49, Disc Kit

420238860

$28.99

37

Clutch Release Shaft Ass'y | Includes 37 to 42

420659799

$91.99

38

O-Ring

420430800

$4.09

39

Thrust Washer

420659890

$36.99

40

Needle Bearing

420632700

$14.82

41

Thrust Washer

420626560

$19.49

42

Snap Ring

420245440

$2.74

43

Pressure Plate Ass'y | Includes 43 to 44

420659739

$97.49

44

Thrust Washer

420626570

$28.49

45

Retaining Ring

420245250

$17.35

46

Disc Spring | See Item 49, Disc Kit

420238532

$73.99

47

Plate Inner

420259860

$17.67

48

Torx Flange Screw M6 X 20

420440207

$3.06

49

Disc Kit, Type 991 SE5

420281935

$669.99

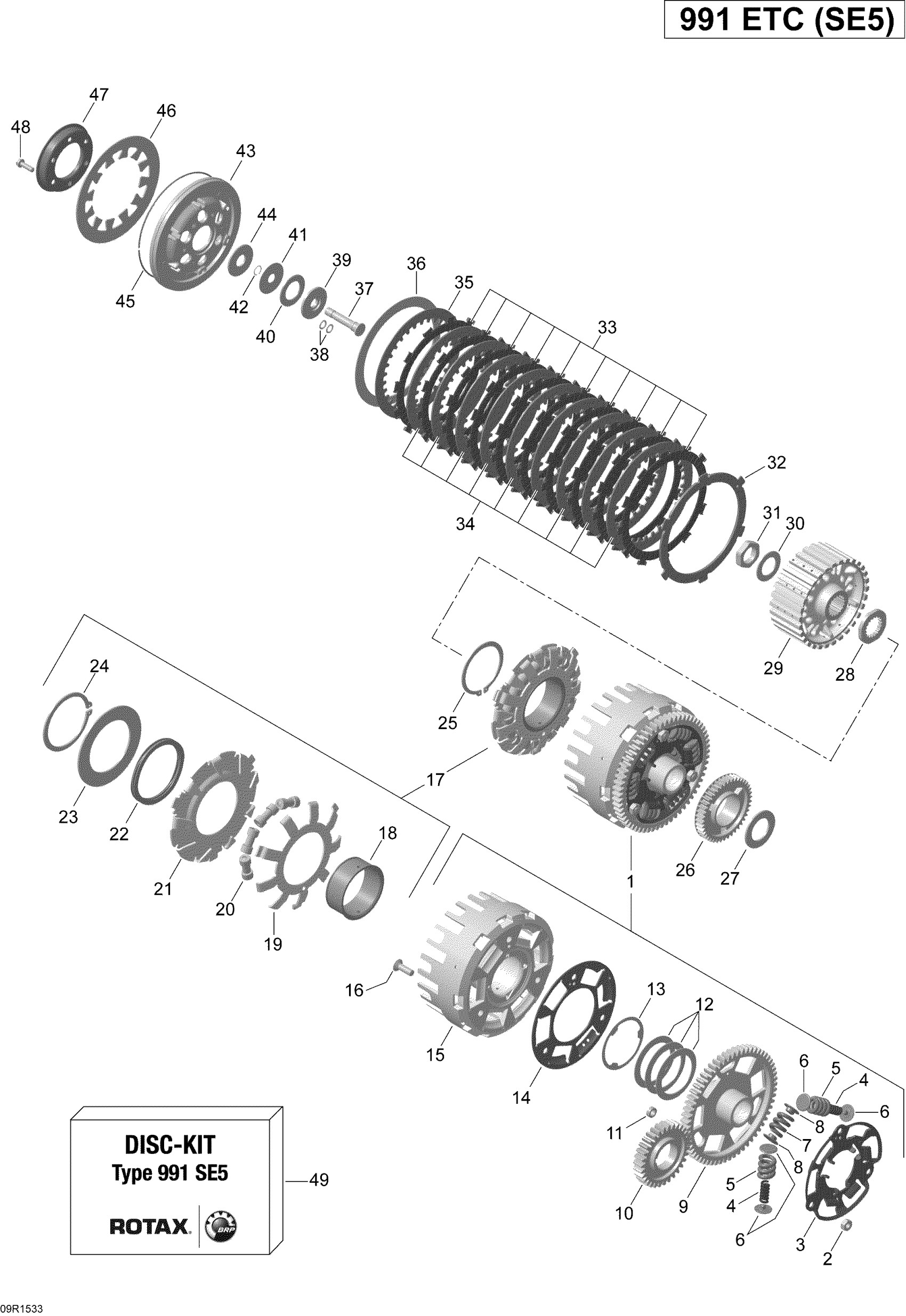

Can-Am Spyder ST Limited SE5, 2015 05- Clutch _09R1533 Diagram

Not Available As Spare Part - Friction Washer

Hex. Nut M8

Outer Support Plate

Internal Compression Spring

Compression Spring

Spring Retainer

Compression Spring

Spring Retainer

Primary Drive Gear Ass'Y | Includes 11 to 12

Not Available As Spare Part - Friction Washer

Spacer Sleeve

Disc Spring

THRUST WASHER - Call your local BRP dealership

Support Plate

Clutch Drum

Flat Head Screw, M8 X 25

Centrifugal Clutch Ass'y | Includes 17 to 24

Bushing

Cam

Centrifugal Weight

Pressure Plate

Wave Spring

Stop Plate

Retaining Ring

Retaining Ring

Oil Gear Pump, 42 Teeth

THRUST WASHER - Call your local BRP dealership

Thrust Washer

Clutch Hub

Spring Washer

Hex. Nut M24

PLATE, 2.5 MM - Call your local BRP dealership | See Item 49, Disc Kit

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Adjustment Plate Kit

Disc Spring | See Item 49, Disc Kit

Clutch Release Shaft Ass'y | Includes 37 to 42

O-Ring

Thrust Washer

Needle Bearing

Thrust Washer

Snap Ring

Pressure Plate Ass'y | Includes 43 to 44

Thrust Washer

Retaining Ring

Disc Spring | See Item 49, Disc Kit

Plate Inner

Torx Flange Screw M6 X 20

Disc Kit, Type 991 SE5
