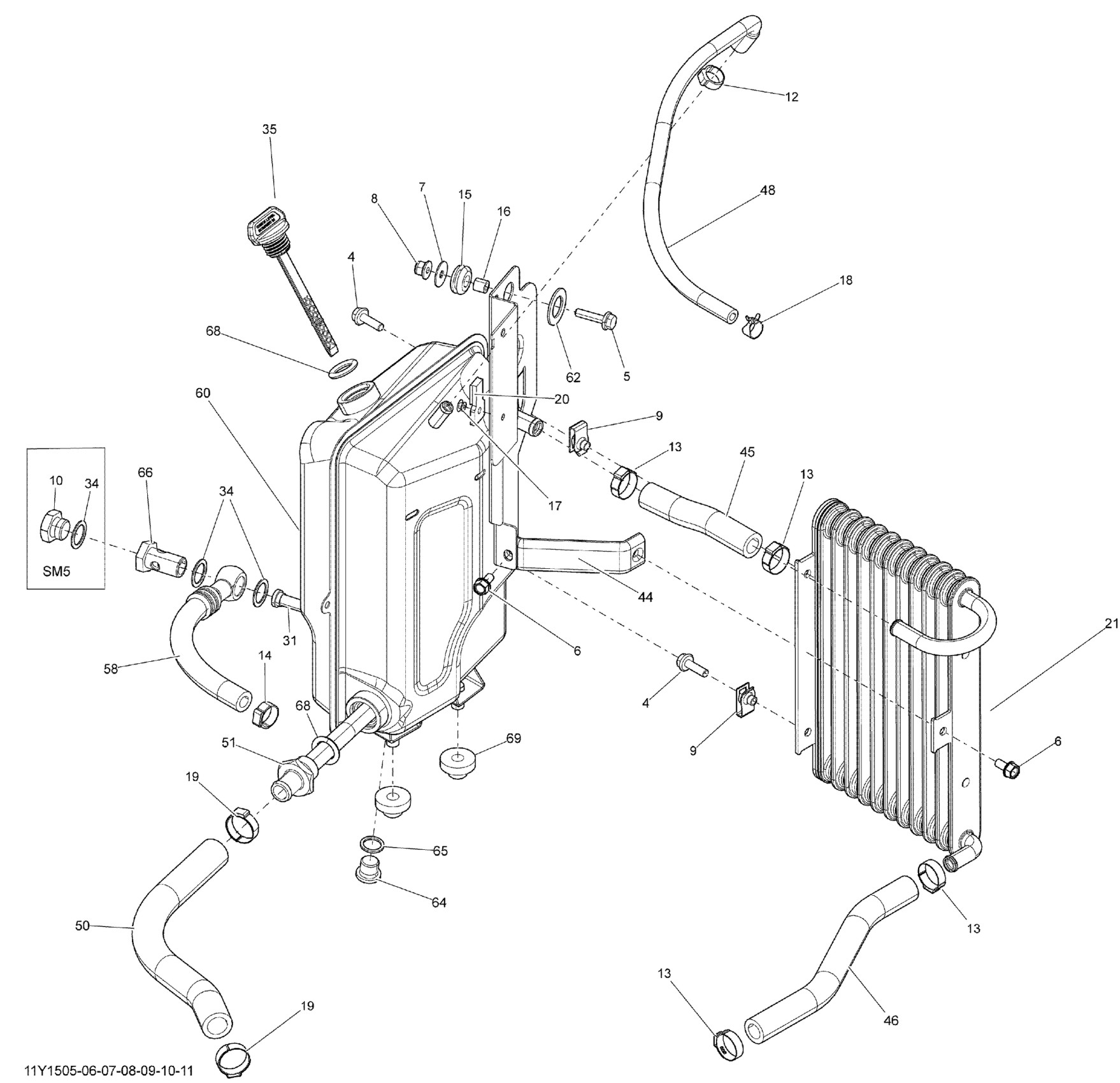

Can-Am Spyder ST Limited SE5, 2015 02- Oil System _11Y1507 Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Hex. Flange Screw M6 X 12

210261250

$1.90

7

Flat Washer

224060201

$1.26

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Panel Nut M6 X 1.0

250100198

$2.11

10

HEX. HEAD PLUG M16 X 1.5 - Call your local BRP dealership

250100114

$12.49

12

Oetiker Clamp

293650140

$2.69

13

Oetiker Clamp

293650186

$3.99

14

OETIKER CLAMP - Call your local BRP dealership

293650235

Unavailable

15

Grommet

709000582

$4.69

16

Bushing

293900105

$7.65

17

Pop Rivet 3/16"

390402400

$0.35

18

Spring Clamp

414415200

$0.88

19

Gear Clamp

509000552

$6.49

20

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

21

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

31

STRAINER - Call your local BRP dealership

519000144

Unavailable

34

Copper Washer

519000148

$4.23

35

Oil Cap

519000155

$15.82

44

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable

45

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

46

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

48

Formed Hose

519000208

$28.99

50

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

51

Strainer

519000219

$36.99

58

Hose

519000303

$51.99

60

OIL TANK - Call your local BRP dealership

519000304

Unavailable

62

Washer

519000295

$1.37

64

Fill Level Plug | 4X4

705500504

$10.01

65

Copper Washer | 4X4

705500506

$0.45

66

Banjo Bolt | SE5

705600527

$15.82

68

O-Ring

709000218

$6.66

69

Grommet

709200285

$9.69
