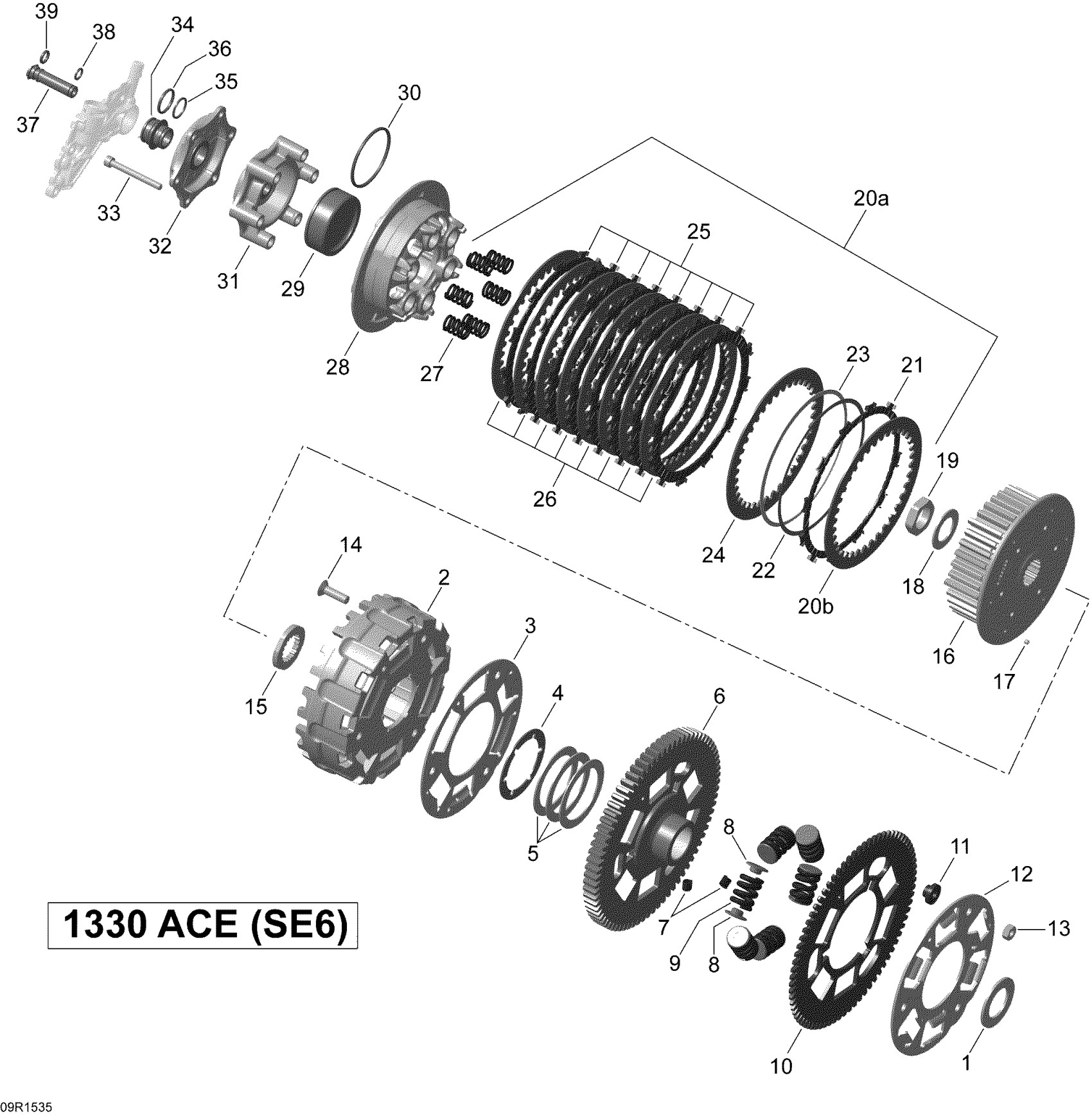

Can-Am Spyder RTS Special Series SE6, 2015 05- Clutch _09R1535 Diagram

Thrust Washer

420627260

$10.16

Clutch Drum Ass'y | Includes 2 to 14

420685831

$959.99

Support Plate

420459105

$61.49

Thrust Washer

420626870

$9.80

Disc Spring

420239397

$18.49

Clutch Gear

420435408

$249.99

Compression Spring

420638030

$18.99

Spring Retainer

420247017

$15.87

Compression Spring

420238132

$18.99

Anti-Backlash Gear Teeth

420435411

$159.99

Distance Sleeve

420647200

$17.69

Support Plate

420459100

$61.49

Hex. Nut M8

232081414

$0.72

Screw M8 X 28

420440795

$3.38

Thrust Washer

420627225

$12.70

Clutch Hub Ass'y | Includes 16 to 17

420459087

$179.99

Adjustment Screw M4 X 4

420640805

$1.37

Spring Washer

420245830

$10.16

Hex. Nut M24

420242012

$16.33

Disc Kit | Includes 20a to 27

420686063

$409.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Thrust Washer

420626970

$15.35

Disc Spring

420238980

$16.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Clutch Spring

420238890

$8.15

Pressure Plate

420459095

$77.49

Clutch Piston

420456082

$63.99

Sealing Ring

420201140

$34.99

CLUTCH CYLINDER - Call your local BRP dealership

420456075

Unavailable

OIL DUCT COVER - Call your local BRP dealership

420212085

Unavailable

Allen Screw M6 X 55

420240332

$5.35

OIL SUPPLY PISTON - Call your local BRP dealership

420456175

Unavailable

SEALING RING - Call your local BRP dealership

420201155

$24.99

O-Ring

420630962

$2.21

Piston Oil Supply

420456171

$38.99

Sealing Ring

420201150

$19.49

O-Ring

420931765

$0.98
