Description

Price

13

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

14

Socket Screw M8 X 45

205484560

$2.11

17

Hex. Screw M5 X 20

207152060

$1.47

27

Hex.Flange Screw M5 X 20

207652044

$1.90

30

Hex. Flange Screw M6 X 25

207662544

$0.64

34

Hex. Flange Screw M6 X 16

210261650

$1.67

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Hex. Flange Elastic Nut M6

233261494

$1.58

57

Flat Washer 6 mm

234062410

$0.77

58

Stainless Steel Flat Washer

234062670

$2.11

61

Panel Nut M5 X 0.8

250000958

$4.23

66

Torx-Truss Pt K40 X 16

250000759

$2.11

69

Torx Truss Screw M6 X 20

250000350

$5.29

70

Stainless, Torx Screw M6 X 30

250000842

$2.11

72

Torx Screw M6 X 12

250000454

$4.44

74

Torx Screw, K50X16

250000459

$4.29

76

Torx Truss Screw M6 X 20

250000488

$2.11

85

Panel Nut M8

250100111

$4.29

86

Panel Nut M6 X 1.0

250100198

$2.11

87

Pressure Nut

250100163

$0.98

91

Washer M6

250200029

$2.50

101

Tuflok Plastic Rivet

293150230

$1.47

116

Rubber Pad

293830143

$18.49

134

Edge Clip

517302785

$0.88

138

RH LOWER PANEL FOAM - Call your local BRP dealership

518324756

Unavailable

141

LH Lower Panel Foam

518327490

$28.99

148

Oval Washer

705000321

$5.61

151

Lower Belt Guard

705002092

$48.99

159

Neoprene Seal (1PAC=3M)

219704364

$27.49

184

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

185

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

206

Grommet

705003264

$4.09

219

LH Upper Side Panel Grille

705003385

$30.99

220

RH Upper Side Panel Grille

705003386

$30.99

235

Adhesive Spacer

705003696

$4.19

241

Angled Knob

705003746

$5.69

251

LH Water Deflector Ass'y

705003759

$45.99

252

RH Water Deflector Ass'y

705003760

$45.99

254

Knob

705003842

$5.82

257

Seal Tray 1000Mm Long

219704368

$13.99

279

LH Deflector Pannel

705004610

$27.99

280

RH Deflector Pannel

705004611

$20.99

284

LH Tank Cover Ass'y

705004631

$109.99

285

RH Tank Cover Ass'y

705004632

$114.99

290

LH Radiatior Moulding

705004789

$104.99

291

RH Radiatior Moulding

705004790

$104.99

294

RH Side Grille

705004803

$30.99

297

LH Lower Air Deflector

705004924

$43.99

298

RH Lower Air Deflector

705004925

$43.99

299

Grommet Ass'y

705005055

$13.49

313

LH Skid Plate

705005438

$28.49

314

RH Skid Plate

705005439

$28.49

345

White LH Upper Panel | Model-White

705006168

$299.99

345

YELLOW LH UPPER PANEL - Call your local BRP dealership | Model-Circuit Yellow Met

705006329

Unavailable

345

Bare, LH Upper Side Pan | Model-Steel Black Met

705006211

$124.99

346

Bare, RH Up Side Pan | Model-White

705006212

$124.99

346

YELLOW RH UPPER PANEL - Call your local BRP dealership | Model-Circuit Yellow Met

705006320

Unavailable

346

PANEL_BODY UP R B-266 - Call your local BRP dealership | Model-Steel Black Met

705008730

Unavailable

346

Pearl Red RH Upper Panel | Model-Intense Red Pearl

705008731

$274.99

347

White RH Upper Lateral Panel | Model-White

705006177

$359.99

347

PANEL_BODY RH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

705006340

Unavailable

347

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008734

Unavailable

347

Pearl Red RH Lateral Panel | Model-Intense Red Pearl

705008735

$274.99

348

White LH Lateral Panel | Model-White

705006178

$359.99

348

PANEL_BODY LH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

705006341

Unavailable

348

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008732

Unavailable

348

Pearl Red LH Lateral Panel | Model-Intense Red Pearl

705008733

$274.99

358

LH Lower Pannel

705006820

$78.99

358

RH Lower Pannel

705007736

$83.99

359

Néoprene Pad

705006824

$7.39

363

Rubber Washer

705007085

$1.57

370

LH Side Grille

705007307

$30.99

401

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008724

Unavailable

401

Bare, LH Side Panel | Model-Intense Red Pearl

705008991

$114.99

401

Vegas White Pearl, LH Side Panel | Model-White

705008999

$249.99

401

PANEL_BODY LH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

705009007

Unavailable

402

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

705008725

Unavailable

402

Pearl Red RH Side Panel | Model-Intense Red Pearl

705008727

$244.99

402

Bare, RH Side Panel | Model-White

705008992

$114.99

402

PANEL_BODY RH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

705009008

Unavailable

403

LH Support

705009063

$119.99

404

RH Support

705009064

$124.99

418

Side Foam LH

705009311

$20.99

419

Side Foam RH

705009312

$20.99

420

LH FOAM - Call your local BRP dealership

705009313

Unavailable

421

RH FOAM - Call your local BRP dealership

705009314

Unavailable

429

Belt Guard Moulding

705009446

$35.99

442

Rubber Stopper

708000759

$4.19

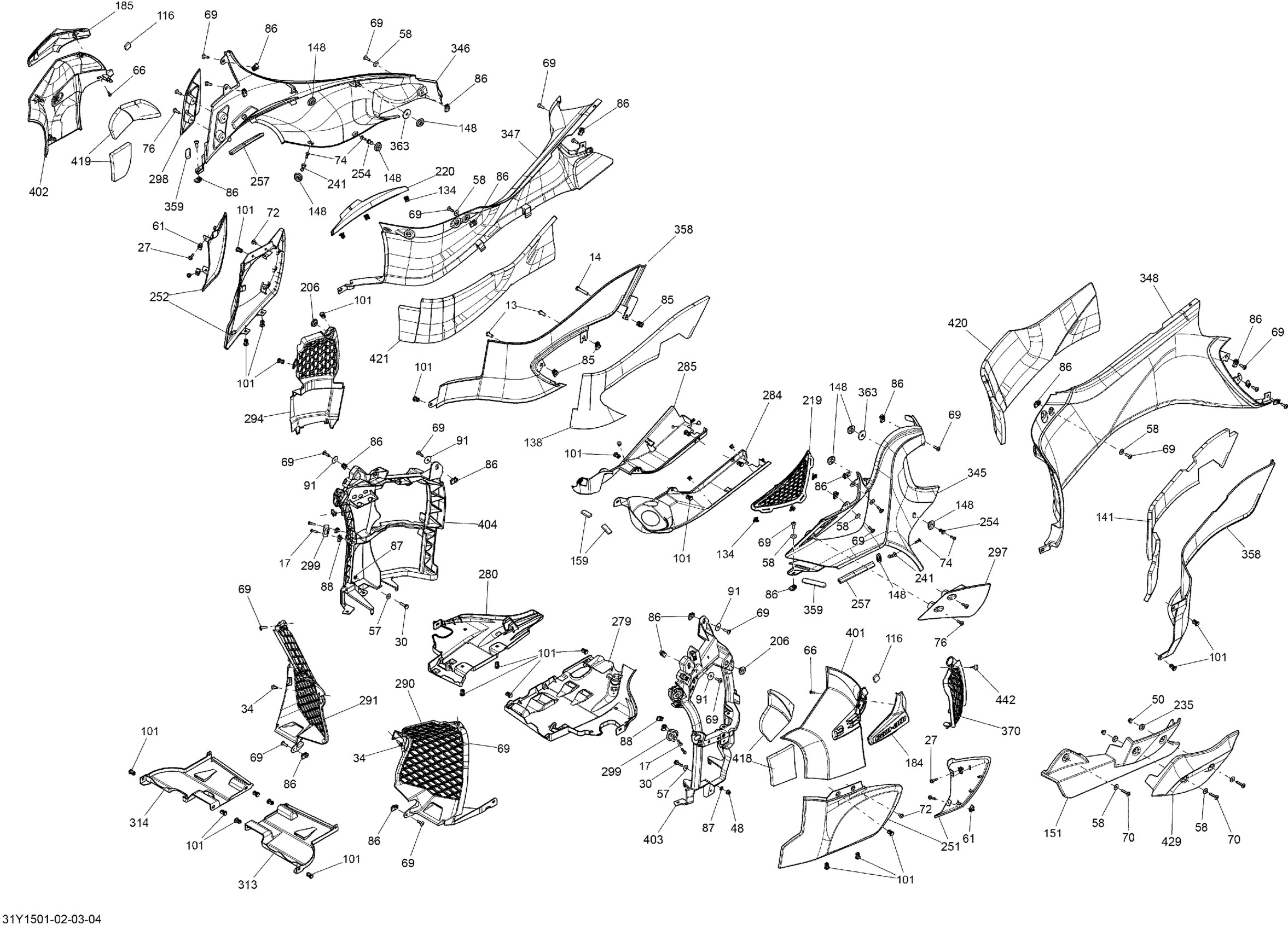

Can-Am Spyder RT Limited SE6, 2015 09- Body And Accessories _31Y1503 Diagram

Socket Head Screw M8 X 20 | DS 650 X

Socket Screw M8 X 45

Hex. Screw M5 X 20

Hex.Flange Screw M5 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M6

Flat Washer 6 mm

Stainless Steel Flat Washer

Panel Nut M5 X 0.8

Torx-Truss Pt K40 X 16

Torx Truss Screw M6 X 20

Stainless, Torx Screw M6 X 30

Torx Screw M6 X 12

Torx Screw, K50X16

Torx Truss Screw M6 X 20

Panel Nut M8

Panel Nut M6 X 1.0

Pressure Nut

Washer M6

Tuflok Plastic Rivet

Rubber Pad

Edge Clip

RH LOWER PANEL FOAM - Call your local BRP dealership

LH Lower Panel Foam

Oval Washer

Lower Belt Guard

Neoprene Seal (1PAC=3M)

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

Grommet

LH Upper Side Panel Grille

RH Upper Side Panel Grille

Adhesive Spacer

Angled Knob

LH Water Deflector Ass'y

RH Water Deflector Ass'y

Knob

Seal Tray 1000Mm Long

LH Deflector Pannel

RH Deflector Pannel

LH Tank Cover Ass'y

RH Tank Cover Ass'y

LH Radiatior Moulding

RH Radiatior Moulding

RH Side Grille

LH Lower Air Deflector

RH Lower Air Deflector

Grommet Ass'y

LH Skid Plate

RH Skid Plate

White LH Upper Panel | Model-White

YELLOW LH UPPER PANEL - Call your local BRP dealership | Model-Circuit Yellow Met

Bare, LH Upper Side Pan | Model-Steel Black Met

Bare, RH Up Side Pan | Model-White

YELLOW RH UPPER PANEL - Call your local BRP dealership | Model-Circuit Yellow Met

PANEL_BODY UP R B-266 - Call your local BRP dealership | Model-Steel Black Met

Pearl Red RH Upper Panel | Model-Intense Red Pearl

White RH Upper Lateral Panel | Model-White

PANEL_BODY RH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

Pearl Red RH Lateral Panel | Model-Intense Red Pearl

White LH Lateral Panel | Model-White

PANEL_BODY LH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

Pearl Red LH Lateral Panel | Model-Intense Red Pearl

LH Lower Pannel

RH Lower Pannel

Néoprene Pad

Rubber Washer

LH Side Grille

PANEL_BODY LH B-266 - Call your local BRP dealership | Model-Steel Black Met

Bare, LH Side Panel | Model-Intense Red Pearl

Vegas White Pearl, LH Side Panel | Model-White

PANEL_BODY LH B-349 - Call your local BRP dealership | Model-Circuit Yellow Met

PANEL_BODY RH B-266 - Call your local BRP dealership | Model-Steel Black Met

Pearl Red RH Side Panel | Model-Intense Red Pearl

Bare, RH Side Panel | Model-White
