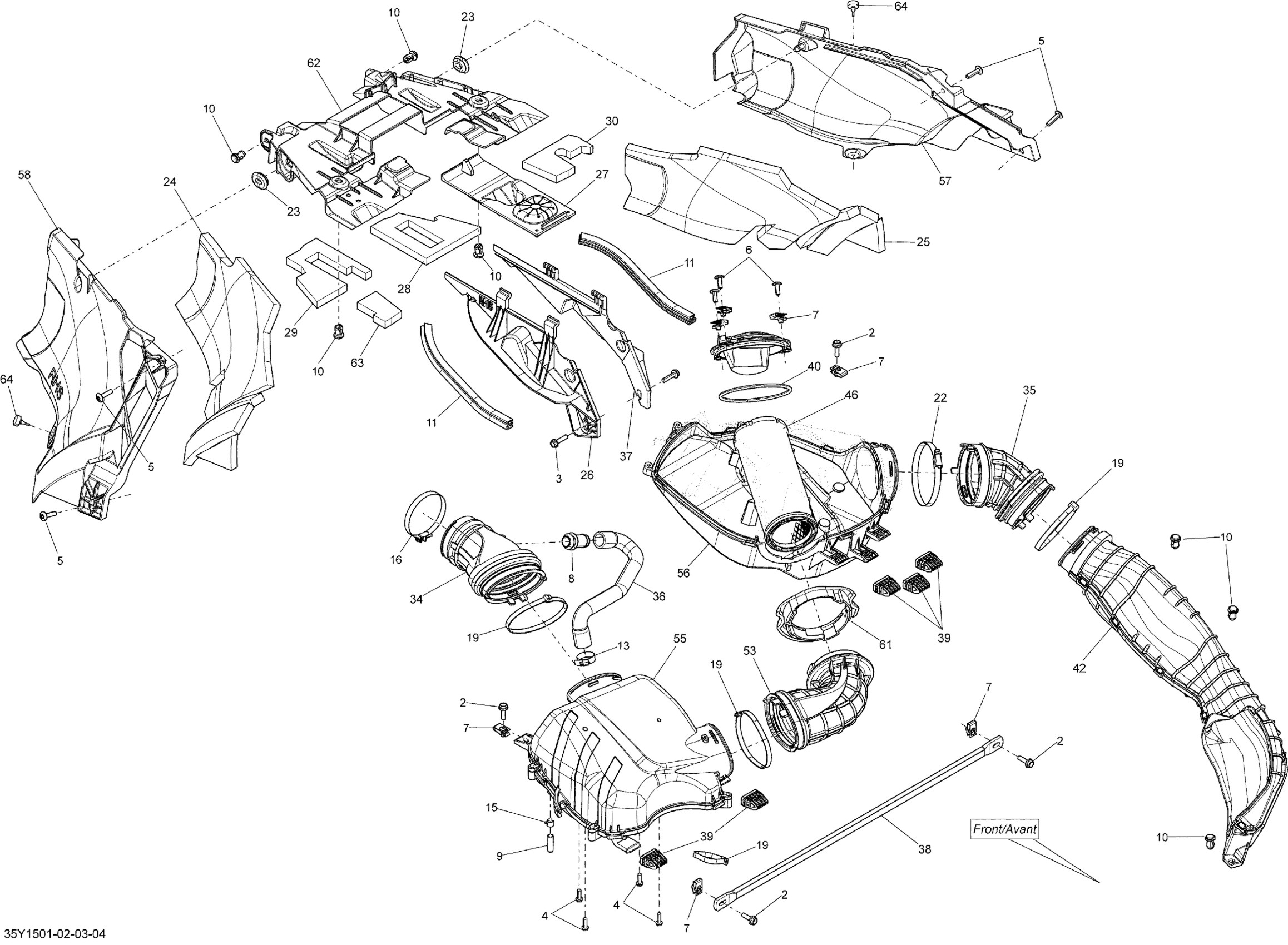

Can-Am Spyder RT Limited SE6, 2015 02- Air Intake _35Y1503 Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

4

Torx Screw M6 x 25

250000284

$2.11

6

Torx Truss Screw M6 X 16

250000348

$2.11

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Breather Valve

273000234

$14.49

9

Cap Plug

293000105

$4.39

10

Tuflok Plastic Rivet

293150230

$1.47

11

TRIM 3000MM LONG - Call your local BRP dealership

219704351

Unavailable

13

Tridon Gear Clamp

293650173

$3.09

15

Spring Clamp

414554800

$0.88

16

Gemi Clamp

508000346

$10.33

19

Tie Rap

509000165

$2.11

22

Norma Clamp

514052924

$14.22

23

Oval Washer

705000321

$5.61

24

RH ACOUSTIC SHELL FOAM - Call your local BRP dealership

707800338

Unavailable

25

LH ACOUSTIC SHELL FOAM - Call your local BRP dealership

707800339

Unavailable

26

RH Center Acoustic Shell

707800340

$25.99

27

Center Bellows

707800343

$31.99

28

LH REAR FOAM - Call your local BRP dealership

707800353

Unavailable

29

RH REAR FOAM - Call your local BRP dealership

707800354

$15.49

30

LH Front Foam

707800356

$18.49

34

Air Intake Adaptor

707800388

$33.99

35

Adapter

707800389

$28.99

36

Formed Hose

707800824

$18.99

37

LH Acoustic Shell

707800413

$25.99

38

Link Rod | Includes 10k to 10k1

707800432

$24.49

39

Rubber Stopper

707800452

$7.69

40

O-ring

707800455

$7.94

42

Air Inlet Valve

707800477

$18.99

46

Air Filter

707800483

$47.49

52

Cap

707800484

$19.49

53

Intake Adaptor

707800485

$31.99

55

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$54.99

56

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$54.99

57

LH ACOUSTIC SHELL - Call your local BRP dealership

707800696

Unavailable

58

ACOUS SHELL RH - Call your local BRP dealership

707800697

$35.99

61

Ring

707800525

$16.99

62

Acoustic Support

707800562

$44.99

63

RH FOAM - Call your local BRP dealership

707800563

Unavailable

64

Rubber Stopper

708000759

$4.19
