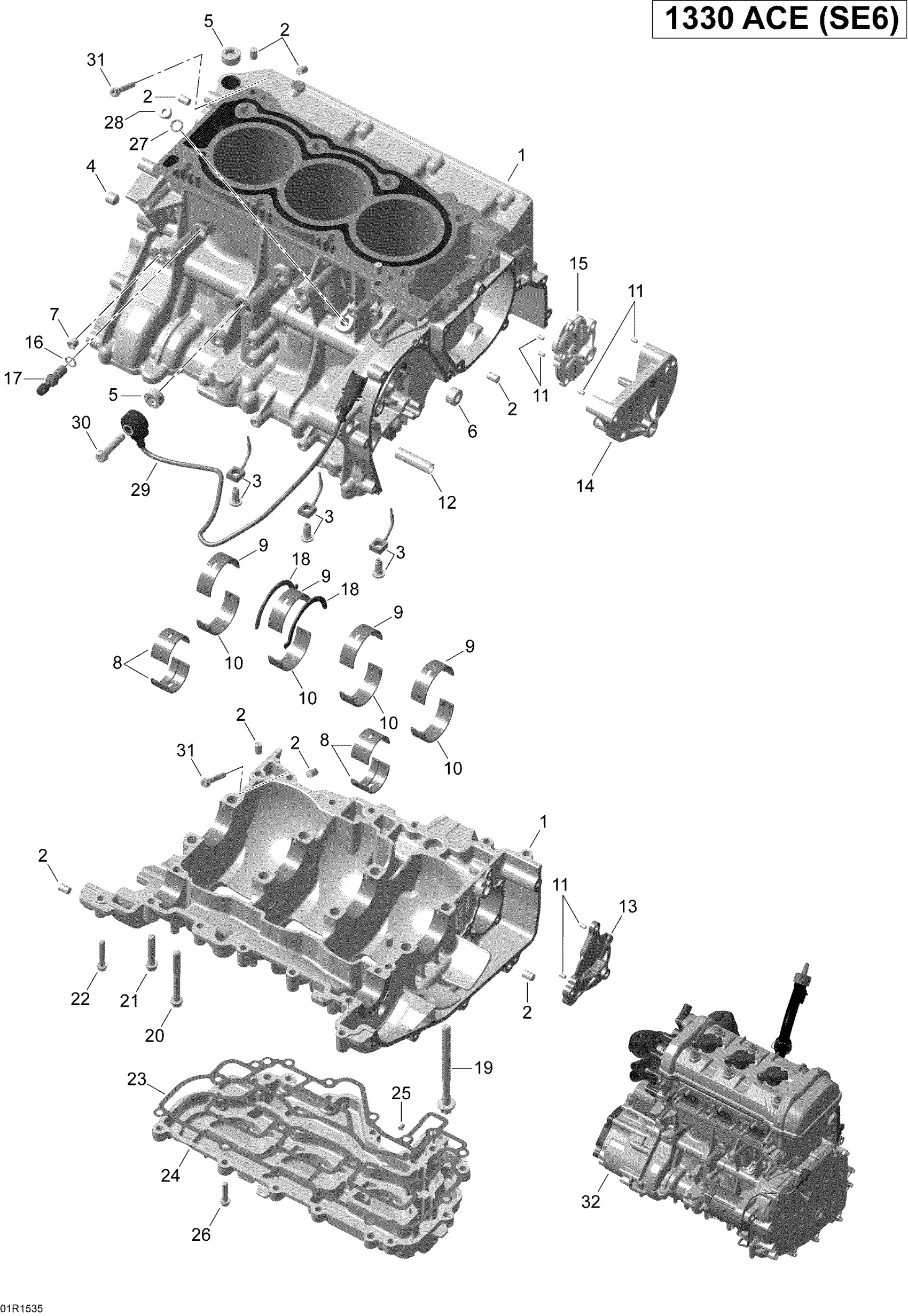

Can-Am Spyder RT Limited SE6, 2015 01- Crankcase _01R1535 Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 17

420686422

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spraying Jet

420656972

$25.49

4

Plug Screw M12 X 1.5

420840657

$8.57

5

Plug Screw M20 X 1.5

420641317

$14.22

6

Plug Screw M18 X 1.5

420441050

$13.22

7

Plug Screw M10 X 1

420641323

$14.28

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

Needle Pin

420929075

$2.11

12

SLEEVE - Call your local BRP dealership

420647280

Unavailable

13

Oil Pump Cover

420210260

$33.99

14

BEARING BRACKET - Call your local BRP dealership

420210865

Unavailable

15

Oil Pump Cover

420210220

$33.99

16

Oil Seal

420230150

$2.85

17

Bleeder Screw M10 X 1

420441630

$15.35

18

Half-Ring

420933475

$11.63

19

Torx Flange Screw M9 X 113

420940945

$13.70

20

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420441082

Unavailable

21

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

22

Torx Flange Screw M6 X 35

420440274

$1.01

23

Gasket

420250610

$15.89

24

Oil Sump

420611740

$163.99

25

Plug Screw M8 x 1

420941614

$6.98

26

Torx Flange Screw M6 X 25

420440234

$3.06

27

Oil Seal

420230150

$2.85

28

Plug Screw M10 X 1

420641733

$12.72

29

Noise Sensor

420664031

$63.99

30

Torx Flange Screw M8 X 35

420641188

$7.41

31

Torx Flange Screw M6 X 35

420440274

$1.01

32

Engine, 1330 ACE (SE6)

351403211

Unavailable
