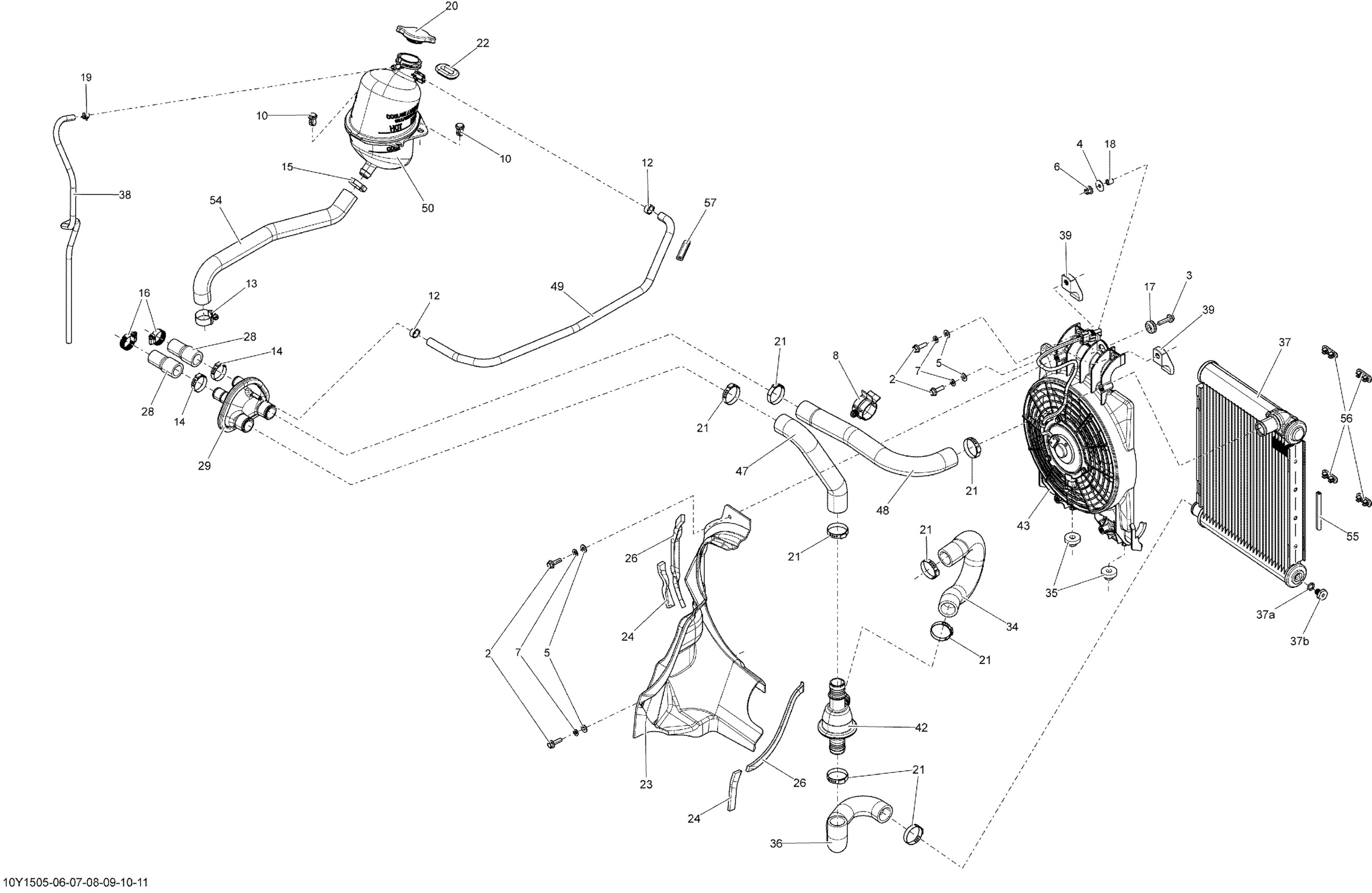

Can-Am Spyder RSS SE5, 2015 01- Cooling System _10Y1510 Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Flat Washer

224060201

$1.26

5

Flat Washer

224061121

$0.53

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Lock Washer Helical M6

234161601

$1.15

8

Retainer

275500590

$9.69

10

Tuflok Plastic Rivet

293150230

$1.47

12

Oetiker Gear Clamp

293650025

$3.09

13

Tridon Gear Clamp

293650051

$4.19

14

Crimp Clamp

293650099

$4.29

15

Oetiker Gear Clamp

293650165

$5.39

16

Tridon Gear Clamp

293650173

$3.09

17

Grommet

709000582

$4.69

18

Bushing

293900105

$7.65

19

Spring Clamp

414554800

$0.88

20

Pressure Cap

509000187

$29.49

21

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

22

Oblong Grommet

705003668

$5.79

23

RH INNER HEAT SHIELD - Call your local BRP dealership

705006688

Unavailable

24

Neoprene Seal (1PAC=3M)

219704364

$27.49

26

Neoprene Seal (1PAC=3M)

219704364

$27.49

28

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

29

Connector

709200151

$19.49

34

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

35

Grommet

709200285

$9.69

36

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

37

Radiator | Includes 37 to 37b

709200337

$433.99

37a

O-RING - Call your local BRP dealership

709200417

$6.29

37b

Drain Plug

709200418

$13.75

38

Polyurethane Hose 10000Mm Long

219704410

$56.99

39

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

42

Thermostat Housing

709200384

$88.99

43

Fan Assembly

709200554

$154.99

47

HOSE_THERMOSTAT UP FORMED - Call your local BRP dealership

709200419

Unavailable

48

HOSE_RADIATOR UP FORMED - Call your local BRP dealership

709200420

Unavailable

49

FORMED HOSE - Call your local BRP dealership

709200421

Unavailable

50

Coolant Tank

709200749

$99.99

54

HOSE_COOLANT TANK LWR FORMED - Call your local BRP dealership

709200489

Unavailable

55

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

56

Rubber Stopper

709200502

$5.71

57

Trim 1000Mm Long

219704354

$15.99
