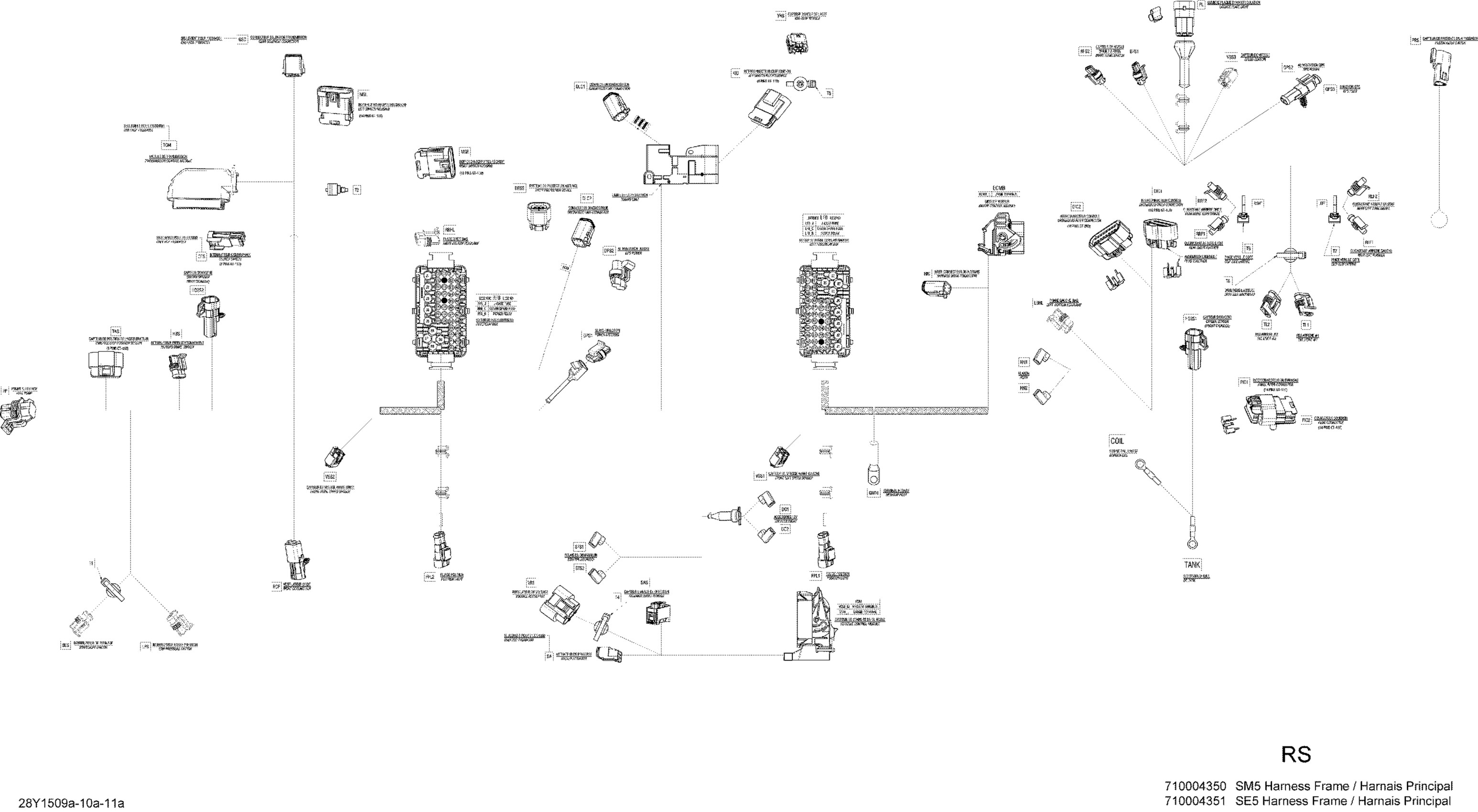

Can-Am Spyder RS SE5, 2015 10- Electrical Harness Frame SE5_28Y1509a Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership

710004351

Unavailable

188

Tubing 12 mm

409902000

Unavailable

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

370

Terminal

710001873

$2.09

426

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

1035

Adhesive Tape

710001767

Unavailable

1150

WIRE HOLDER - Call your local BRP dealership

710002025

Unavailable

1166

WIRE HOLDER COVER - Call your local BRP dealership

710002189

Unavailable

1343

Female Housing, 3 Circuits

515177247

Unavailable

BFS1

Female Housing, 2 Circuits

515177192

$9.12

BFS1

Female Terminal

710001164

$8.89

BFS1

Seal

710001233

$3.19

BFS2

Female Housing, 2 Circuits

515177192

$9.12

BFS2

Female Terminal

710001164

$8.89

BFS2

Seal

710001233

$3.19

BLS

Female Housing, 2 Circuits

409209500

$15.27

BLS

Wire Seal

515176621

$7.49

BLS

Female Terminal

710001340

$5.89

COIL

Open Barrel

278000992

$2.21

COIL

Heat Shrink Tubing

710002588

Unavailable

D2

Diode

409012700

$11.12

D2

Heat Shrink

710002589

Unavailable

DC1

Female Terminal

710002398

$2.19

DC1

Female Terminal

710002399

$2.40

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DC2

Female Terminal

710002398

$2.19

DC2

Female Terminal

710002399

$2.40

DC2

Tie-Rap, 100mm

710002713

Unavailable

DESS

Housing Connector

515177287

$7.62

DESS

Lock

710001222

$2.09

DESS

Terminal

710001229

$3.19

DESS

Seal

710001233

$3.19

DIC1

Lock

710001222

$2.09

DIC1

Cap

710001225

$9.19

DIC1

Housing

710001226

$13.49

DIC1

Terminal

710001229

$3.19

DIC1

Seal

710001233

$3.19

DIC2

Wire Seal

278002186

$5.50

DIC2

Female Terminal

278002187

$6.39

DIC2

Lock

710001222

$2.09

DIC2

Terminal

710001873

$2.09

DIC2

Seal | PACKARD 12191222

710001858

$2.24

DIC2

HOUSING - Call your local BRP dealership

710001874

$13.49

DIC2

Plug

710002075

$3.09

DLC1

Female Terminal

278000632

$2.09

DLC1

Female Terminal

278001665

$4.55

DLC1

Housing, 6 Circuits

278002896

$14.99

DLC1

Sealing Cap

293000052

$3.19

DLC1

Male Wedge, 6 Circuits

515175678

$5.39

DLC2

Female Terminal

278001665

$4.55

DLC2

Housing, 6 Circuits

278002896

$14.99

DLC2

Sealing Cap

293000052

$3.19

DLC2

Male Wedge, 6 Circuits

515175678

$5.39

DPS1

Cap

710001114

$18.49

DPS1

Housing

710001161

$11.12

DPS1

Lock

710001162

$3.19

DPS1

Wire Seal

710001163

$7.69

DPS1

Female Terminal

710001164

$8.89

DPS1

Cap

710001225

$9.19

DPS2

Female Terminal

710001160

$6.35

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Female Terminal

710001589

$2.21

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Plug

710001592

$2.21

ECMB

Tie-Rap, 100mm

710002713

Unavailable

ECMB_L

Female Terminal

710001590

$2.09

ECMB_L

Female Terminal

710001727

$3.19

FP

Female Terminal

278001481

$3.49

FP

Seal

278001482

$3.19

FP

Seal

710000643

$4.39

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FPL1

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL1

Male Terminal

515176164

$7.16

FPL1

Wire Seal

515176621

$7.49

FPL1

Clip

710000992

$4.29

FPL1

Grommet

710002586

Unavailable

FPL1

Heat Shrink Tubing

710002588

Unavailable

FPL1

Tie-Rap, 100mm

710002713

Unavailable

FPL2

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL2

Male Terminal

515176164

$7.16

FPL2

Wire Seal

515176621

$7.49

FPL2

Clip

710000992

$4.29

FPL2

Grommet

710002586

Unavailable

FPL2

Heat Shrink Tubing

710002588

Unavailable

FPL2

Tie-Rap, 100mm

710002713

Unavailable

GND1

Adhesive Tape

710001767

Unavailable

GPS2

Male Terminal Housing, 2 Circuits

409209400

$16.86

GPS2

Male Terminal

515176164

$7.16

GPS2

Wire Seal

515176621

$7.49

GPS2

Connector Holder

710002033

$3.39

GPS3

Plug

409013700

$4.55

GPS3

Female Housing, 2 Circuits

409209500

$15.27

GSC

Female Terminal

278001665

$4.55

GSC

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

GSC

CONNECTOR - Call your local BRP dealership

710001936

Unavailable

HBS

Plug

409013700

$4.55

HBS

Female Housing, 3 Circuits

409209600

$35.99

HBS

Wire Seal

515176621

$7.49

HBS

Female Terminal

710001340

$5.89

HIC

Female Terminal

278000632

$2.09

HIC

Sealing Cap

293000052

$3.19

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HN1

Female Terminal

710002398

$2.19

HN1

Female Terminal

710002399

$2.40

HN2

Female Terminal

710002398

$2.19

HN2

Female Terminal

710002399

$2.40

HO2S1

Seal

278001482

$3.19

HO2S1

Connector Holder

710002033

$3.39

HO2S1

Housing

710002466

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S2

Seal

278001482

$3.19

HO2S2

Connector Holder

710002033

$3.39

HO2S2

Housing

710002466

$3.19

HO2S2

Gold Terminal

710002597

$3.19

KIC

Cap

710001225

$9.19

KIC

Housing

710001231

$13.99

KIC

Seal Wire

710001332

$3.28

KIC

TERMINAL - Call your local BRP dealership

710001863

Unavailable

LBHL

Wire Seal

278001013

$3.28

LBHL

Female Terminal

278001014

$3.28

LBHL

Female Housing, 3 Circuits

409209600

$35.99

LFB

Wire Seal

278000218

$4.39

LFB

Wire Seal

278001065

$7.69

LFB

Female Terminal

278002578

$1.04

LFB

Seal Plug

278002880

$7.86

LFB

Relay, 30 AMP

515176774

$21.99

LFB

Little Fuse, 5 Amperes

710000742

$8.79

LFB

Little Fuse, 10 Amperes

710000744

$8.79

LFB

Little Fuse, 15 Ampere

710000745

$8.49

LFB

Female Terminal

710000918

$7.69

LFB

Relay

715900824

$21.99

LFB

PLUG - Call your local BRP dealership

710002633

Unavailable

LFB

Tie-Rap

710002714

$2.99

LFB

Fusebox Ass'y

710005623

$49.49

LFB_C

Little Fuse, 25 Ampere

278002389

$4.55

LFB_C

Little Fuse, 5 Amperes

710000742

$8.79

LFB_C

Little Fuse, 10 Amperes

710000744

$8.79

LFB_C

Little Fuse, 15 Ampere

710000745

$8.49

LFB_C

Little Fuse, 20 Amperes

710000746

$8.49

LFB_C

Cover

710007491

$17.99

LFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004273

Unavailable

LFB_J

Fuse, 25 AMP

710001046

$3.91

LFB_J

Fuse, 40 AMP

710001047

$11.80

LFB_J

Fuse 30 amp.

710001200

$7.20

LFB_J

Terminal

710001630

$2.09

LFB_J

Terminal Joint

710001905

$2.09

LFB_J

Terminal

710001906

$2.54

LFB_J

Seal Joint

710003133

$0.90

LFB_J

Seal Joint

710003134

$1.39

LFB_J

M Terminal

710003135

$2.79

LFB_R

Terminal

710002438

$1.39

LFB_R

F Terminal

710003125

$3.39

LFB_R

Seal Joint

710003132

$0.90

LFB_R

Seal Joint

710003133

$0.90

LFB_R

50 Amps Relay

710003143

$13.76

LPS

Plug

409013700

$4.55

LPS

Female Housing, 3 Circuits

409209600

$35.99

LPS

Wire Seal

515176621

$7.49

LPS

Female Terminal

710001340

$5.89

MSL

Terminal

710001223

$3.19

MSL

Terminal

710001224

$3.19

MSL

Cap

710001225

$9.19

MSL

Seal

710001233

$3.19

MSL

Seal Wire

710001332

$3.28

MSL

Housing

710001944

$15.35

MSR

Terminal

710001224

$3.19

MSR

Cap

710001225

$9.19

MSR

Seal

710001233

$3.19

MSR

Housing, Packard

710001929

$11.12

PIC1

Lock

710001222

$2.09

PIC1

Cap

710001225

$9.19

PIC1

Terminal

710001228

$3.28

PIC1

Terminal

710001229

$3.19

PIC1

Seal

710001233

$3.19

PIC1

Seal Wire

710001332

$3.28

PIC1

Housing

710001943

$17.59

PIC2

Cap

710001225

$9.19

PIC2

Housing

710001944

$15.35

PIC2

Holder | XMR

710002006

$3.19

PL

Clip Bracket Connector (edge)

409210100

$2.09

PL

Male Terminal

515176164

$7.16

PL

Wire Seal

515176621

$7.49

PL

Housing

710000568

$11.12

PL

Grommet

710002586

Unavailable

PL

Tie-Rap, 100mm

710002713

Unavailable

PL

PROTECTOR CAP - Call your local BRP dealership

710003324

Unavailable

PRS

Male Housing

278002378

$13.99

PRS

Male Lock, 3 Circuits

409207600

$3.19

PRS

Male Terminal

710001348

$12.99

RBHL

Wire Seal

278001013

$3.28

RBHL

Female Terminal

278001014

$3.28

RBHL

Female Housing, 3 Circuits

409209600

$35.99

RCF

Female Housing, 2 Circuits

278000217

$9.59

RCF

Male Terminal

409004300

$5.61

RCF

Wire Seal

710000504

$4.39

RCF

Connector Holder

710002033

$3.39

RFB

Wire Seal

278000218

$4.39

RFB

Wire Seal

278001065

$7.69

RFB

Little Fuse, 25 Ampere

278002389

$4.55

RFB

Female Terminal

278002578

$1.04

RFB

Seal Plug

278002880

$7.86

RFB

Relay, 30 AMP

515176774

$21.99

RFB

Little Fuse, 10 Amperes

710000744

$8.79

RFB

Little Fuse, 15 Ampere

710000745

$8.49

RFB

Female Terminal

710000890

$4.55

RFB

Female Terminal

710000918

$7.69

RFB

Relay

715900824

$21.99

RFB

PLUG - Call your local BRP dealership

710002633

Unavailable

RFB

Tie-Rap

710002714

$2.99

RFB

Fusebox Ass'y

710005623

$49.49

RFB_C

Little Fuse, 25 Ampere

278002389

$4.55

RFB_C

Little Fuse, 5 Amperes

710000742

$8.79

RFB_C

Little Fuse, 10 Amperes

710000744

$8.79

RFB_C

Little Fuse, 15 Ampere

710000745

$8.49

RFB_C

Little Fuse, 20 Amperes

710000746

$8.49

RFB_C

Cover

710007491

$17.99

RFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004274

Unavailable

RFB_J

Fuse, 40 AMP

710001047

$11.80

RFB_J

Fuse, 20 AMP

710001078

$1.90

RFB_J

Fuse 30 amp.

710001200

$7.20

RFB_J

Terminal

710001630

$2.09

RFB_J

Terminal Joint

710001905

$2.09

RFB_J

Terminal

710001906

$2.54

RFB_J

Fuse, 60 AMP

710002054

$22.49

RFB_J

Seal Joint

710003133

$0.90

RFB_J

Seal Joint

710003134

$1.39

RFB_J

M Terminal

710003135

$2.79

RFB_R

Terminal

710002438

$1.39

RFB_R

F Terminal

710003125

$3.39

RFB_R

Seal Joint

710003132

$0.90

RFB_R

Seal Joint

710003133

$0.90

RFB_R

50 Amps Relay

710003143

$13.76

RLF1

Male Housing, 1 Circuit

278001012

$16.86

RLF1

Wire Seal

515176621

$7.49

RLF1

Female Terminal

710001340

$5.89

RLF2

Male Housing, 1 Circuit

278001012

$16.86

RLF2

Wire Seal

515176621

$7.49

RLF2

Female Terminal

710001340

$5.89

RRF1

Male Housing, 1 Circuit

278001012

$16.86

RRF1

Wire Seal

515176621

$7.49

RRF1

Female Terminal

710001340

$5.89

RRF2

Male Housing, 1 Circuit

278001012

$16.86

RRF2

Wire Seal

515176621

$7.49

RRF2

Female Terminal

710001340

$5.89

SAS

Wire Seal

710001118

$1.16

SAS

Plug

710001938

$2.46

SAS

Housing

710003731

$8.59

SAS

Female Terminal

710003862

$2.43

STS1

Female Terminal

710002398

$2.19

STS1

Female Terminal

710002399

$2.40

STS2

Female Terminal

710002398

$2.19

STS2

Female Terminal

710002399

$2.40

T1

Clipping Tie-Rap

710003840

$2.29

T10

Clipping Tie-Rap

710003840

$2.29

T2

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T3

Clipping Tie-Rap

710003840

$2.29

T4

Clipping Tie-Rap

710003840

$2.29

T5

Clipping Tie-Rap

710003840

$2.29

T6

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T7

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T8

Clipping Tie-Rap

710003840

$2.29

T9

Clipping Tie-Rap

710003840

$2.29

TANK

Open Barrel

278000992

$2.21

TANK

Heat Shrink

710002589

Unavailable

TAS

Lock

710001222

$2.09

TAS

Terminal

710001229

$3.19

TAS

Housing

710001232

$14.29

TAS

Seal

710001233

$3.19

TCM

Female Terminal

515175806

$0.99

TCM

Plug

515175812

$2.19

TCM

Female Housing

515176221

$15.99

TCM

Wire Seal

515176222

$16.86

TCM

Female Terminal Housing, 36 Circuits

515176223

$14.99

TCM

Terminal Support

515176224

$15.99

TCM

Female Terminal

710001131

$8.89

TCM

Tie-Rap

710002714

$2.99

TL1

Female Housing, 3 Circuits

409209600

$35.99

TL1

Wire Seal

515176621

$7.49

TL1

Female Terminal

710001340

$5.89

TL2

Female Housing, 3 Circuits

409209600

$35.99

TL2

Wire Seal

515176621

$7.49

TL2

Female Terminal

710001340

$5.89

VCM

Seal Wire

710001153

$2.21

VCM

Plug

710001258

$3.29

VCM

Module Protector VCM

710002381

$20.99

VCM

Tie-Rap

710002714

$2.99

VCM

Housing

710002768

$17.59

VCM

RH Connector Cover

710002772

$4.55

VCM

Terminal

710002773

$2.09

VCM_L

Wire Seal

710001159

$6.35

VCM_L

Terminal

710002775

$0.74

VCM_M

Wire Seal

278000999

$3.19

VCM_M

Female Terminal

710000837

$5.39

VR1

Female Housing, 3 Circuits

710000879

$25.99

VR1

Cap

710000882

$11.49

VR1

Seal

710001932

$3.27

VR1

Terminal

710001934

$5.50

VSS1

Wire Seal

710001118

$1.16

VSS1

Housing

710003729

$22.49

VSS1

Female Terminal

710003862

$2.43

VSS2

Wire Seal

710001118

$1.16

VSS2

Housing

710003729

$22.49

VSS2

Female Terminal

710003862

$2.43

VSS3

Wire Seal

710001118

$1.16

VSS3

Housing

710003729

$22.49

VSS3

Female Terminal

710003862

$2.43

YRS

Wire Seal

710001118

$1.16

YRS

Housing

710003730

$14.83

YRS

Female Terminal

710003862

$2.43
