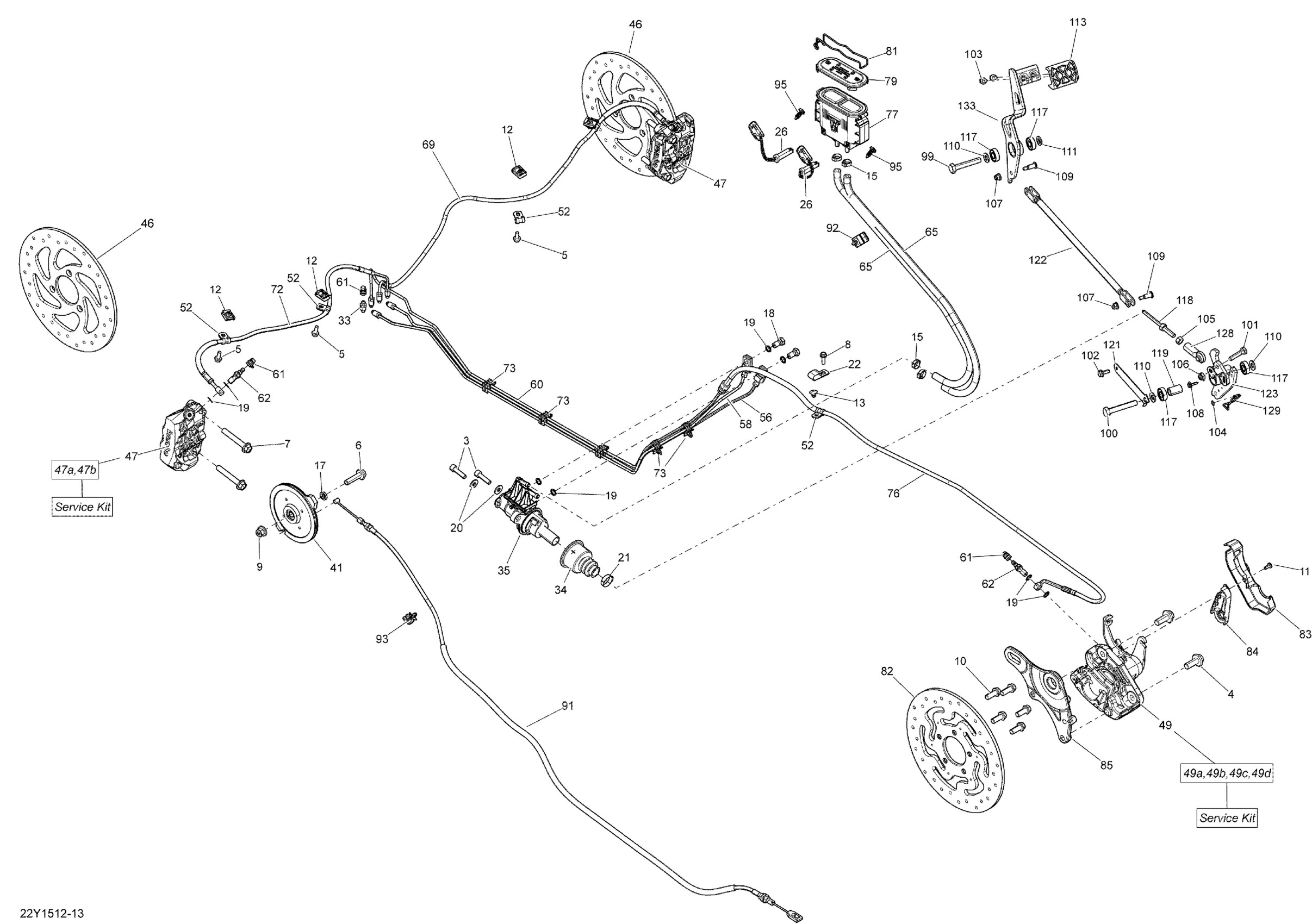

Can-Am Spyder F3 SM6, 2015 06- Hydraulic Brake _22Y1512 Diagram

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

Hex Flange Screw M10 X 65

207506556

$6.77

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Hex. Flange Screw M10 X 25

250001054

$14.21

Torx Screw 24 X 0.5

250000821

$1.90

Panel Nut M6 X 1.0

250100208

$1.46

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hexagonal Head Screw

210262050

$2.11

Crimp Clamp, 15.3-706R

293650047

$3.29

Bushing

293900087

$7.90

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

Washer

506151245

$0.93

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

Open Clamp

515175507

$1.89

Oil Level Sensor

705601073

$54.99

Bleeder Screw

705600502

$11.11

Bellow

705600716

$12.10

Tandem Cylinder Master

705600722

$369.99

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

Front Brake Disk

705601631

$153.99

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

RH Front Caliper | Includes 20 to 20b

705600988

$381.49

Brake Pad Kit

219800237

$79.49

Spring/Pin/Clip Kit

219800238

$26.99

Rear Caliper | Includes 90 to 90d

705600989

$497.99

Brake Pad Kit

219800239

$79.49

Spring/Pin/Clip Kit

219800240

$35.99

Rear Cable Support Kit

219800241

$41.49

Rear Dust Cover

219800242

$32.99

Clamp

293650256

$5.49

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

Rear Brake Rigid Tube

705601159

$31.99

Bleeder Bolt Cap

705601190

$4.44

Banjo Bolt/ Bleeder

705601201

$19.99

Formed Hose

705601236

$17.49

RH Front Hose | RS

705601254

$61.49

-LH Front Hose

705601471

$61.49

Anchorage Tube

705601987

$5.18

Brake Line

705601501

$74.99

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

Diaphragm Cover Ass'y

219800350

$17.59

Spindle Lock

705601294

$15.81

Rear Brake Disk

705601632

$244.99

Caliper Trim Cap

705601400

$10.43

Caliper Trim Cap

705601406

$10.43

REAR BRAKE CALIPER SUPPORT - Call your local BRP dealership

705601450

Unavailable

Parking Brake Cable

707001375

$66.99

Hose Support

709000571

$4.65

Harness Support

709000633

$7.19

Connector Holder

710002033

$3.39

Hex. Cap Screw M10 X 60

207006056

$7.51

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

Hexagonal Head Cap Screw M8 X 35

207283544

$2.85

Torx Screw M6 X 16

250000223

$2.11

Hex. Flange Screw M6 X 12

210261250

$1.90

Push Nut

250100178

$0.63

Hex. Nut M8

232081414

$0.72

Hex. Elastic Stop Nut M8

232581414

$0.56

Hex. Flange Elastic Nut M6

233261466

$2.00

Screw M4 X 16

250000725

$3.49

Flange Screw M6 X 26

250000714

$3.91

Washer

503183800

$3.28

Washer

503192496

$0.77

Rubber Pad

705004933

$20.99

Bearing

705600458

$19.99

Piston Rod

705600468

$23.49

Bushing

705600541

$15.36

Locking Tab | Includes 940 to 940b

705601229

$25.99

Brake Linkage Kit (313.7 mm) | Includes 1000 to 1000a2a

219400561

$38.49

Brake Linkage Kit (359.3 mm) | Includes 1000 to 1000a2a

219400563

$38.49

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$20.99

Brake Linkage Kit (458.3 mm) | Includes 1000 to 1000a2a

219400566

$42.49

Brake Linkage Kit (505.1 mm) | Includes 1000 to 1000a2a

219400571

$42.49

Master Cylinder Rocker | Includes 900 to 900d

705601308

$49.99

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

Quick-Attach Bracket

705601350

$13.16

PEDALE FREIN *PEDAL-BRAKE - Call your local BRP dealership

705601416

Unavailable
