Description

Price

1

Flat Washer M6, Stainless

234062600

$0.77

2

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

3

Torx Truss Screw M6 X 16

250000348

$2.11

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Breather Valve

273000234

$14.49

6

Cap Plug

293000105

$4.39

7

Tridon Gear Clamp

293650173

$3.09

8

Spring Clamp

414554800

$0.88

9

Gemi Clamp

508000150

$12.72

11

Gemi Clamp

508000346

$10.33

14

Tie Rap

509000165

$2.11

15

Air Intake Adaptor

707800388

$33.99

16

Formed Hose

707800824

$18.99

17

Air Filter

707800483

$47.49

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Intake Adaptor

707800590

$33.99

26

Not Available As Spare Part - Friction Washer

Unavailable

31

Cover

707801131

$19.99

32

Air Intake Bracket | Includes 50 to 50b

707800602

$16.99

33

Air Intake Ass'y | Include: 3 to 6, 8, 9, 14, 15, 17 to 31

787800584

Unavailable

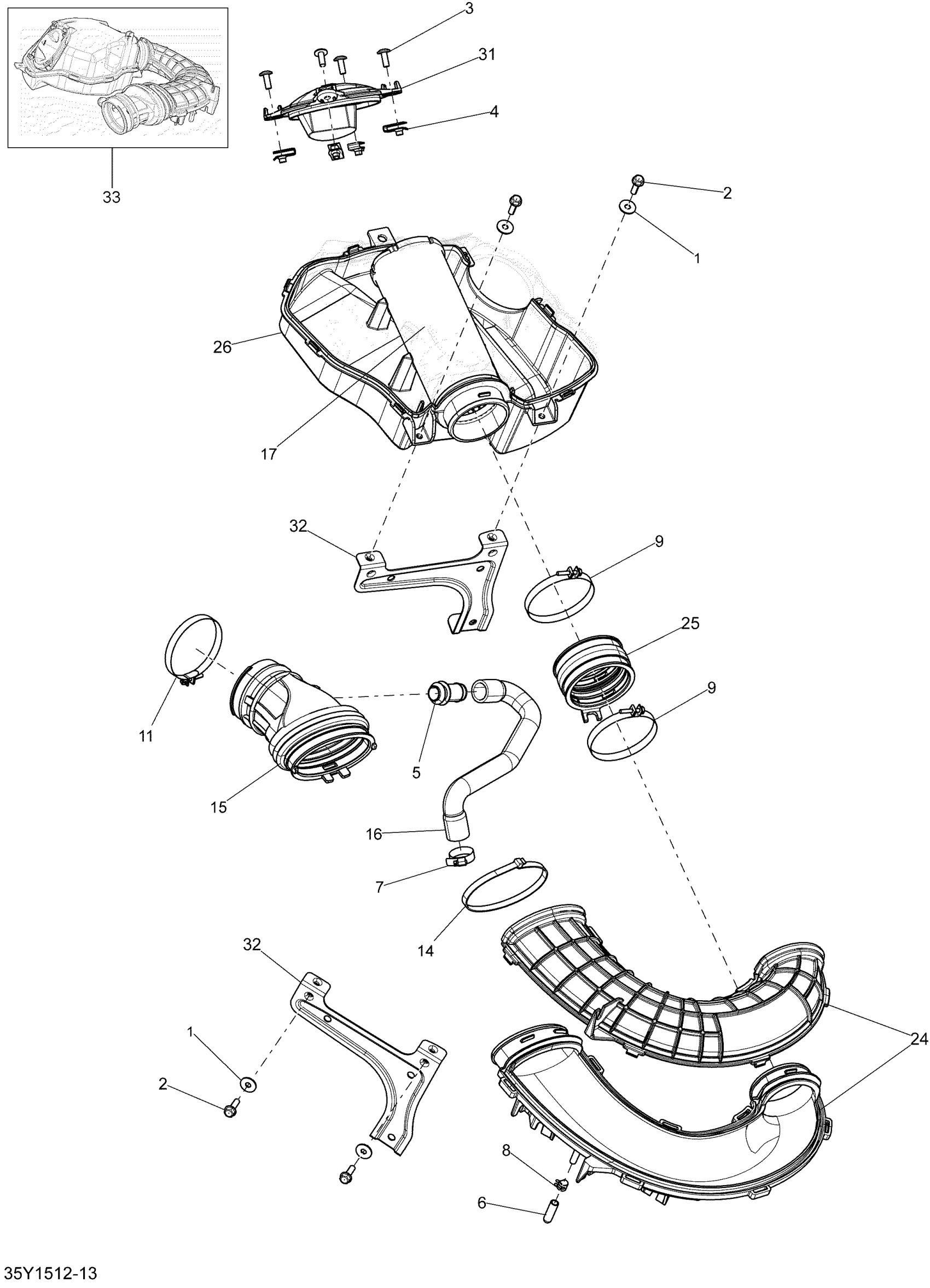

Can-Am Spyder F3 SM6, 2015 02- Air Intake _35Y1512 Diagram

Flat Washer M6, Stainless

Hex. Flange Screw M6 X 20, Scotch Grip

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Breather Valve

Cap Plug

Tridon Gear Clamp

Spring Clamp

Gemi Clamp

Gemi Clamp

Tie Rap

Air Intake Adaptor

Formed Hose

Air Filter

Not Available As Spare Part - Friction Washer

Intake Adaptor

Not Available As Spare Part - Friction Washer

Cover

Air Intake Bracket | Includes 50 to 50b

Air Intake Ass'y | Include: 3 to 6, 8, 9, 14, 15, 17 to 31
