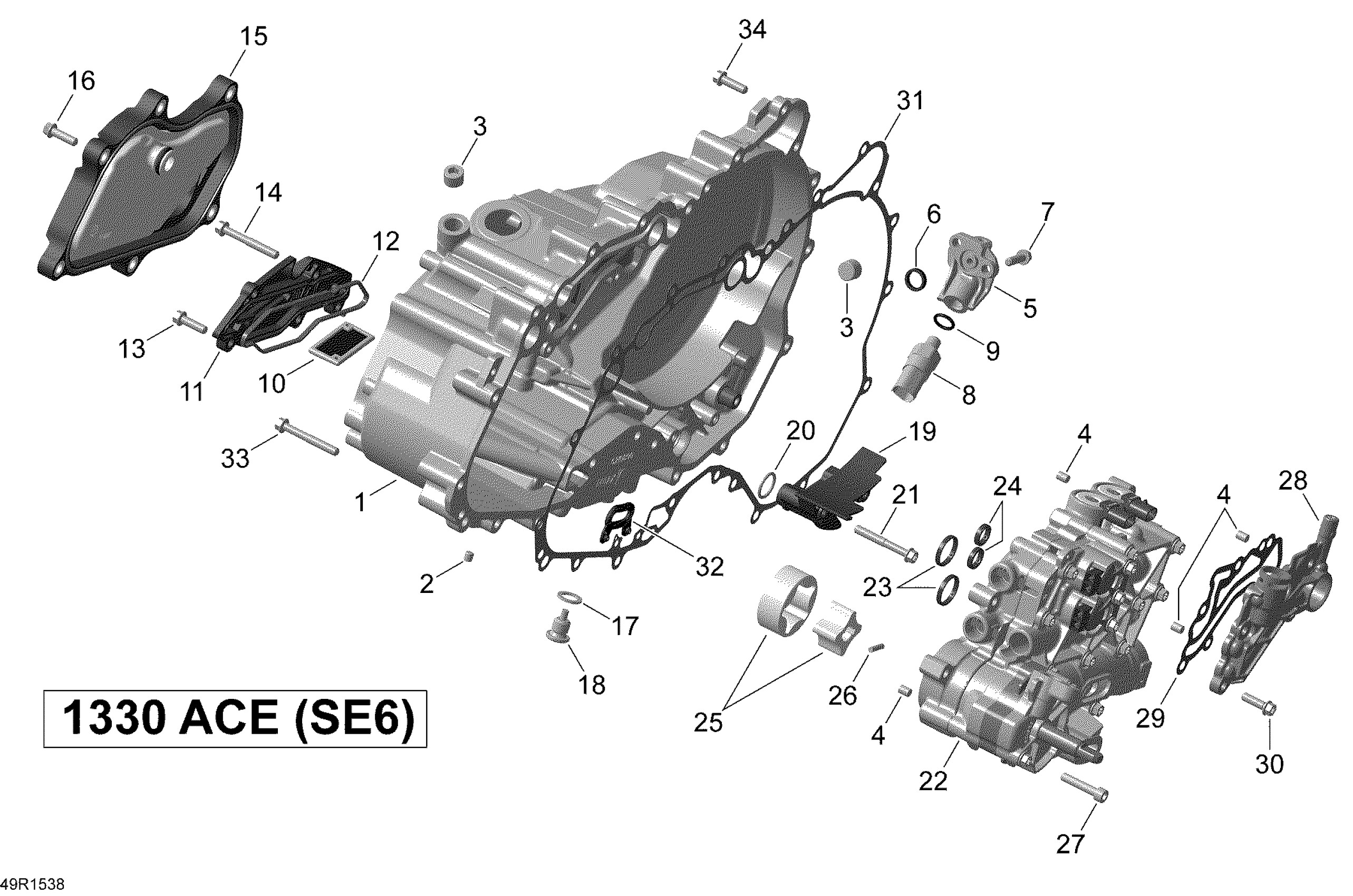

Can-Am Spyder F3 SE6, 2015 01- Clutch Cover _49R1538 Diagram

#

Description
Price

1

Clutch Cover

420212908

$561.49

2

PLUG SCREW M6 - Call your local BRP dealership

420841770

Unavailable

3

Plug Screw M14 X 1.5

420641308

$13.23

4

Center Pin

420232210

$8.26

5

Pressure Sensor Housing

420212175

$109.99

6

Gasket

420450310

$2.21

7

Torx Flange Screw M6 X 20

420440207

$3.06

8

Oil Pressure Sensor

420264166

$319.99

9

O-Ring

420450350

$20.99

10

Oil Sieve

420656990

$13.10

11

Oil Duct Cover

420210871

$69.99

12

Gasket

420250630

$11.64

13

Torx Flange Screw M6 X 20

420440207

$3.06

14

Torx Flange Screw M6 X 45

420440324

$0.98

15

Oil Filter Cover

420211156

$137.99

16

Torx Flange Screw M6 X 20

420440207

$3.06

17

Copper Washer

420250640

$0.98

18

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

19

Oil Guiding Plate

420224085

$19.19

20

O-Ring

420430220

$8.26

21

Torx Flange Screw M6 X 45

420440324

$0.98

22

Hydraulic Housing Ass'y

420210982

$2,564.99

23

Gasket

420450240

$2.43

24

Gasket

420450310

$2.21

25

Oil Pump Rotor

420456290

$73.99

26

Needle Pin

420232731

$4.01

27

Socket Head Screw M6 X 30

205063044

$1.69

28

VALVE HOUSING - Call your local BRP dealership

420211122

Unavailable

29

Gasket

420450290

$26.49

30

Torx Flange Screw M6 X 20

420440207

$3.06

31

Gasket Ass`y

420450032

$25.99

32

Gasket Ass`y

420450032

$25.99

33

Torx Flange Screw M6 X 45

420440324

$0.98

34

Torx Flange Screw M6 X 20

420440207

$3.06
